Home >> Kia >> 2008 >> Magentis (CANADA) L4-2.4L >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Accelerator Pedal Position Sensor

Accelerator Pedal Position Sensor

ACCELERATOR POSITION SENSOR (APS)

- Type: Variable Resister type

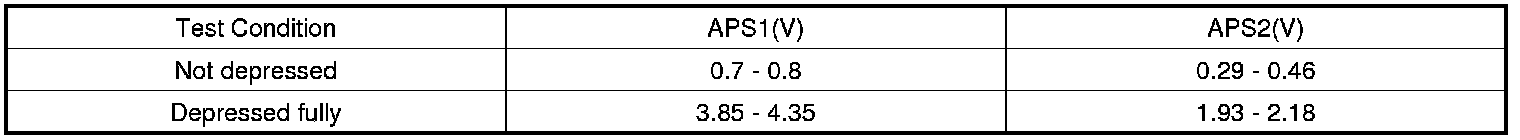

- Specification
