Brake Fluid Pressure Sensor/Switch: Description and Operation

DESCRIPTION

The pressure sensor(A) is connected to the master cylinder, when ESC is on operation, detecting the brake pressure in order to sense the user's braking intent.The pressure sensor(A) consists of two ceramic discs, one is fixed and the other movable, so that changes in pressure will modify the distance between the discs.(Max. measurable pressure is 200bar.)

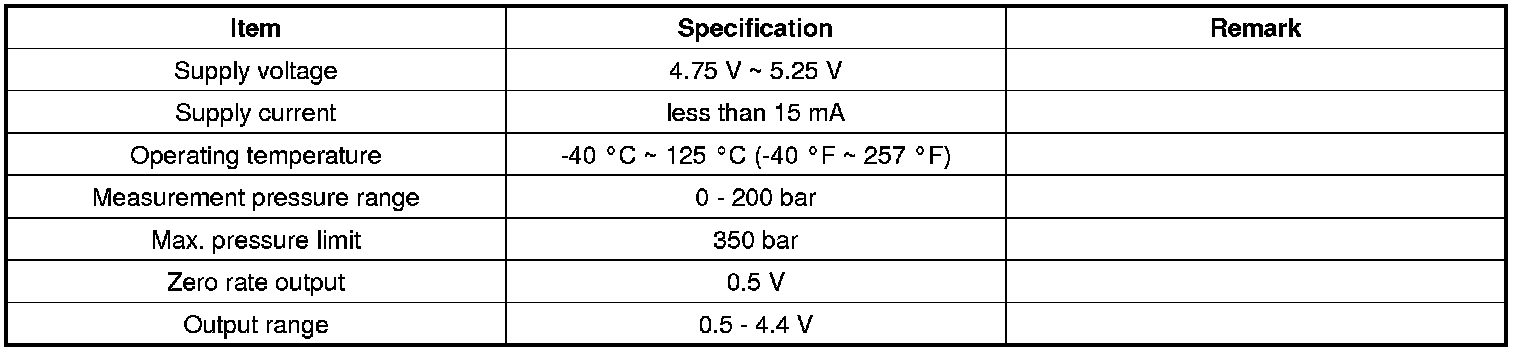

SPECIFICATIONS






CIRCUIT DIAGRAM





OUTPUT CHARACTERISTIC
