Component Tests and General Diagnostics





INSPECTION

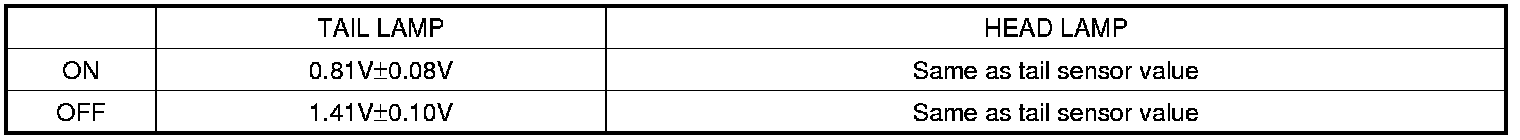

1. The Auto Light system will activate if the headlamp switch is in the AUTO position; the chart shows the ON/OFF thresholds of the system.









T1/T2 : 2.0 ± 0.2sec.
