Audio System

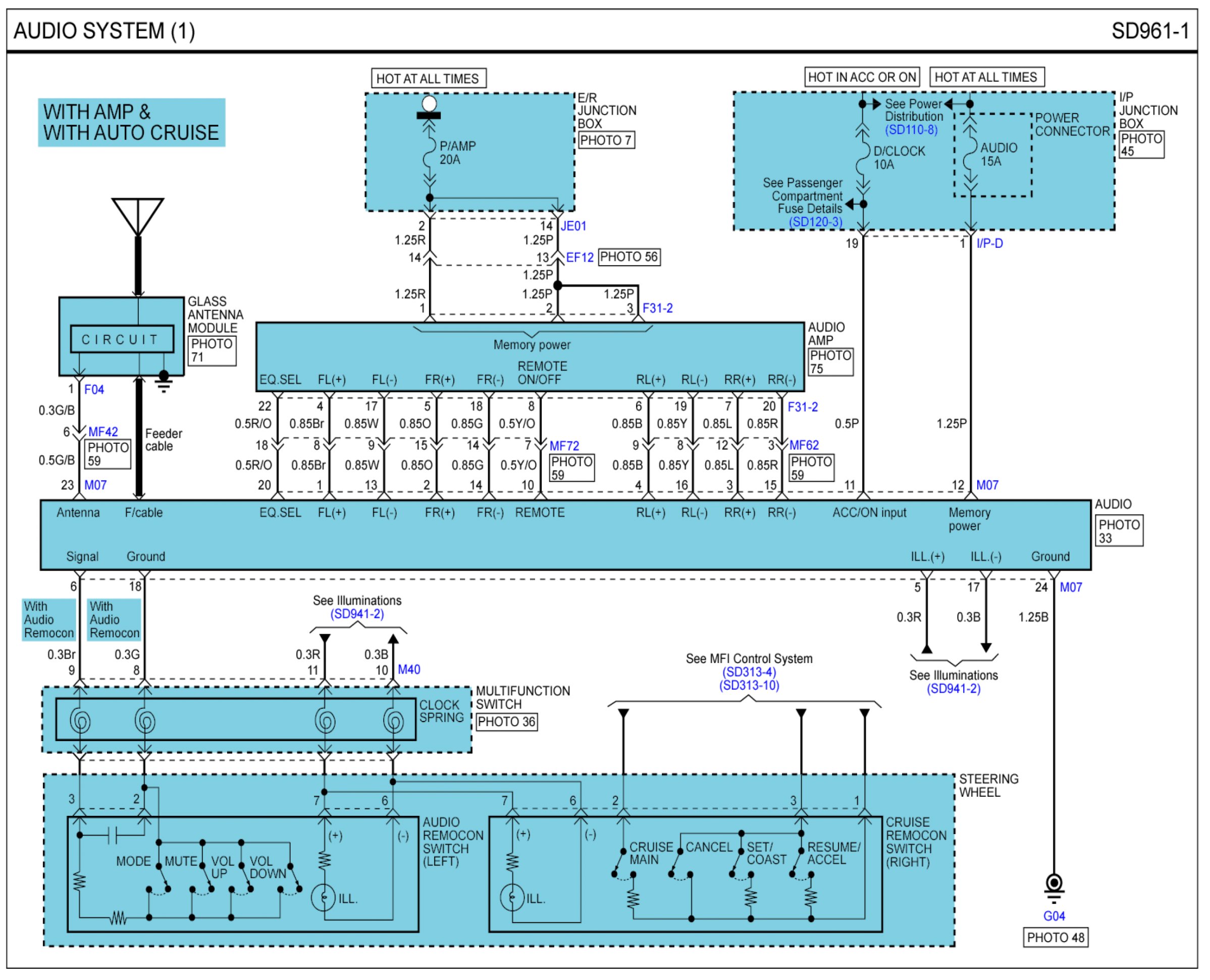

Audio System (1) (Built Before 7/18/2007):

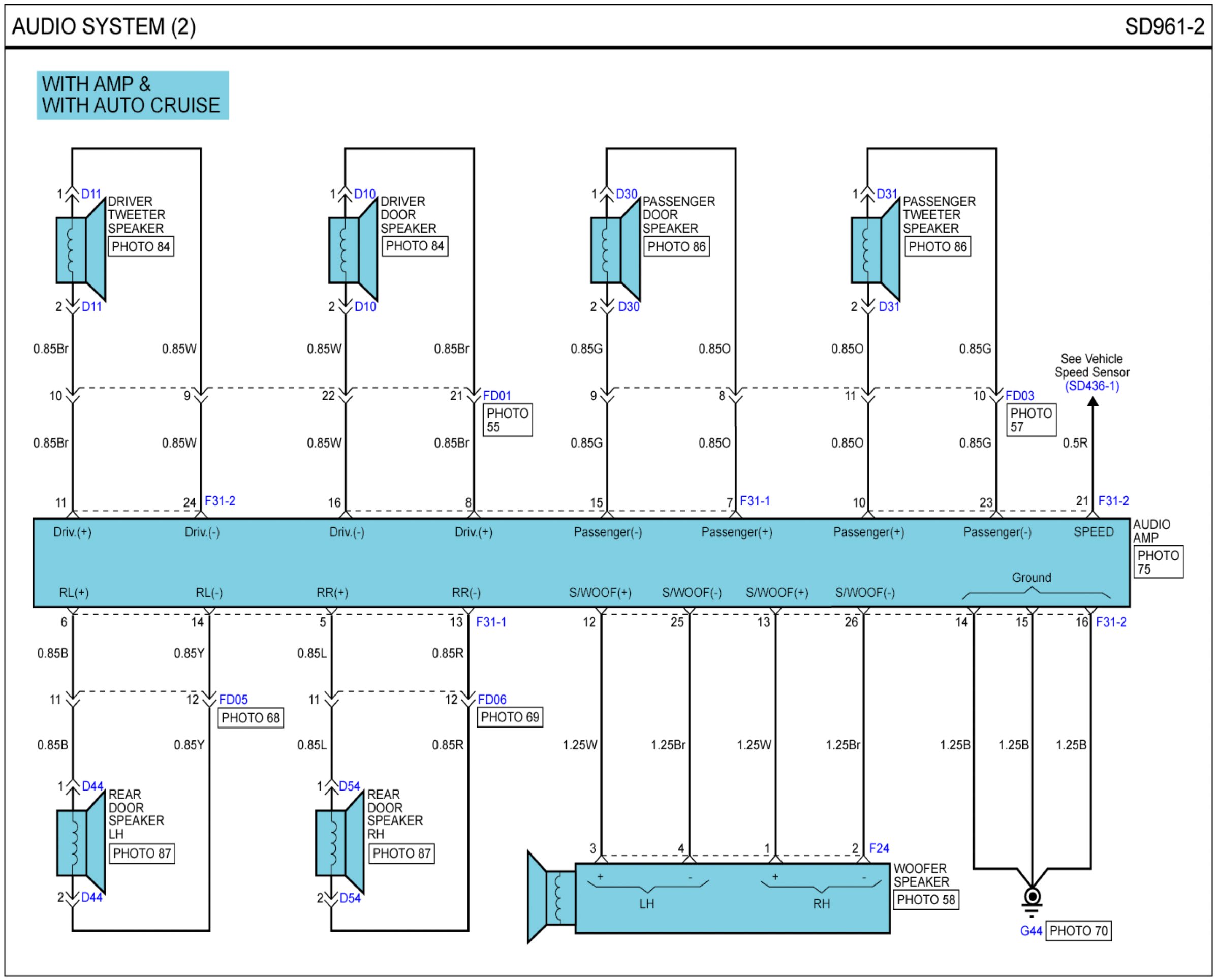

Audio System (2) (Built Before 7/18/2007):

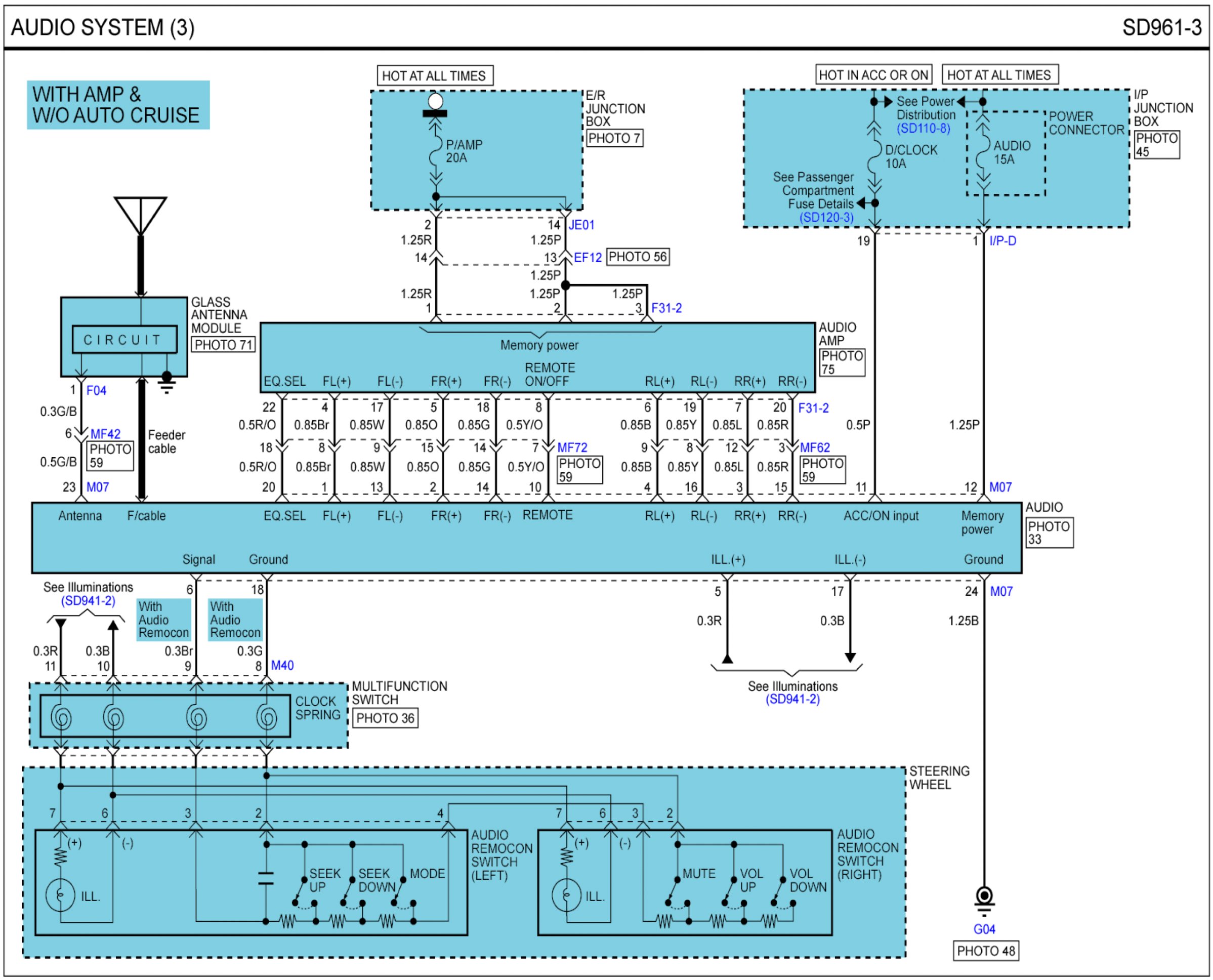

Audio System (3) (Built Before 7/18/2007):

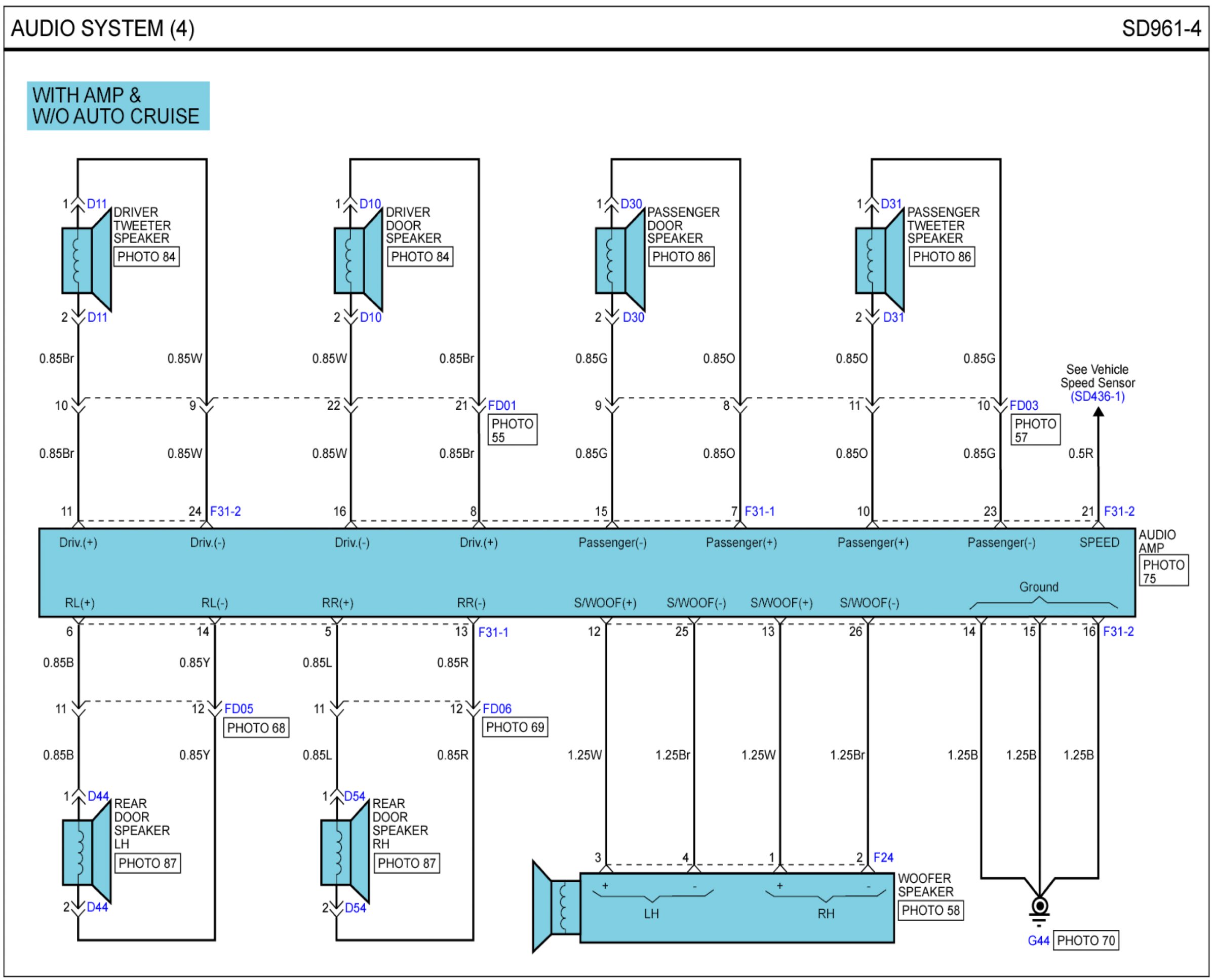

Audio System (4) (Built Before 7/18/2007):

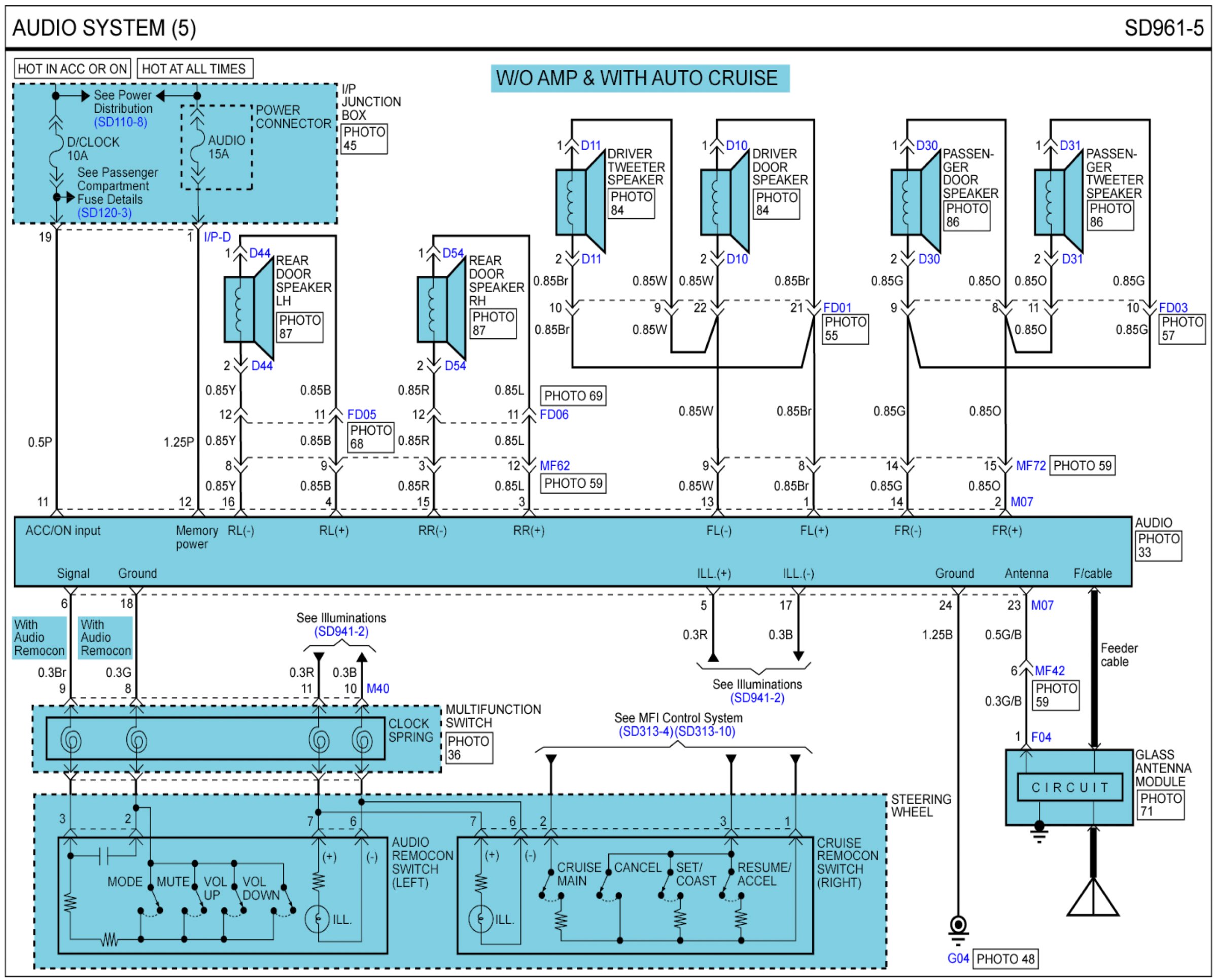

Audio System (5) (Built Before 7/18/2007):

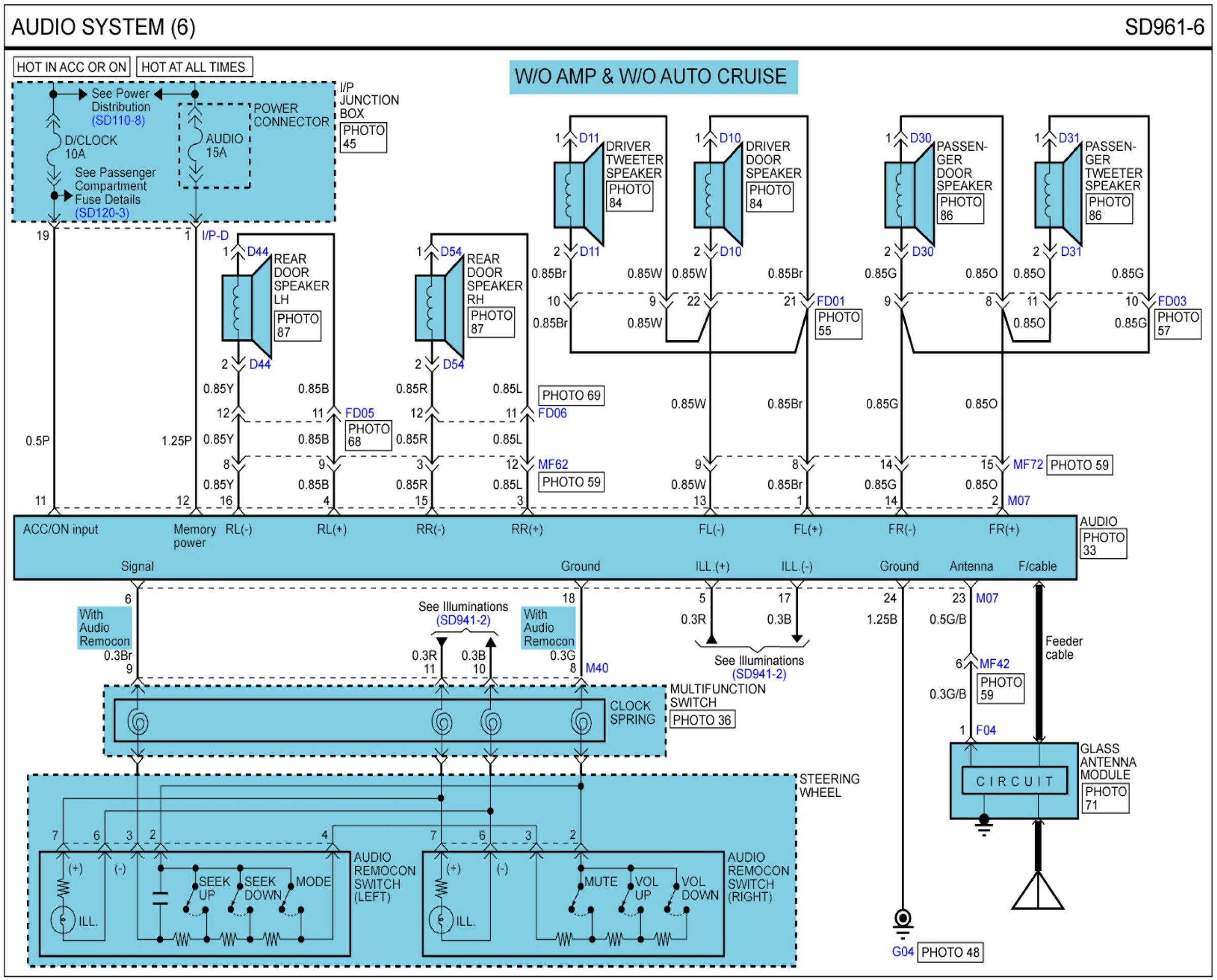

Audio System (6) (Built Before 7/18/2007):

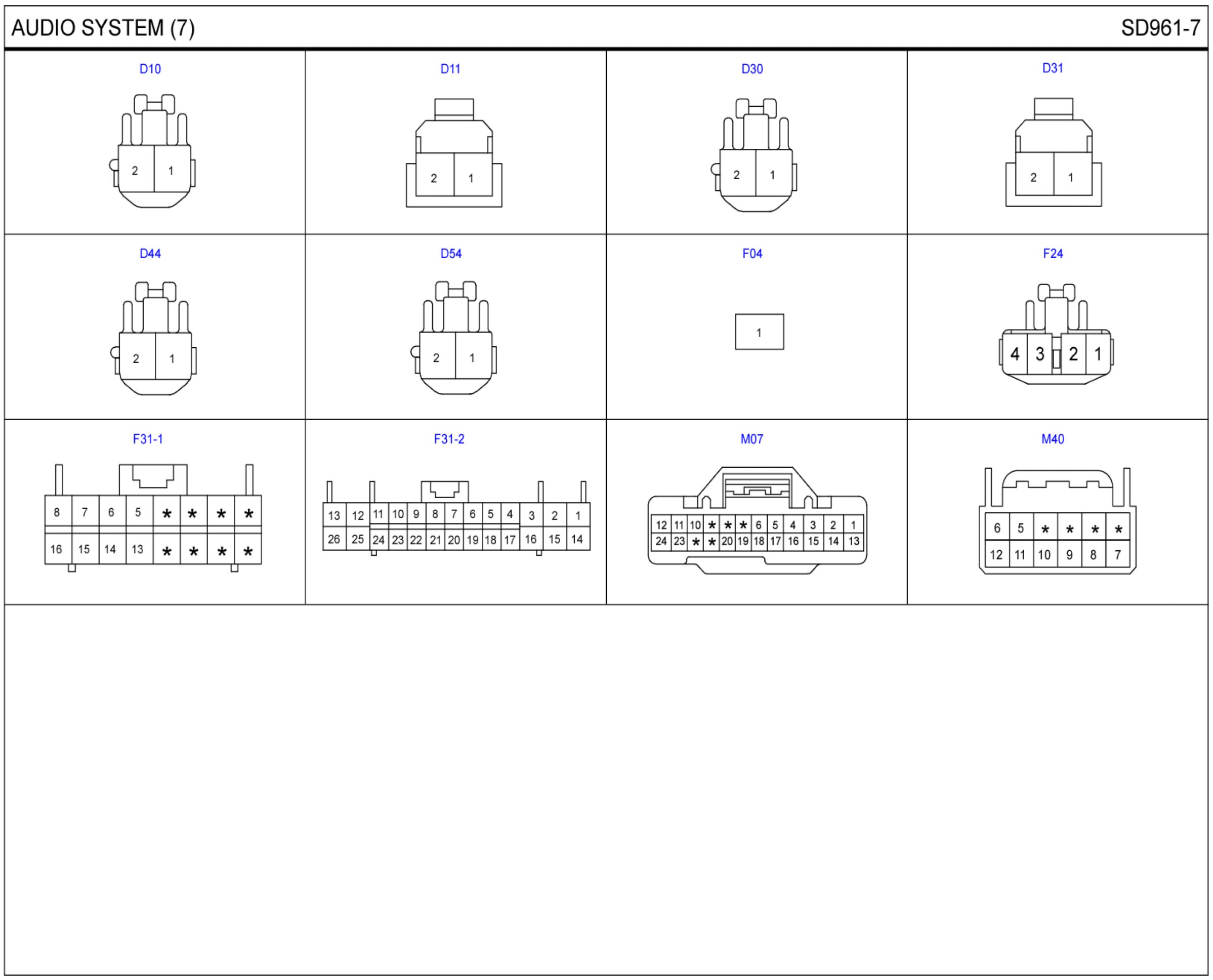

Audio System (Built Before 7/18/2007) Connector Pin Outs:

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Component Locations

Connector Views: The Connector Pin Out Views for connectors shown on these diagrams can be found on the Connector Pin Out images that follow most sets of system diagrams.
