Home >> Kia >> 2008 >> Magentis (CANADA) L4-2.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> Remote Control, Audio - Stereo

Remote Control, Audio - Stereo

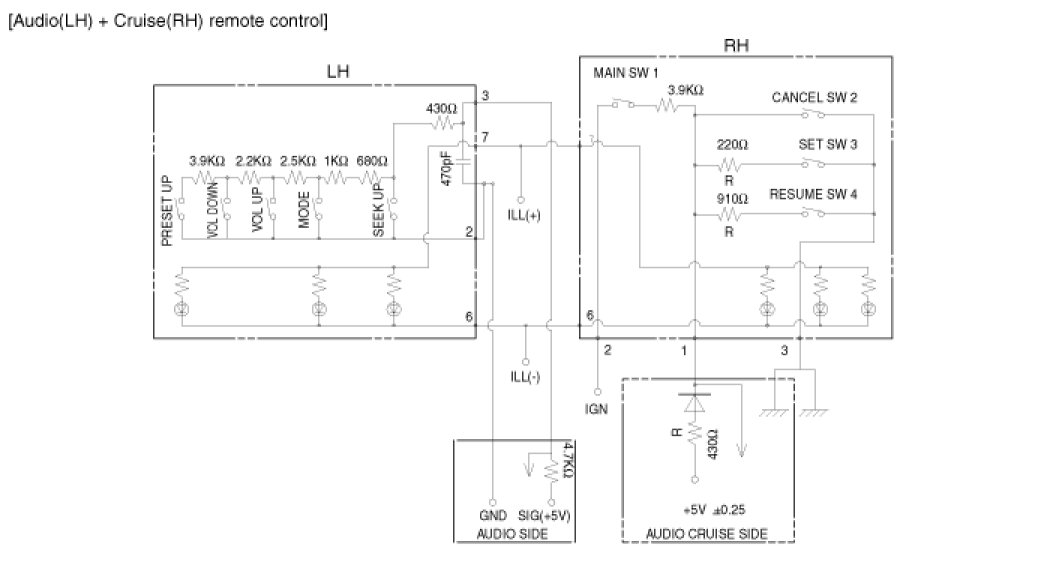

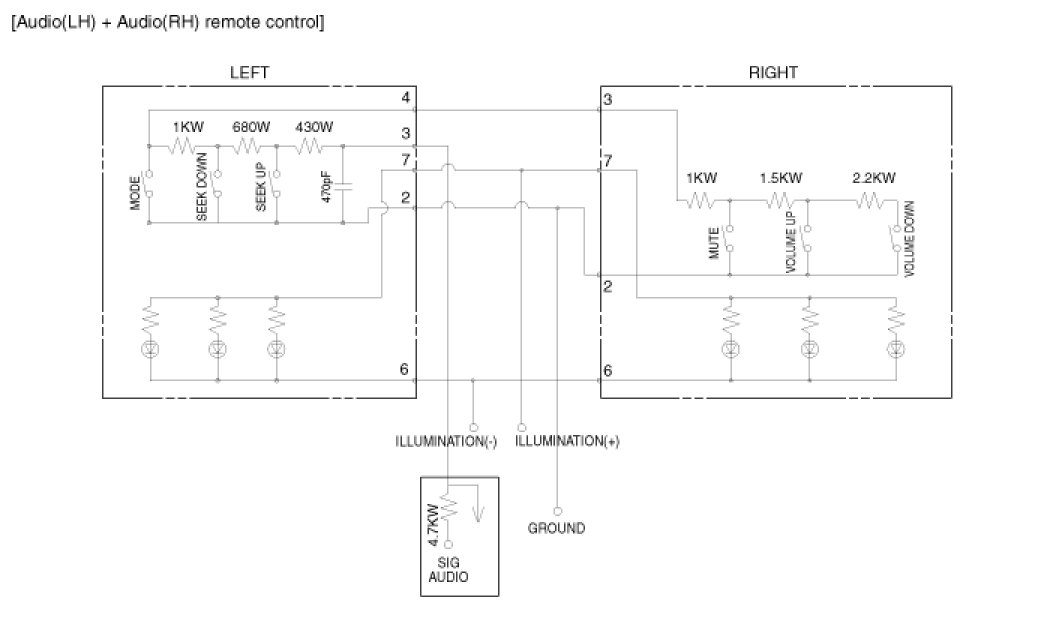

CIRCUIT DIAGRAM
