Vehicle Speed Sensor

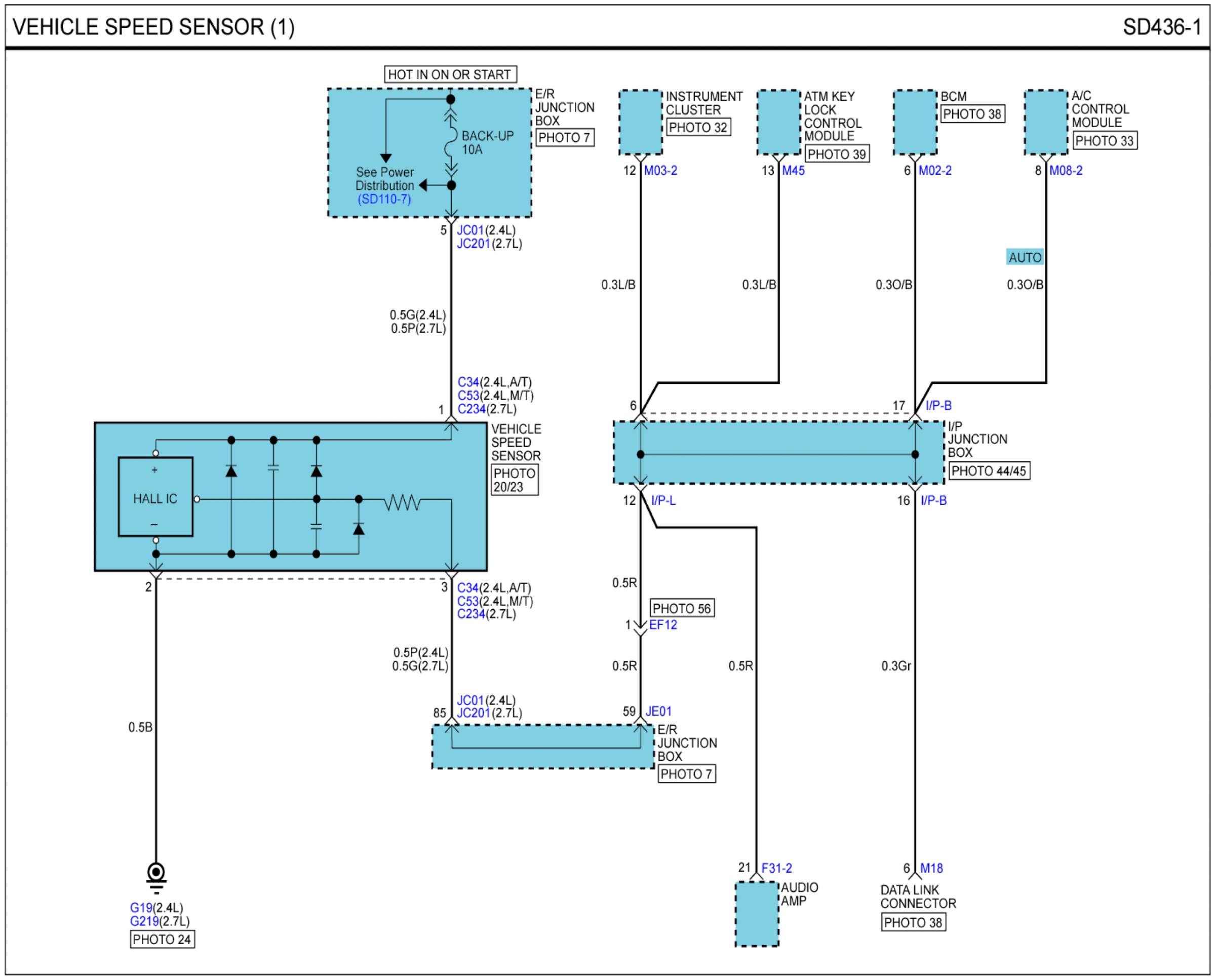

Vehicle Speed Sensor (1) (Built before 7/18/2007):

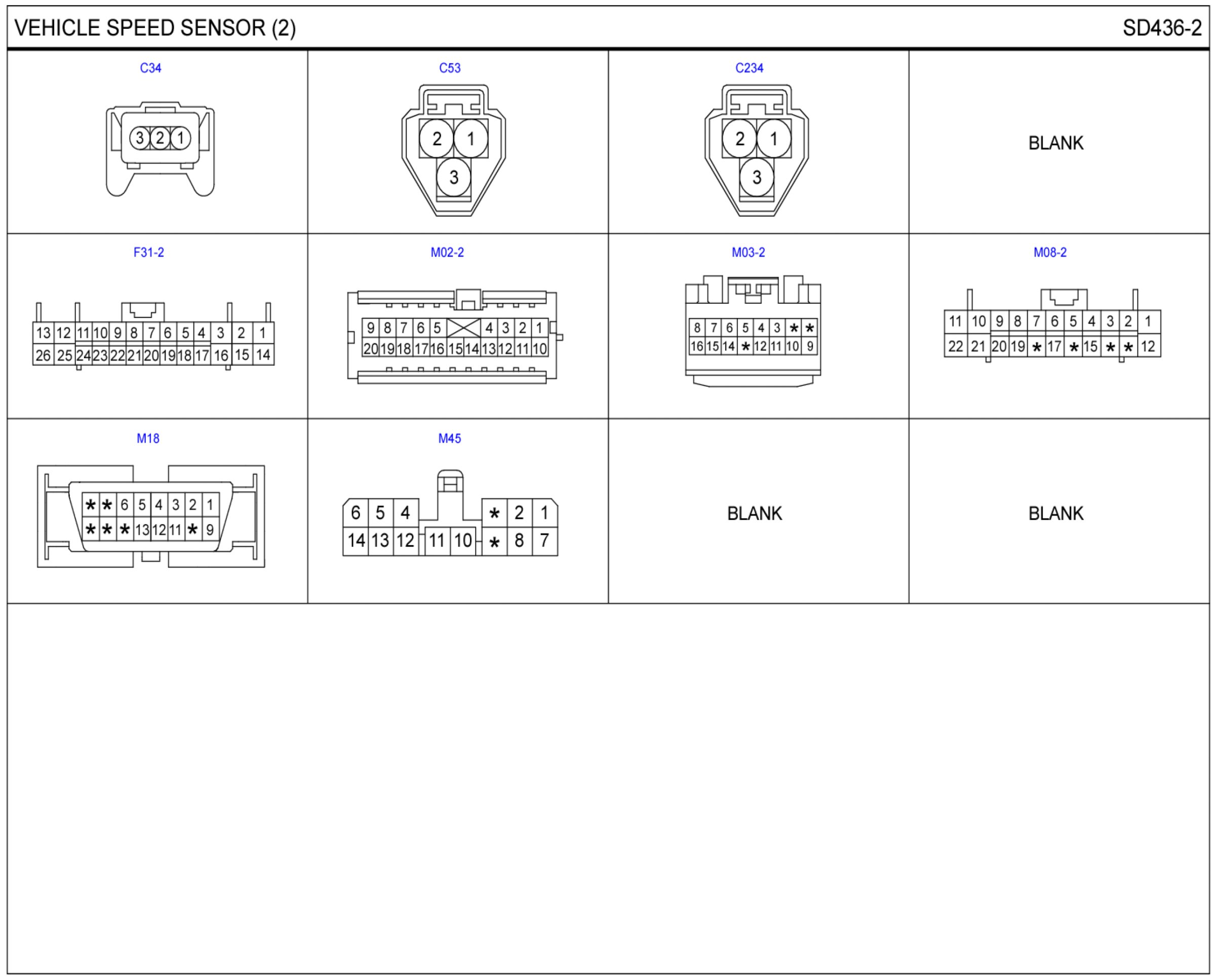

Vehicle Speed Sensor (Built before 7/18/2007) Connector Pin Outs:

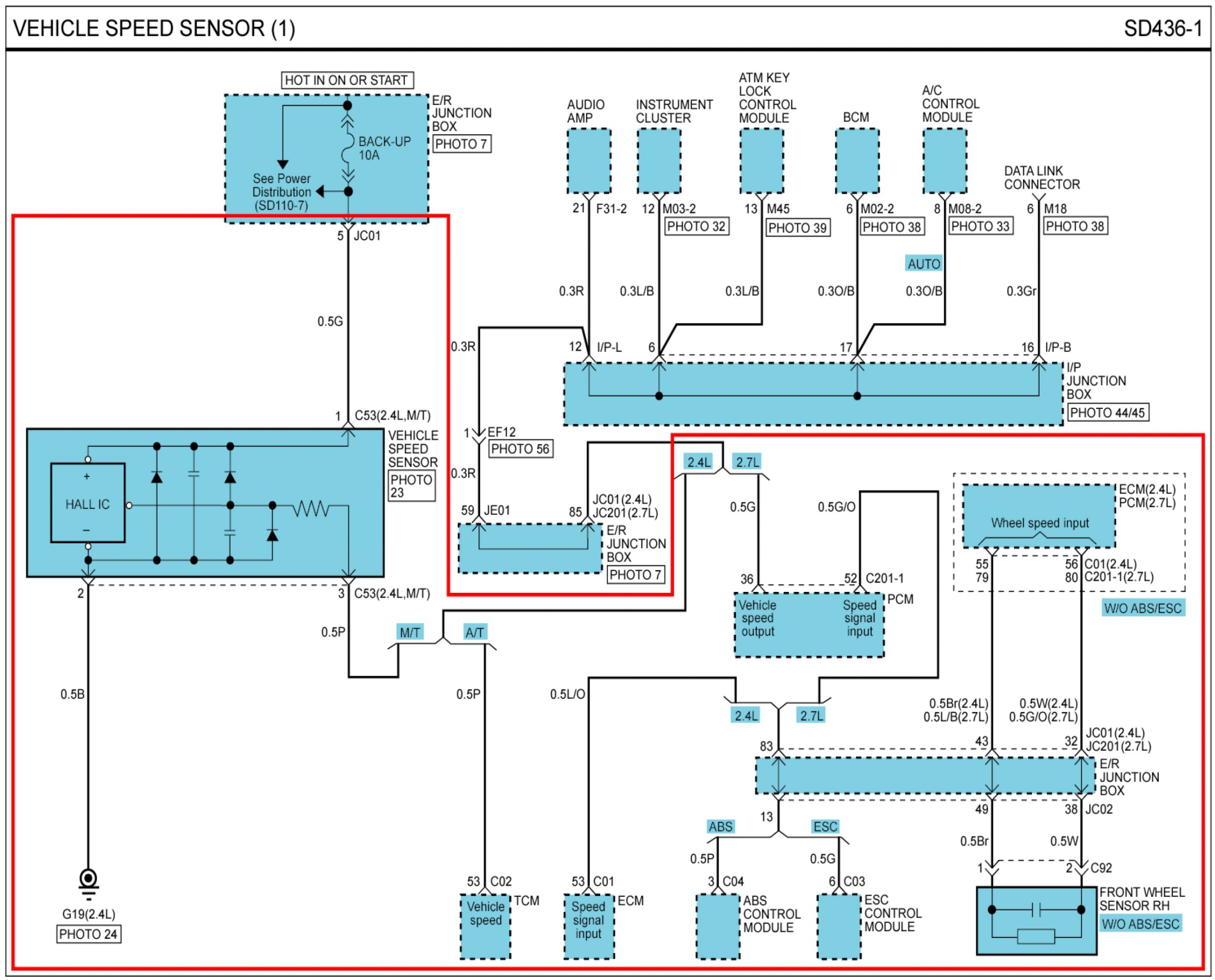

Vehicle Speed Sensor (1) (Built on or After 7/18/2007):

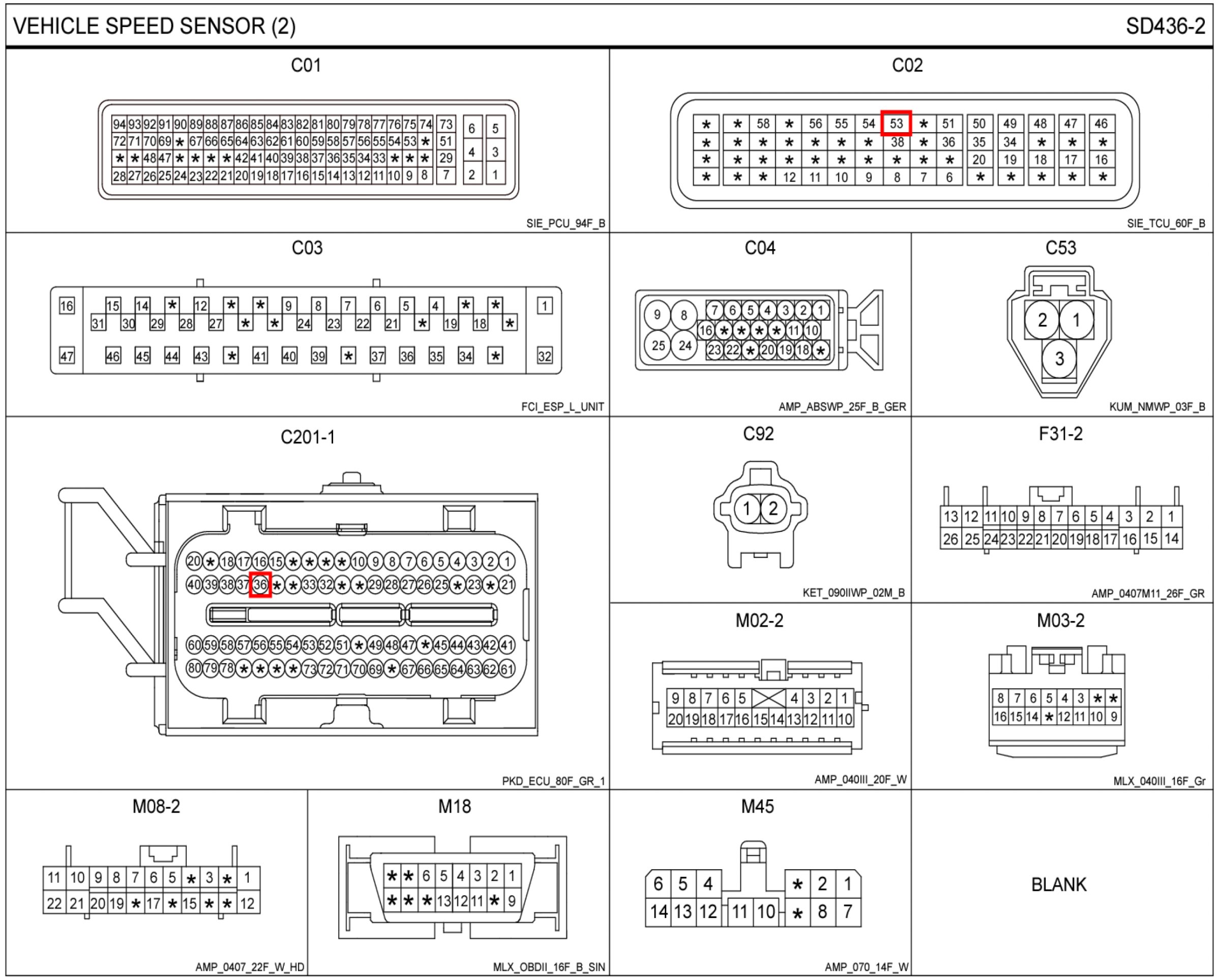

Vehicle Speed Sensor (Built on or After 7/18/2007) Connector Pin Outs:

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Component Locations

Connector Views: The Connector Pin Out Views for connectors shown on these diagrams can be found on the Connector Pin Out images that follow most sets of system diagrams.
