Repair Procedures

REMOVAL

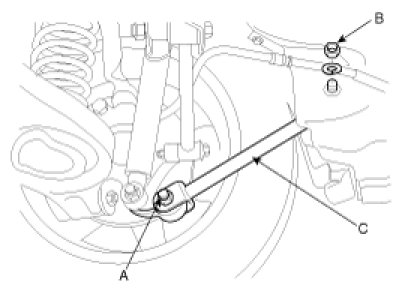

1. Remove the bolt (A) holding the trailing arm to carrier.
2. Remove the cam bolt and trailing arm (C) by loosening the nut (B).






INSTALLATION

1. Install the trailing arm (C) to body and tighten the bolt and nut (B).

Tightening torque Nm (kgf.m, lb-ft):
140 - 160 (14.0 - 16.0, 101 - 116)


2. Connect the trailing arm (C) with the carrier and then tighten the bolt (A).

Tightening torque Nm (kgf.m, lb-ft):
140 - 160 (14.0 - 16.0, 101 - 116)
