Reassembly

Reassembly

1. Install the oil pump switch.
2. Install the flow control valve spring, valve and connector in the pump body.

NOTE:
Apply a thin coat of power steering fluid to all parts including the oil seal and O-ring.

3. Install the guide bracket and nut.

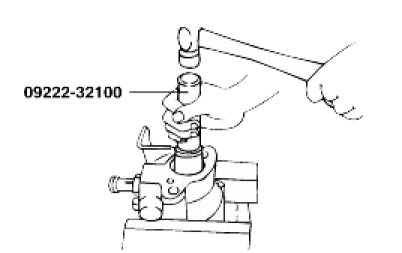

4. Using special tool (09222-32100), install the oil seal into the pump body.




5. Gently insert the shaft assembly and install the snap ring.

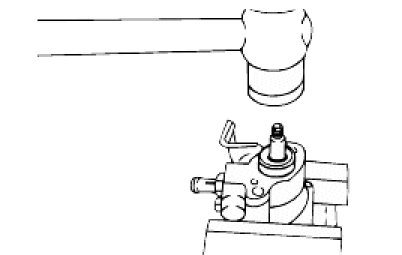

6. Install the pump pulley and woodruff key in place.

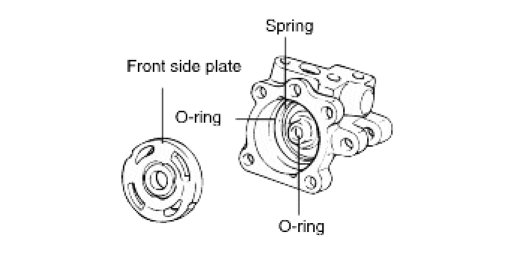

7. Install the spring and the inner and outer O-rings.
8. Install the front side plate.




9. Insert the pins into the pin grooves of the front housing, and then install the cam ring, paying attention to its direction.

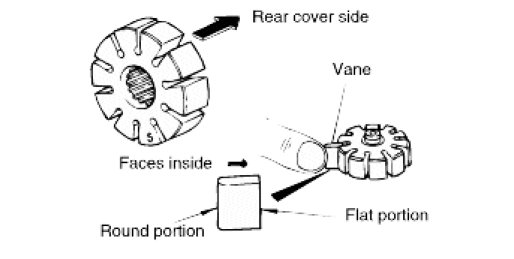

10. Install the rotor with its punch marked side facing to-wards the front side plate.
11. Install the vane plates with the round end facing out-ward.




12. Install the gasket and rear cover.
13. Tighten the suction connector.
