Disassembly

Disassembly

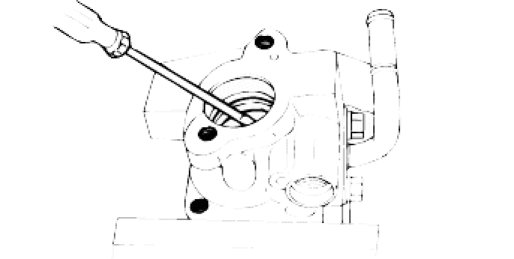

1. Remove the suction pipe and the O-ring from the oil pump.




2. Remove the rear cover with the gasket.

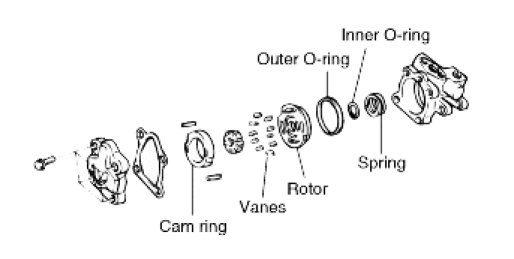

3. Remove the cam ring.
4. Remove the rotor and vanes.
5. Remove the front side plate.

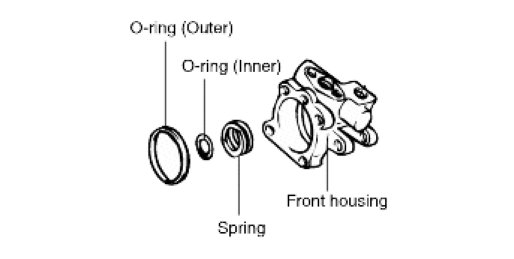

6. Remove the inner and outer O-ring.
7. Remove the spring.

NOTE:
When assembling, use a new gasket and O-ring.

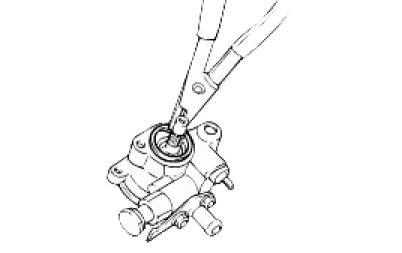

8. Remove the oil seal.

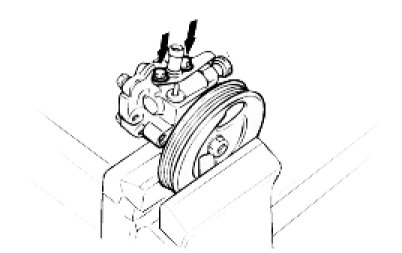

9. Pull off the pulley shaft and bearing by using a plastic hammer.




10. Remove the oil seal from the oil pump body.

NOTE:
When assembling, use a new oil seal.





11. Remove the guide bracket and nut.

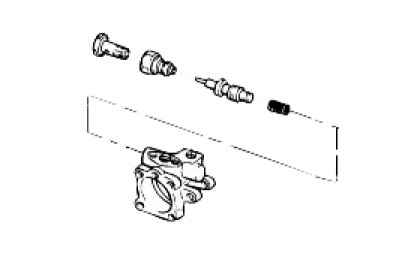

12. Remove the connector from the oil pump body, and then remove the flow control valve and flow control spring.
13. Remove the O-ring from the connector.

CAUTION:
Do not disassemble the flow control valve.





14. Remove the oil pump switch.
15. Take out the spring and the spool.
16. Remove the O-ring from the oil pump switch.
