Axle Shaft Assembly

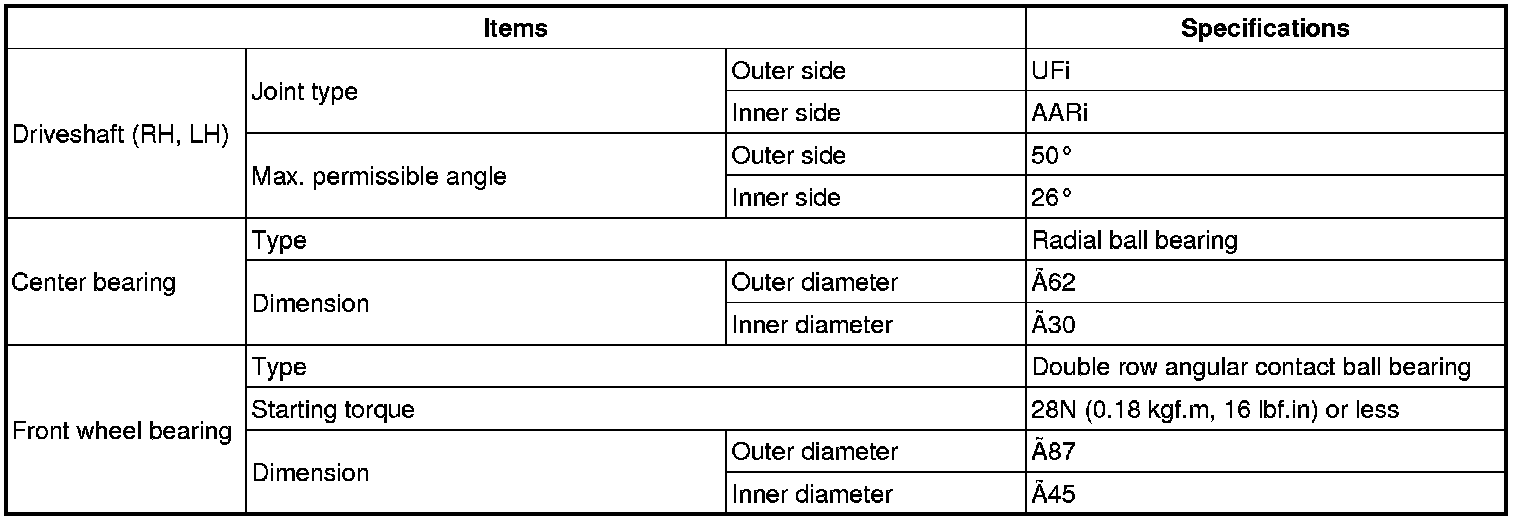

SPECIFICATIONS





NOTE:
Inner side : On Transaxle side
Outer side : On Tire side
Ufi : Under Cut Free improved (GKN)
AARi : Angular Adjusted Roller improved (GKN)

TIGHTENING TORQUE






CAUTION:
Replace self-locking nuts with new ones after removal.
