Air Bag Systems: Testing and Inspection

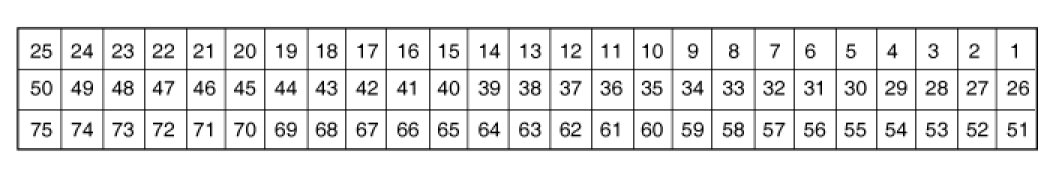

SRSCM CONNECTOR TERMINAL (DEPOWERED)

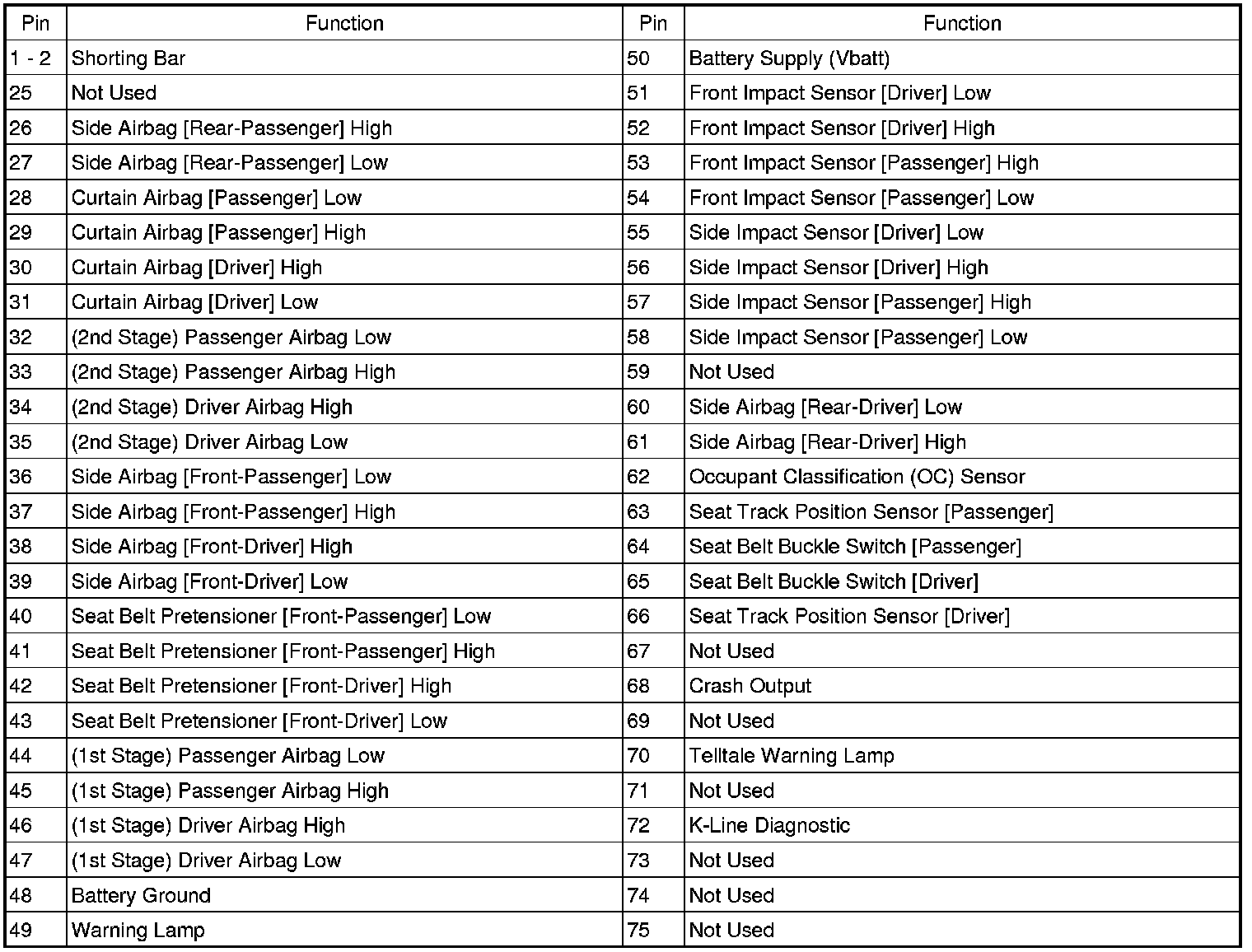

SRSCM HARNESS CONNECTOR
