Electrical Diagrams






CIRCUIT DIAGRAM

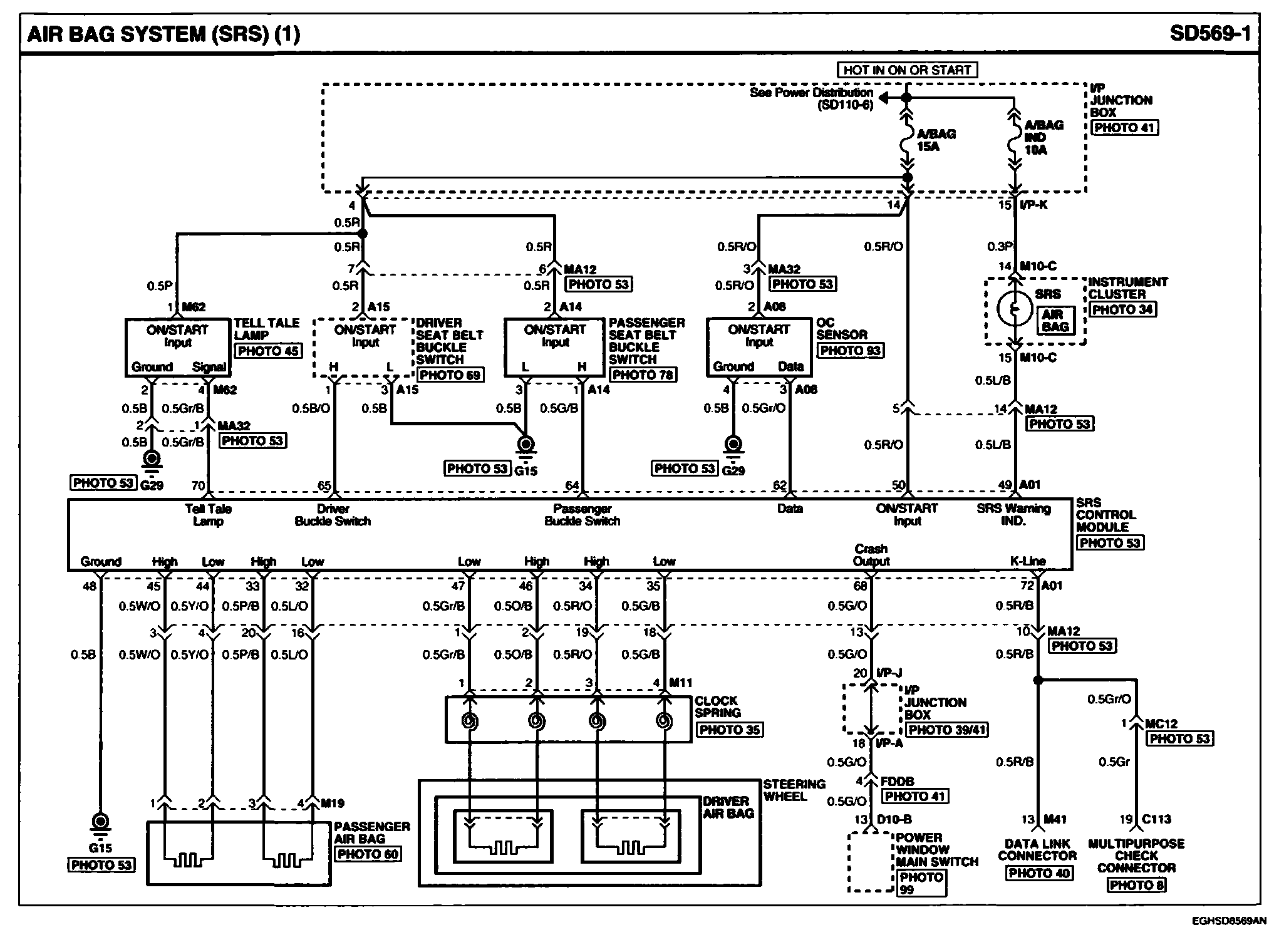

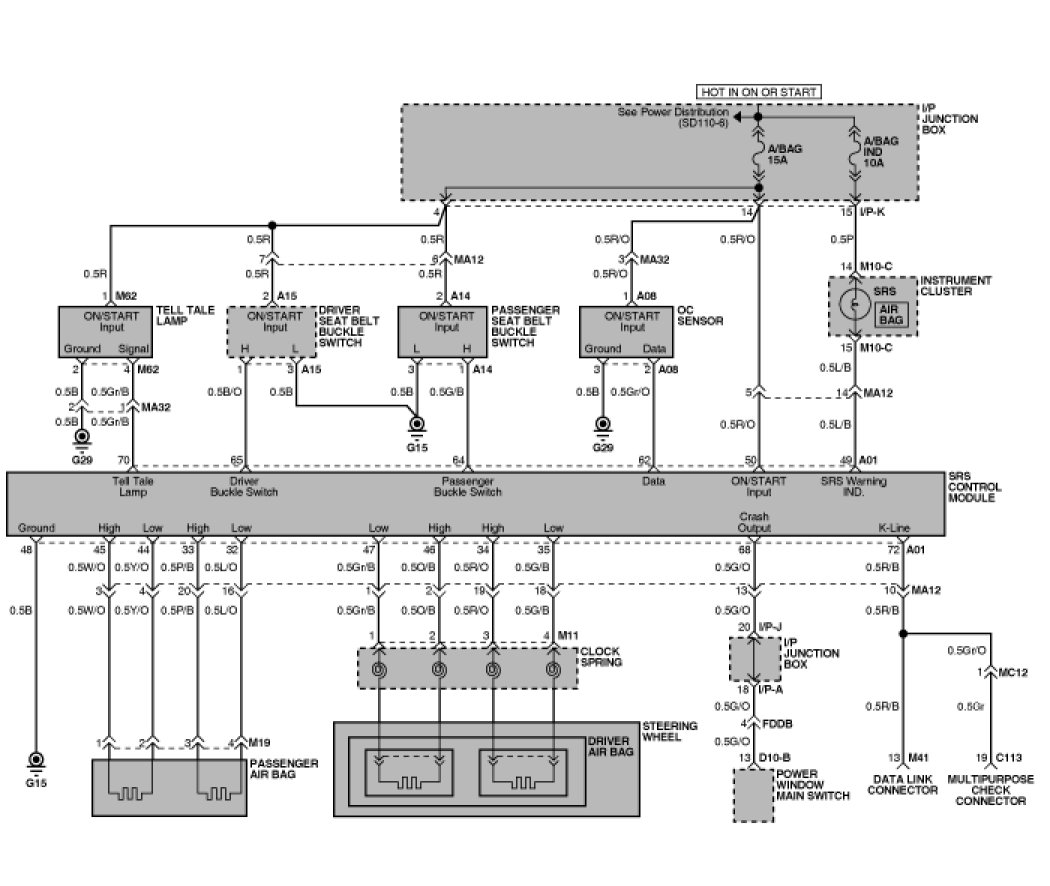

Air Bag System (SRS) (1):

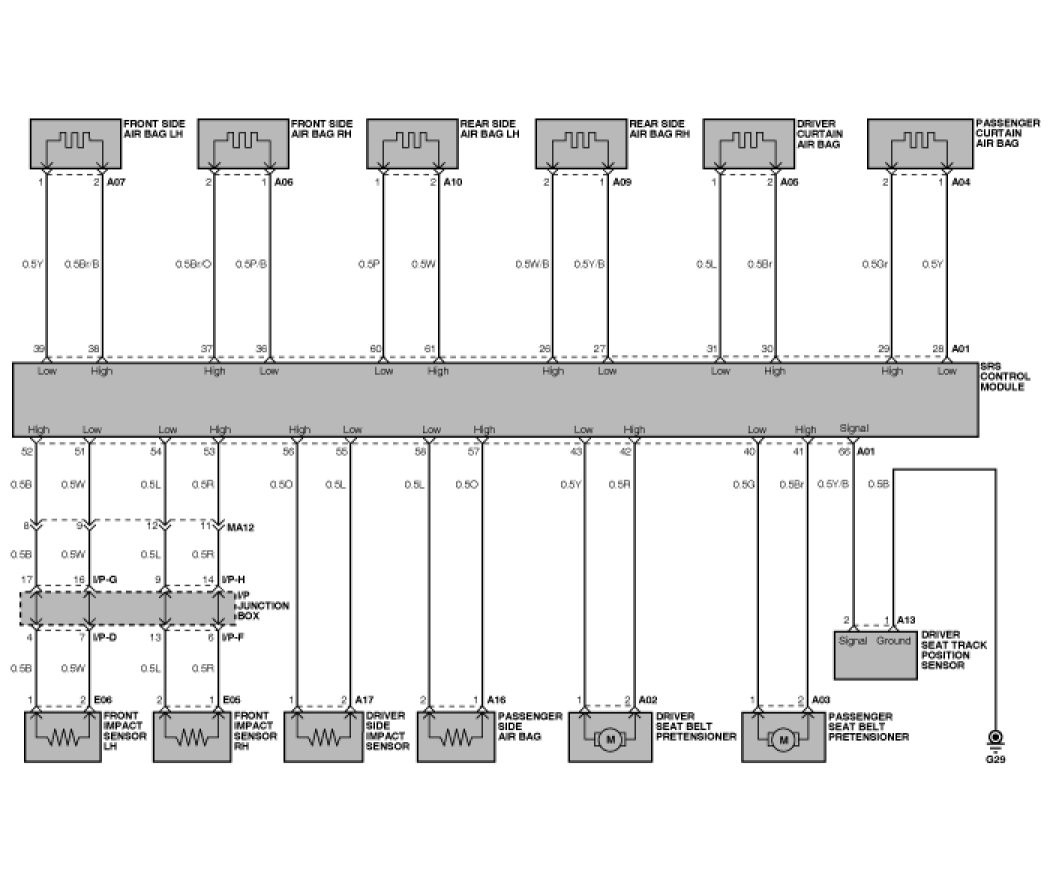

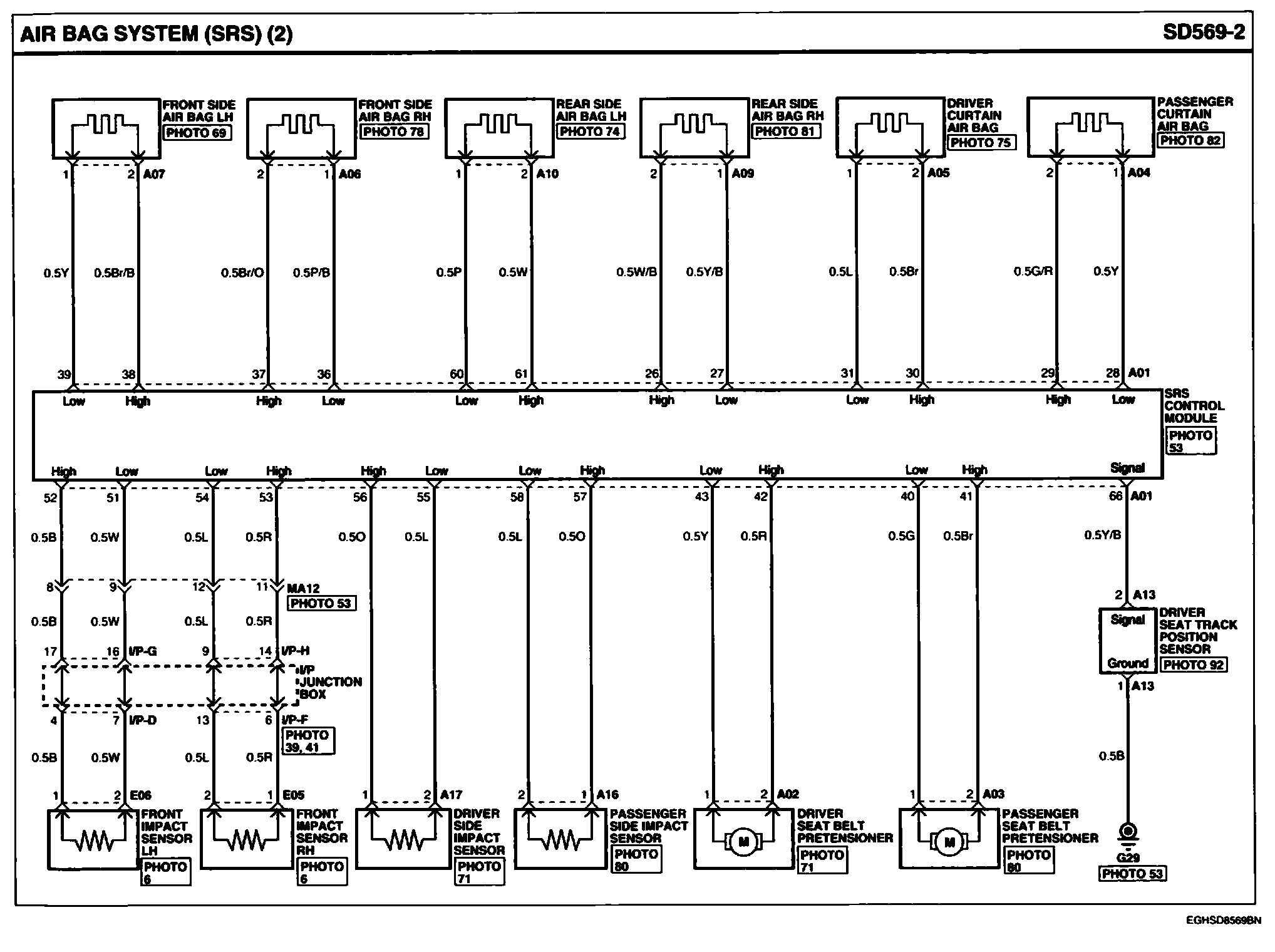

Air Bag System (SRS) (2):

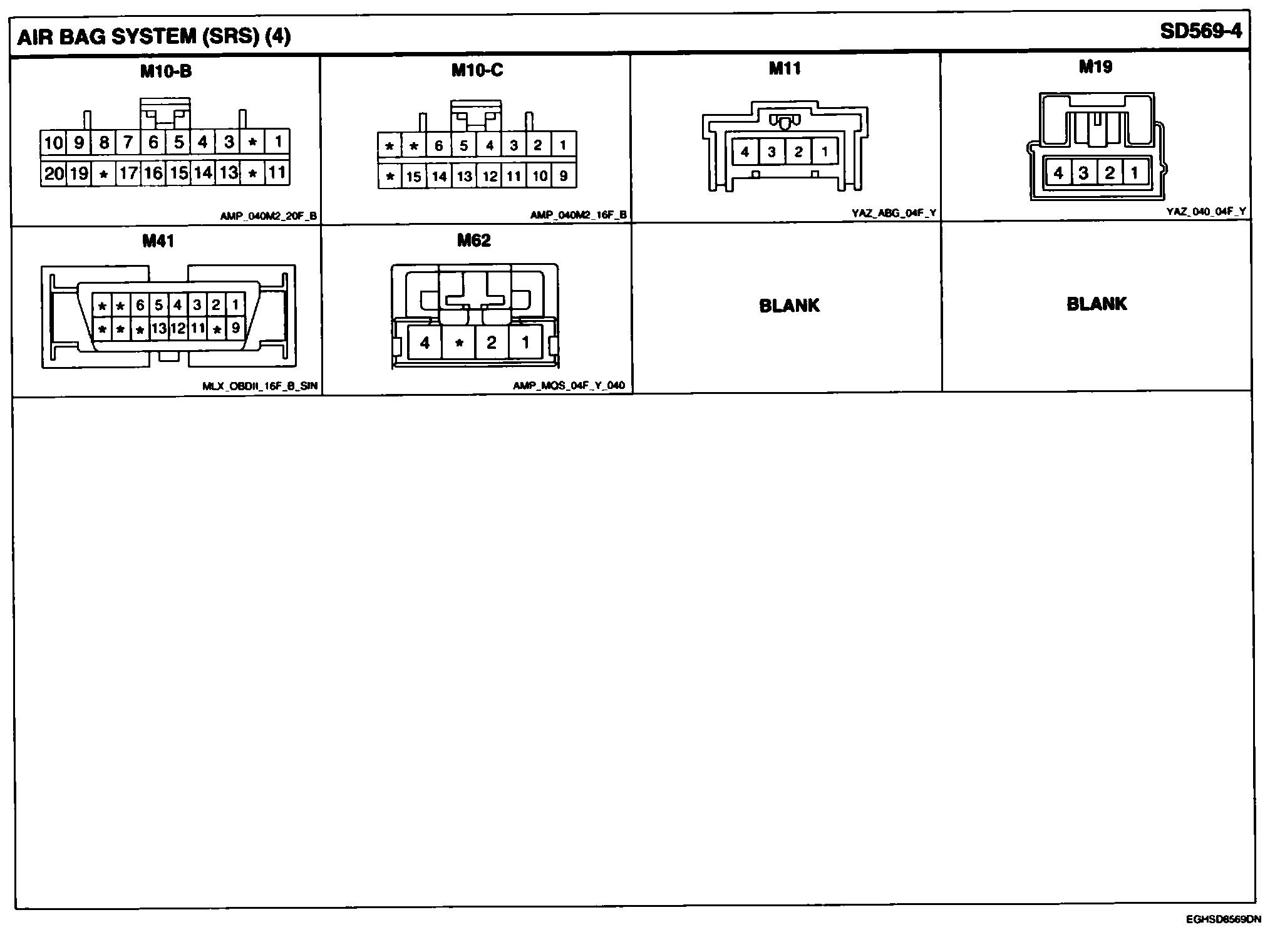

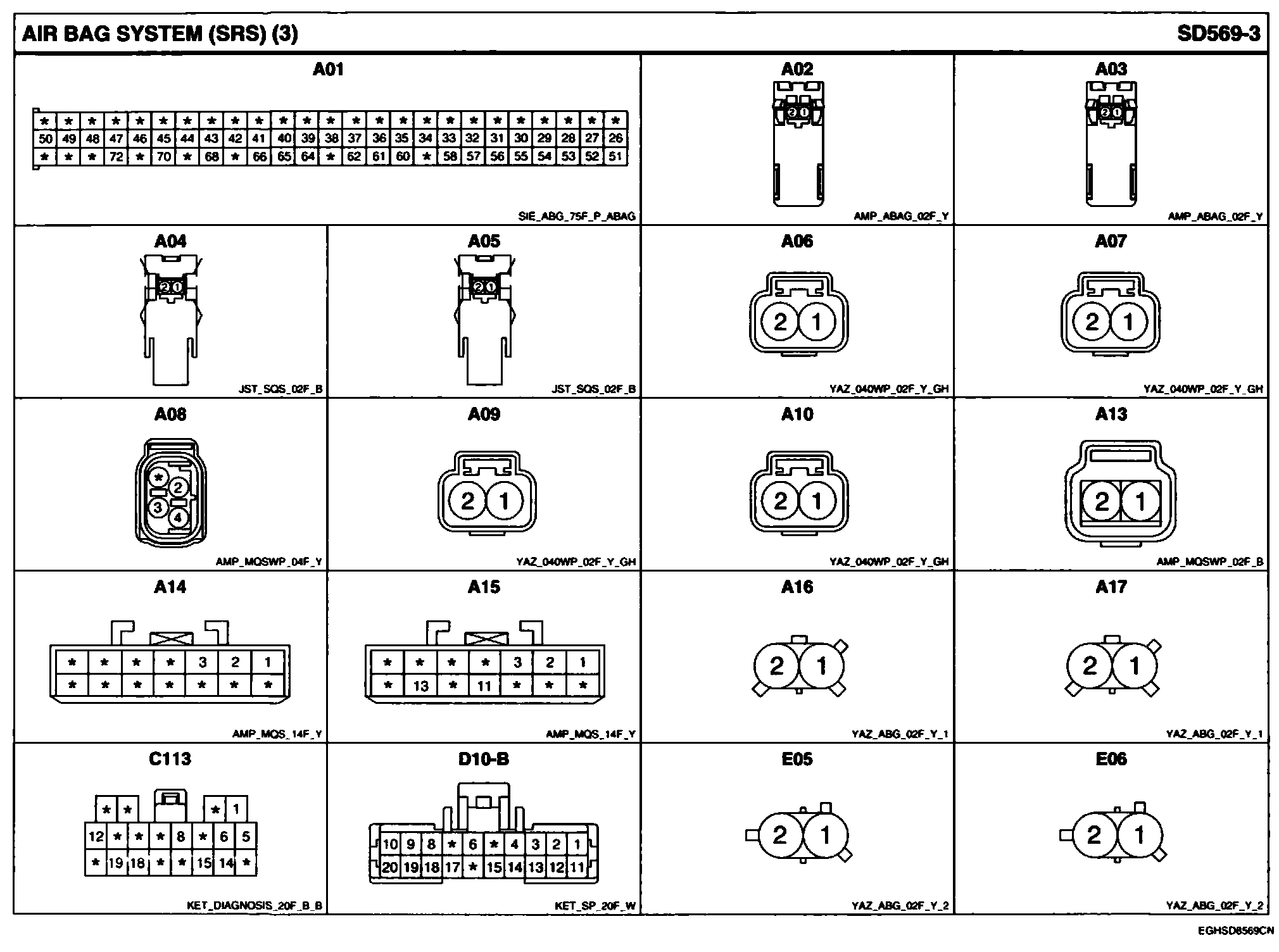

Air Bag System (SRS) Connector Pin Outs:




Air Bag System (SRS) Connector Pin Outs:
