Repair Procedures

REMOVAL


CAUTION:
- Never attempt to disassemble or repair the airbag module.
- Do not drop the airbag module or allow contact with water, grease or oil. Replace it if a dent, crack, deformation or rust is detected.
- The airbag module should be stored on a flat surface and placed so that the pad surface is facing upward. Do not place anything on top of it.
- Do not expose the airbag module to temperature over 93°C(200°F).
- An undeployed airbag module should only be disposed in accordance with the procedures.
- Never attempt to measure the circuit resistance of the airbag module (squib) even if you are using the specified tester. If the circuit resistance is measured with a tester, accidental airbag deployment will result in serious personal injury.
- Whenever the SAB is deployed it should be replaced with a new one assembled with an extension wire. The squib is melt down if the SAB is deployed making the extension wire useless.

1. Disconnect the negative (-) cable from battery and wait for at least three minutes.




2. Remove the ignition key from the vehicle.
3. Remove the driver and passenger seat .

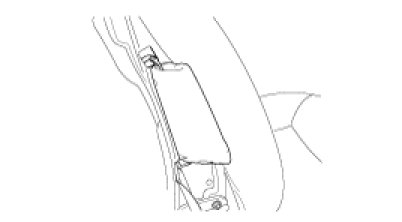

4. Disconnect the FSAB connector.
5. Unscrew the FSAB mounting nut and remove the FSAB modules.





REAR SIDE AIRBAG (RSAB)
1. Disconnect the negative (-) cable from battery and wait at least three minutes.




2. Remove the ignition key from the vehicle.
3. Remove the rear seat cushion.
(1) Release the seat cushion stopper.




(2) Remove the seat cushion mounting bolts (2).




(3) Disconnect the seat cushion connector.

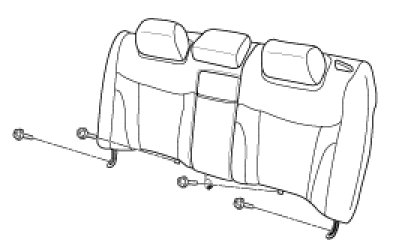

4. Remove the rear seatback.
(1) Unscrew the seatback mounting bolts (4)




(2) Disconnect the seatback connector and RSAB connector.
(3) Remove the seatback stopper.






INSTALLATION


CAUTION:
Be sure to install the harness wires so that they are not pinched or interfering with other parts.


NOTE:
- Do not open the lid of the side airbag cover.
- Use a new mounting nuts when you replace a side airbag.
- Make sure that the seat-back cover is installed properly. Improper installation may prevent the proper deployment.

1. Disconnect the negative (-) cable from battery and wait for at least three minutes.




2. Remove ignition key from the vehicle.
3. Place a Side Airbag (SAB) on the seat back-frame and tighten the side airbag mounting nuts.
4. Install the new seat-back cover.
5. Install the seat assembly, then connect the Side Airbag (SAB) harness connector.
6. Reconnect the battery negative cable.
7. After installing the Side Airbag (SAB), confirm proper system operation:
A. Turn the ignition switch ON; the SRS indicator light should blink for about six times and then go off.
8. Recline and slide the front seat forward fully, make sure the harness wires are not pinched or interfering with other parts.
