Fuel Filler Neck: Service and Repair

REMOVAL

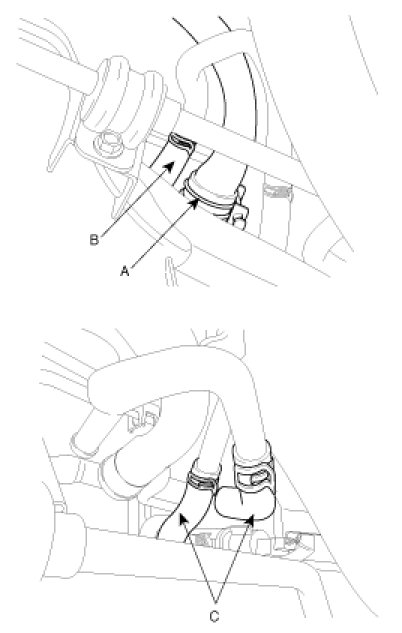

1. Disconnect the fuel filler hose (A), the ventilation hose (B) and the canister vacuum hoses (C).




2. Open the fuel filler door, unscrew the filler-neck assembly mounting screw (A).




3. Remove the rear-left wheel & tire and wheel house cover.

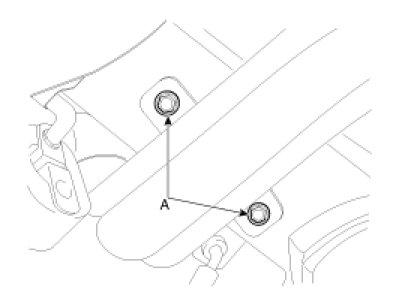

4. Remove the filler-neck assembly after unscrewing the bracket mounting bolt (A).






INSTALLATION

1. Install the filler-neck assembly according to the reverse order of "REMOVAL" procedure.
