Fog/Driving Lamp: Adjustments

Front fog lamp

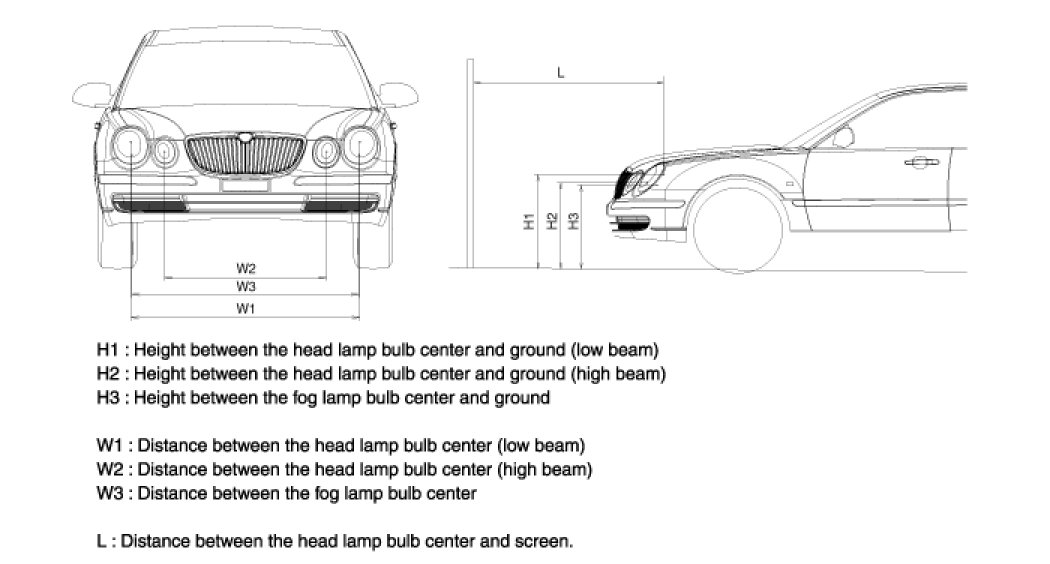

The front fog lamps should be aimed as the same manner of the head lamps aiming.
With the front fog lamps and battery normal condition, aim the front fog lamps by turning the adjusting gear.

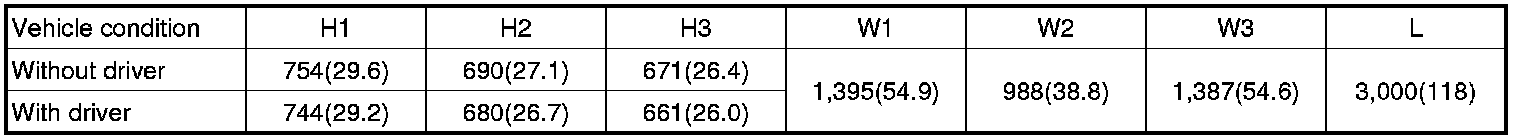

Unit : mm (in)

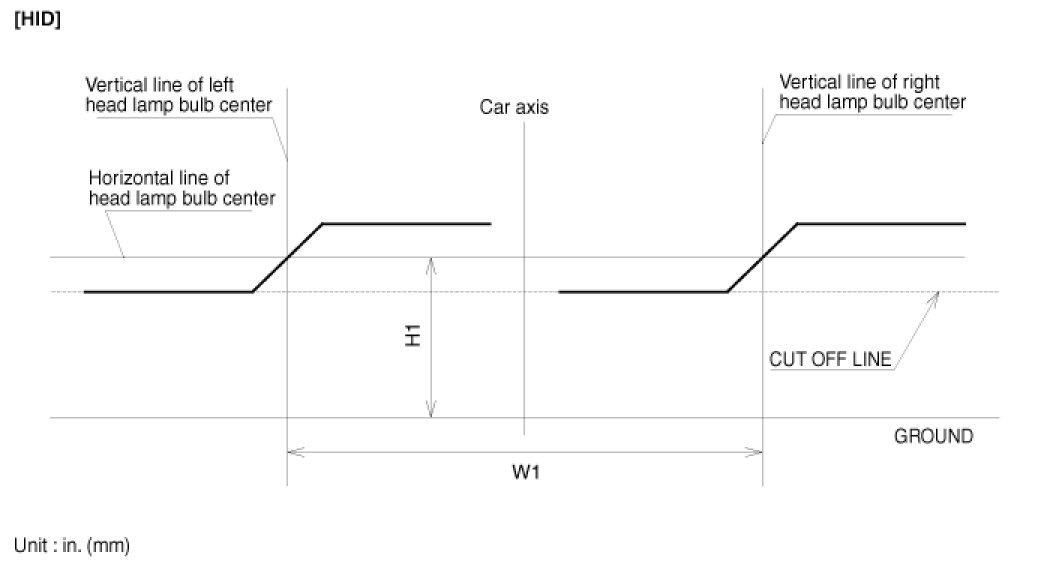

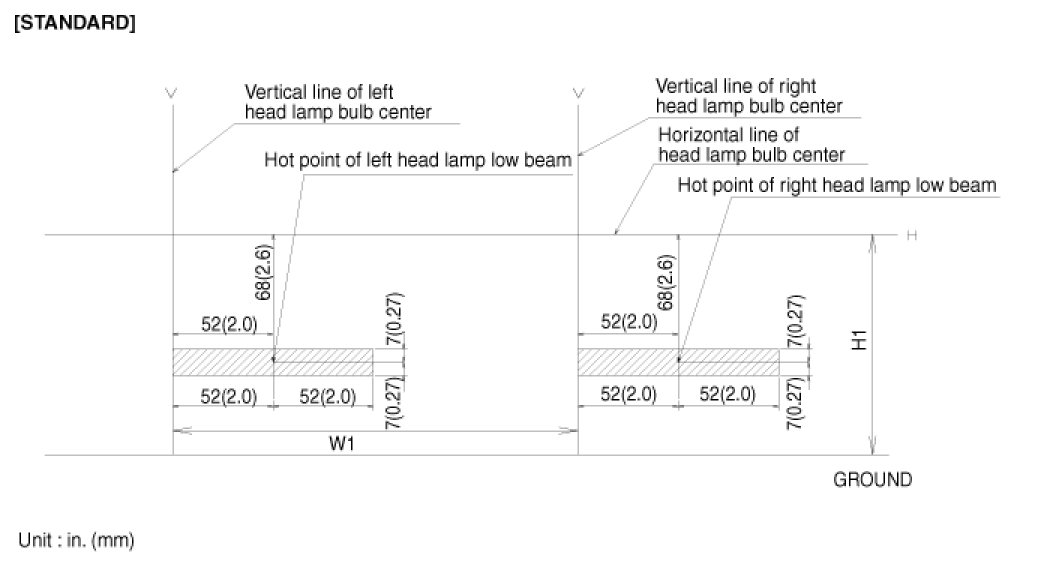

1. Turn the low beam on with driver.
The cut-off line should be projected in the allowable range (shaded region).
In case of equipping with the manual leveling device, set the leveling device switch on the "O" position.
In case of equipping with the auto leveling device, set the initialization by using the diagnostic tool before aiming.
In case of high beam, head lamp do not need aiming with proper beam-setting equipment.

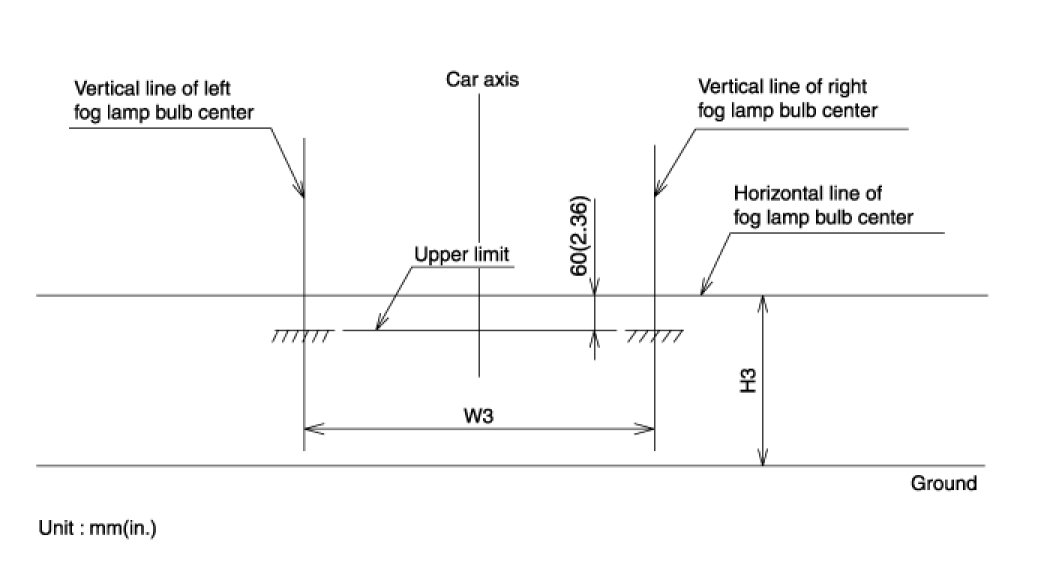

2. Turn the front fog lamp on with driver.
The cut-off line should be projected in the allowable range (shaded region)
