Power Mosfet

REPLACEMENT

1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad.

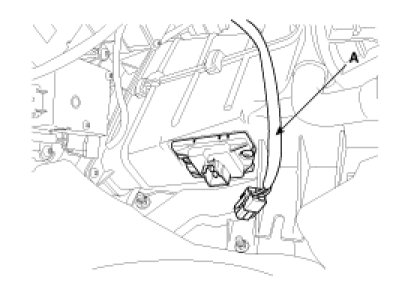

3. Disconnect the power mosfet connector (A).

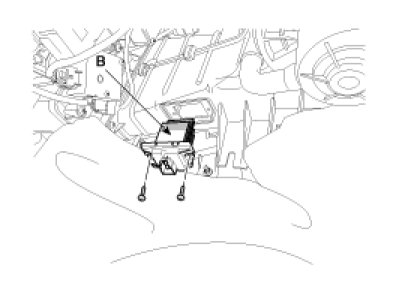

4. Remove the power mosfet (B) after loosening the mounting screws.




5. Installation is the reverse order of removal.
