Temperature Control Actuator

INSPECTION

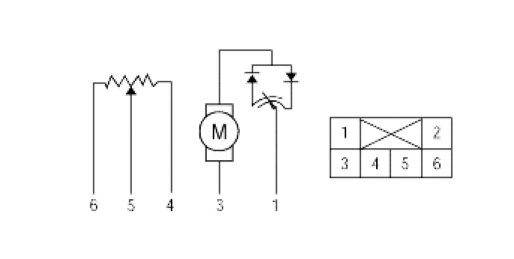

1. Verify that the temperature actuator operates to the hot position when connecting 12V to the terminal 1 and grounding terminal 3.
2. Verify that the temperature actuator operates to the cool position when connecting in the reverse.

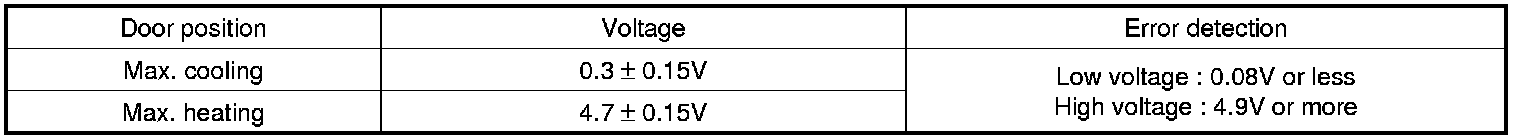

3. Check the voltage between terminals 5 and 6.
CHECK





It will feed back current position of actuator to controls.
