Mode Control Actuator

INSPECTION

1. Verify that the mode actuator operates to the vent mode when connecting 12V to the terminal 1 and grounding terminal 3.
2. Verify that the mode actuator operates to the def mode when connecting in the reverse.

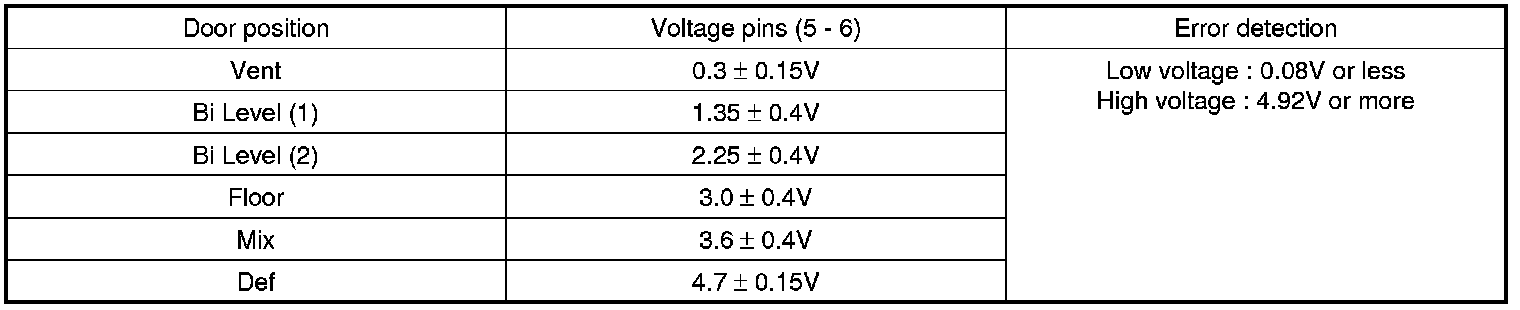

3. Check the voltage between terminals 5 - 6.





It will feed back current position of actuator to controls.
