Intake Actuator

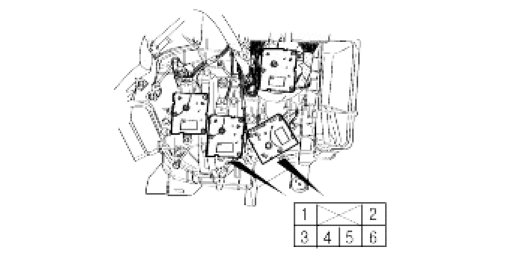

INSPECTION

Pressing the intake selection switch will shift between recirculation and fresh air modes.




CHECK

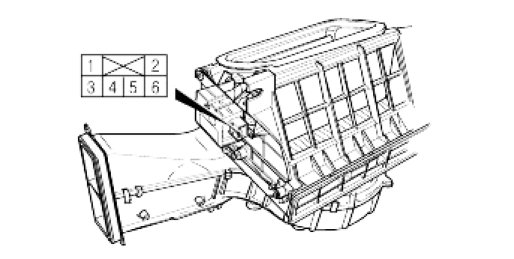

REAR VENT ACTUATOR

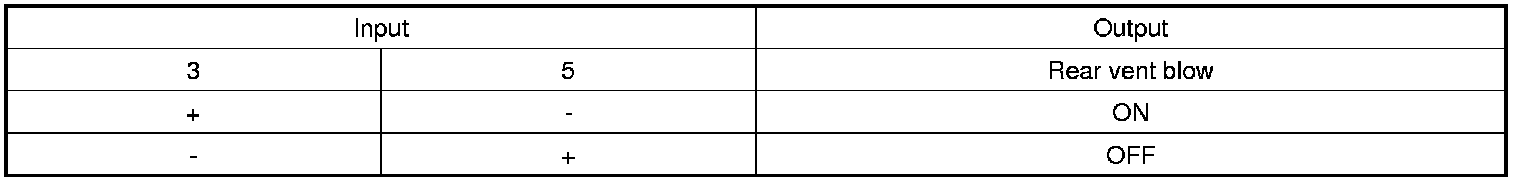

Rear vent actuator will perform ON/OFF control.
