Temperature Control Actuator

DESCRIPTION

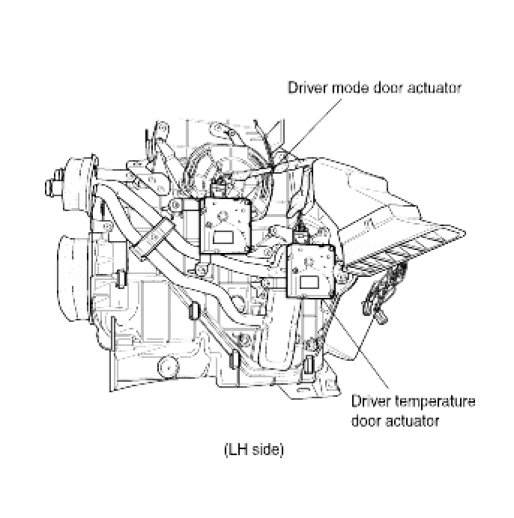

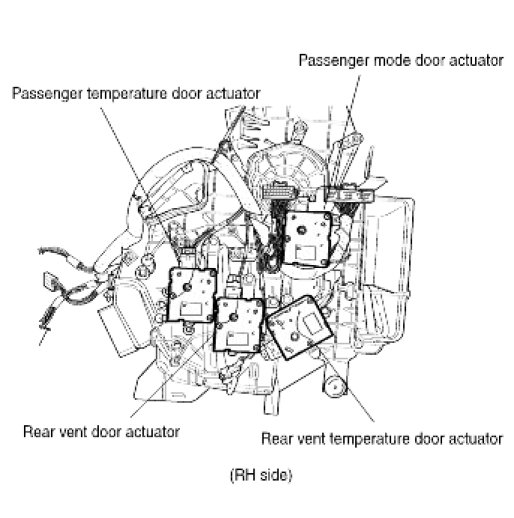

1. Heater unit includes driver side mode door actuator, passenger side mode door actuator, rear (console) mode door actuator, driver side temperature control door actuator, passenger side temperature control actuator, and rear (console) temperature control actuator.








2. Temperature control actuators are installed at driver side, passenger side, and rear vent. Control switches and rear vent duct switch will operate actuators, that will regulate temperature control position and discharge air temperature.
