Repair Procedures

THERMOSTAT

NOTE:
Removal of the thermostat would have an adverse effect, causing a lowering of cooling efficiency. Do not remove the thermostat, even if the engine tends to overheat.

1. Drain engine coolant so its level is below thermostat.

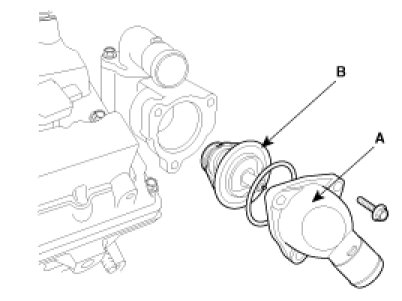

2. Remove water inlet(A) and thermostat(B).






INSTALLATION

THERMOSTAT
1. Place thermostat in thermostat housing.
(1) Install the thermostat with the jiggle valve upward.
(2) Install a new thermostat(B).




2. Install water inlet(A).

Tightening torque
16.66 - 19.60Nm (1.7 - 2.0kgf.m, 12.30 - 14.47lb-ft)


3. Fill with engine coolant.
4. Start engine and check for leaks.
