Repair Procedures

REMOVAL

1. Remove the lower panel, after loosening the parking lever
2. Remove the release cable assembly (A).
3. Remove the parking brake mounting bolt (B) and the wire (C).




4. Remove the floor console .
5. Remove the parking brake wire by removing the adjusting nut (A).




6. Raise the front of the vehicle, and make sure it is securely supported.
7. Remove the rear wheel and tire from the rear hub.
8. Remove the caliper assembly from the carrier and suspend it with wire.
9. Remove the brake disk and the rear axle hub
10. While fastening the spring, remove the shoe hold down pin (A) and spring (B).

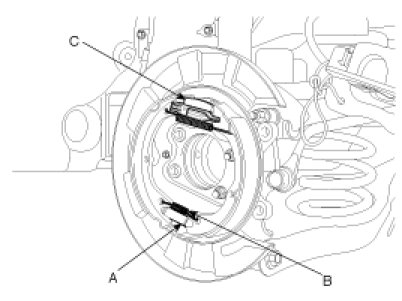

11. Remove the adjuster assembly (A) and the lower return spring (B).




12. Remove the strut assembly (C).
13. Remove the retaining ring (B) from the parking brake wire (A) which is in the rear side of the backing plate.




14. Remove the parking brake wire connecting hook(C) from the brake shoe.


INSTALLATION

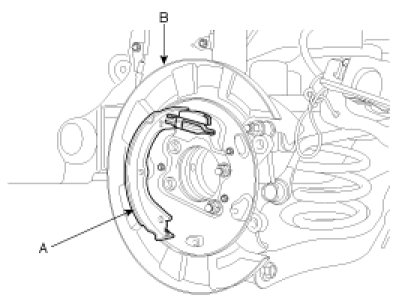

1. Install the brake shoe (A) to the backing plate (B).




2. Connect the parking brake wire to the brake shoe.

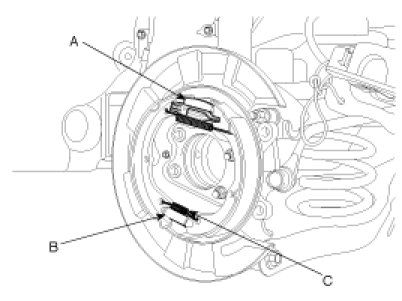

3. After installing the strut assembly (A), install the adjuster assembly (B) and the lower return spring (C).

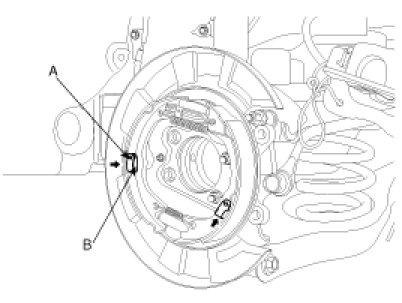

4. While pressing the spring, install the brake shoe hold down pin (A) and spring (B).

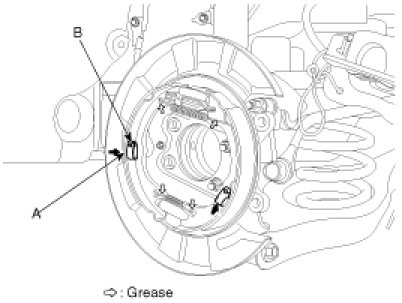

5. Grease where it is necessary.

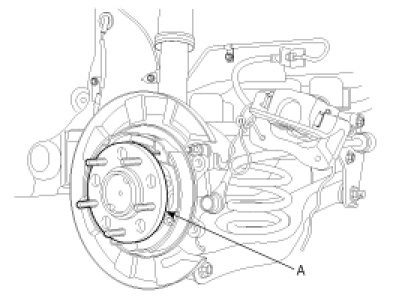

6. Install the rear axle hub (A) and the brake disk .




7. Install the rear wheel and tire to the rear hub.
8. Tighten the parking brake adjusting nut.
9. Install the floor console .

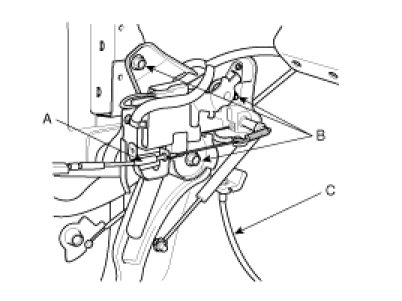

10. Install the parking brake mounting bolt (B) and the wire (C).
