Disassembly

DISASSEMBLY

1. Remove the reservoir cap and drain the brake fluid into a suitable container.
2. Remove the fluid level sensor.

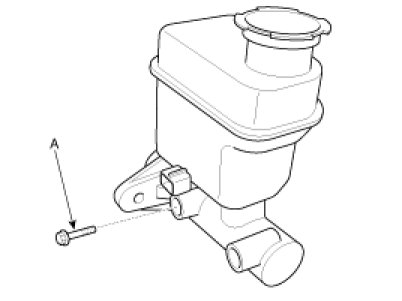

3. Remove the reservoir from the master cylinder, after remove mounting screw (A).

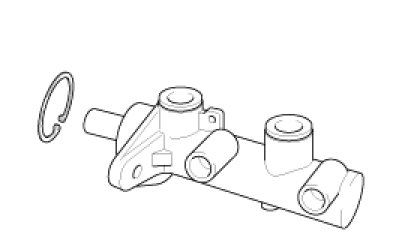

4. Remove the retainer ring by using the snap ring pliers then remove the primary piston assembly.




5. Remove the pin with the secondary piston pushed completely using a screwdriver. Remove the secondary piston assembly.





NOTE:
Do not disassemble the primary and secondary piston assembly.
