Rear Disc Brake

INSPECTION

REAR BRAKE PAD CHECK

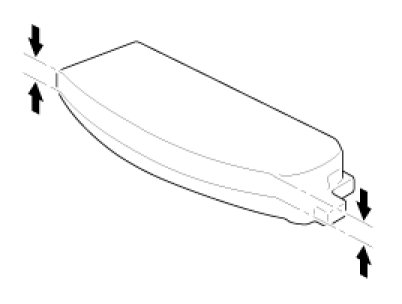

1. Check the pad wear. Measure the pad thickness and replace it, if it is less than the specified value.

Pad thickness
Standard value :
10mm ( 0.39in)
Service limit : 2.0mm (0.08in)






2. Check that grease is applied, and the pad and backing metal for damage.
