Rear

INSPECTION OF REAR DISC BRAKE PAD

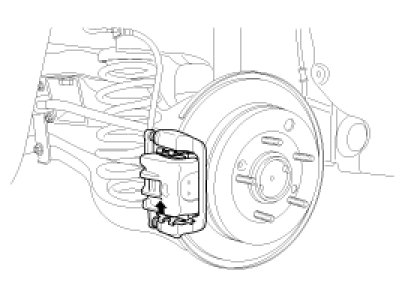

1. Check the rear disk brake pad thickness through the caliper body inspection hole.

Pad thickness
Standard value : 10.0mm (0.39in)
Service limit : 2.0mm (0.0787in)







CAUTION:
- If the pad thickness is out of specification, left and right pads must be replaced as a complete set.
- When the thickness difference between the left pad and right pad is large, check the sliding condition of the piston and the guide rod.
