Inspection Procedure 5

Inspection Procedure 5






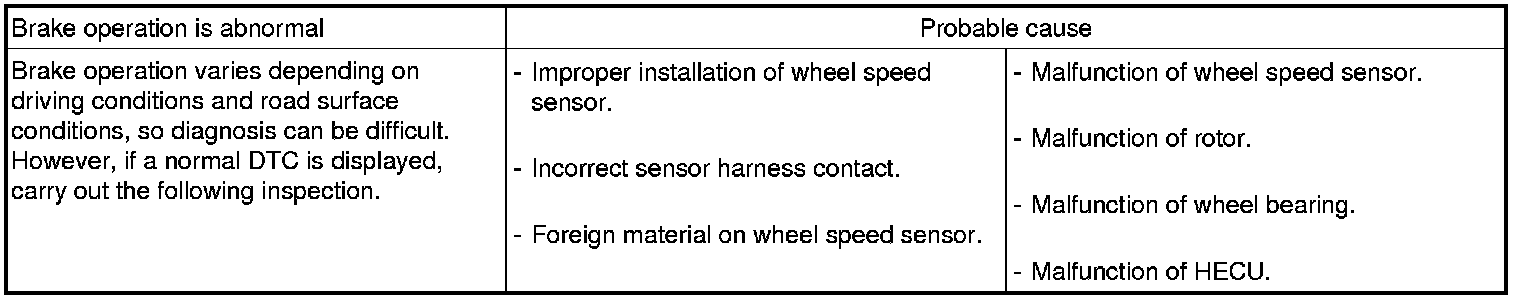

CAUTION:
- When measuring sensor current and operating voltage value, be sure to install resistance (R=115Ohms) at active wheel sensor to prevent sensor damaging.
- Be sure to remove resistance (R=115Ohms) from sensor wiring harness after measuring, or ABS warning lamp will be turned ON.

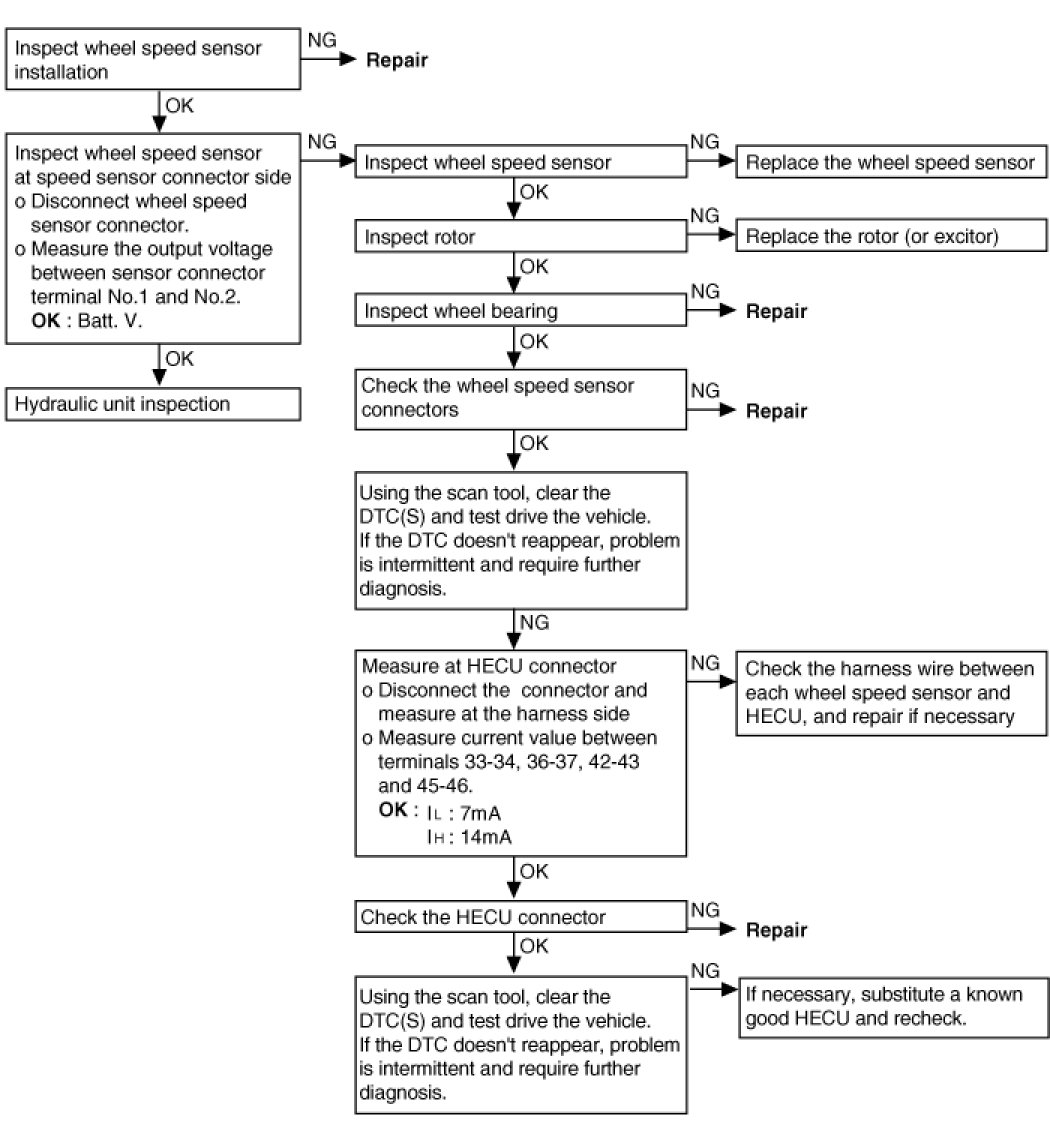

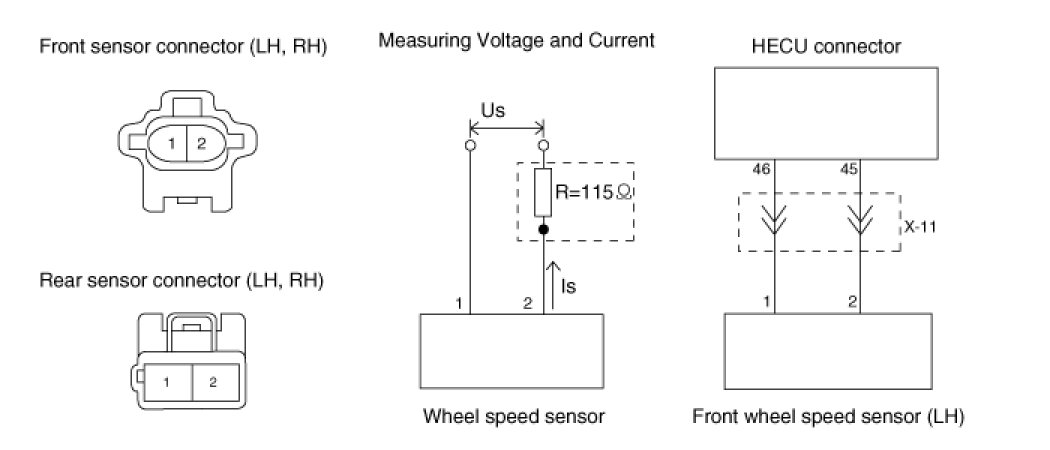

CIRCUIT DIAGRAM
