Inspection Procedure 4









Inspection Procedure 4

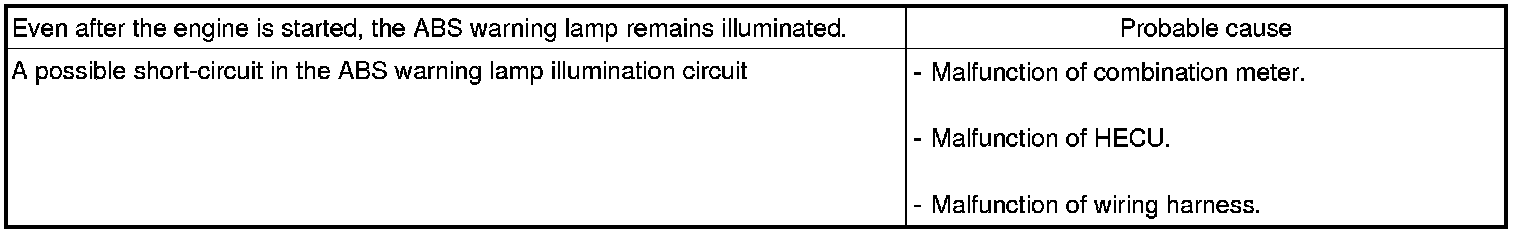

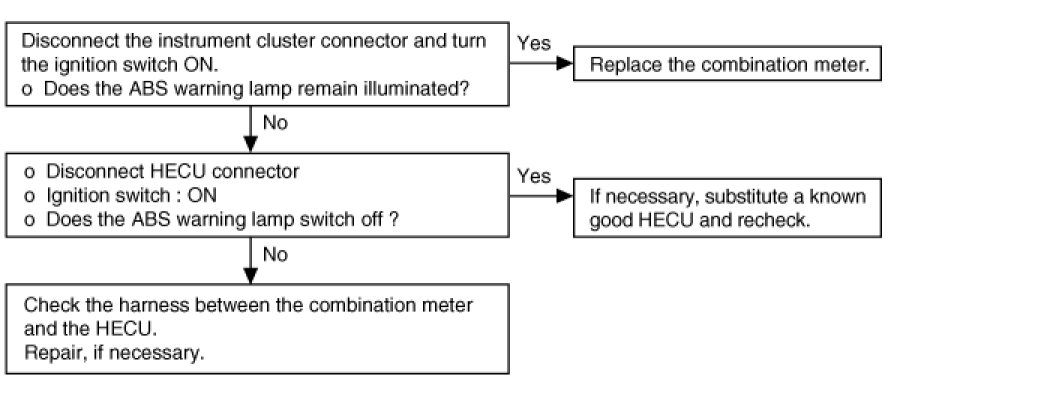

This trouble symptom is limited to cases where communication with the Hi-Scan (Pro) is possible (HECU power supply is normal) and DTC is normal.
