Repair Procedures

REMOVAL AND INSTALLATION

1. Remove rear seat cushion.

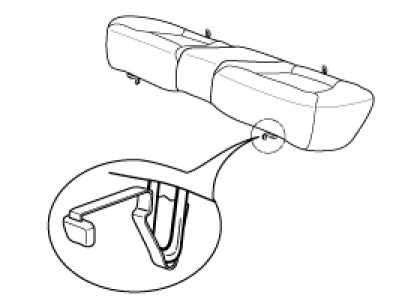

(1) Release seat cushion stopper.




(2) Remove seat cushion bolts(2).

Tightening torque:
17-26Nm (1.7-2.6kg-m, 12.3-18.8lb-ft)






(3) Disconnect seat cushion connector.
2. Remove rear seatback.
(1) Remove seat back bolts(4).

Tightening torque:
17-26Nm (1.7-2.6kg-m, 12.3-18.8lb-ft)






(2) Disconnect seatback & airbag connector.

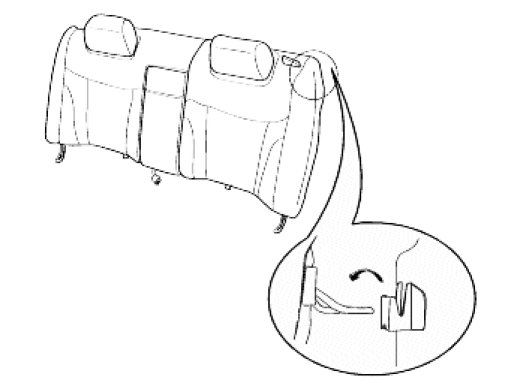

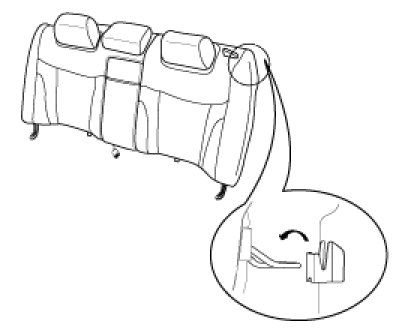

(3) Release seatback stopper, and then remove seatback.








3. Install in reverse order of removal.
