Recliner Cover Replacement

RECLINER COVER REPLACEMENT

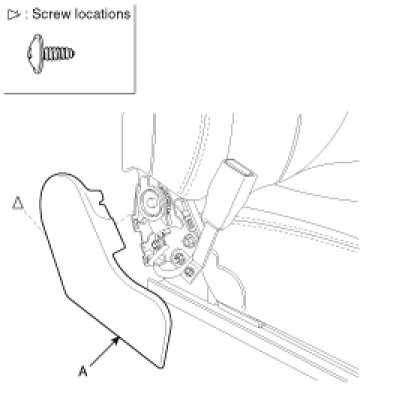

1. After loosening the mounting screws, then remove the recliner cover (A).

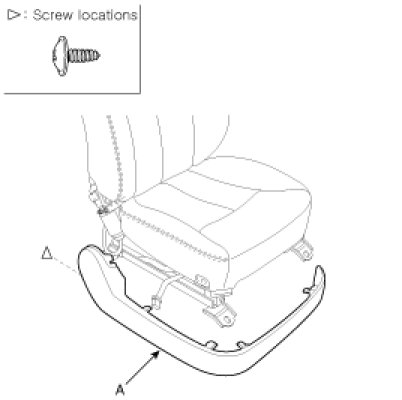

2. Gently detach the hook, remove the recliner cover (A).




3. Installation is the reverse of removal.

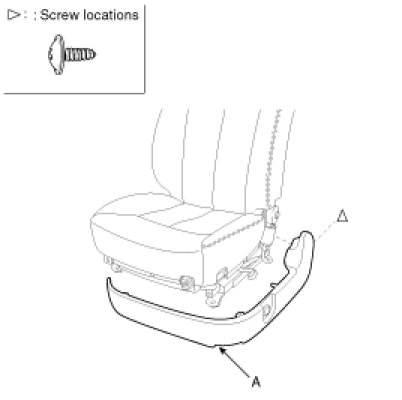

4. After loosening the mounting screw, then remove the recliner cover (A).




5. Installation is the reverse of removal.
