DTC 25

25

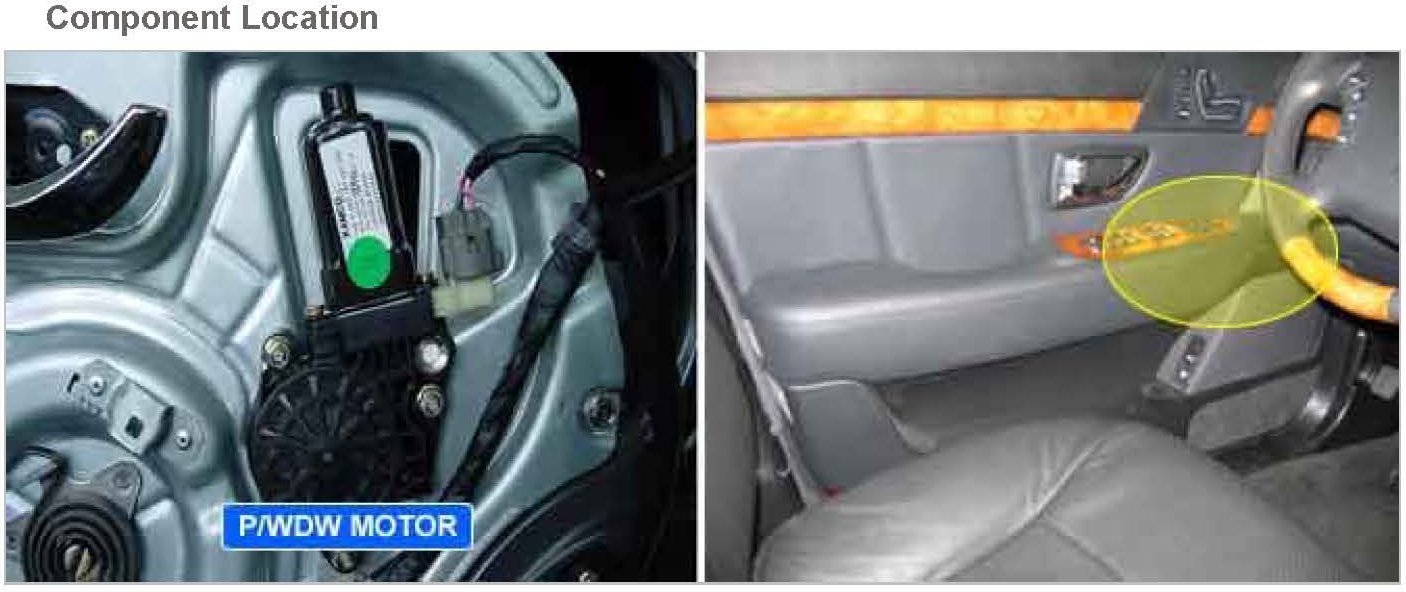

Component Location:

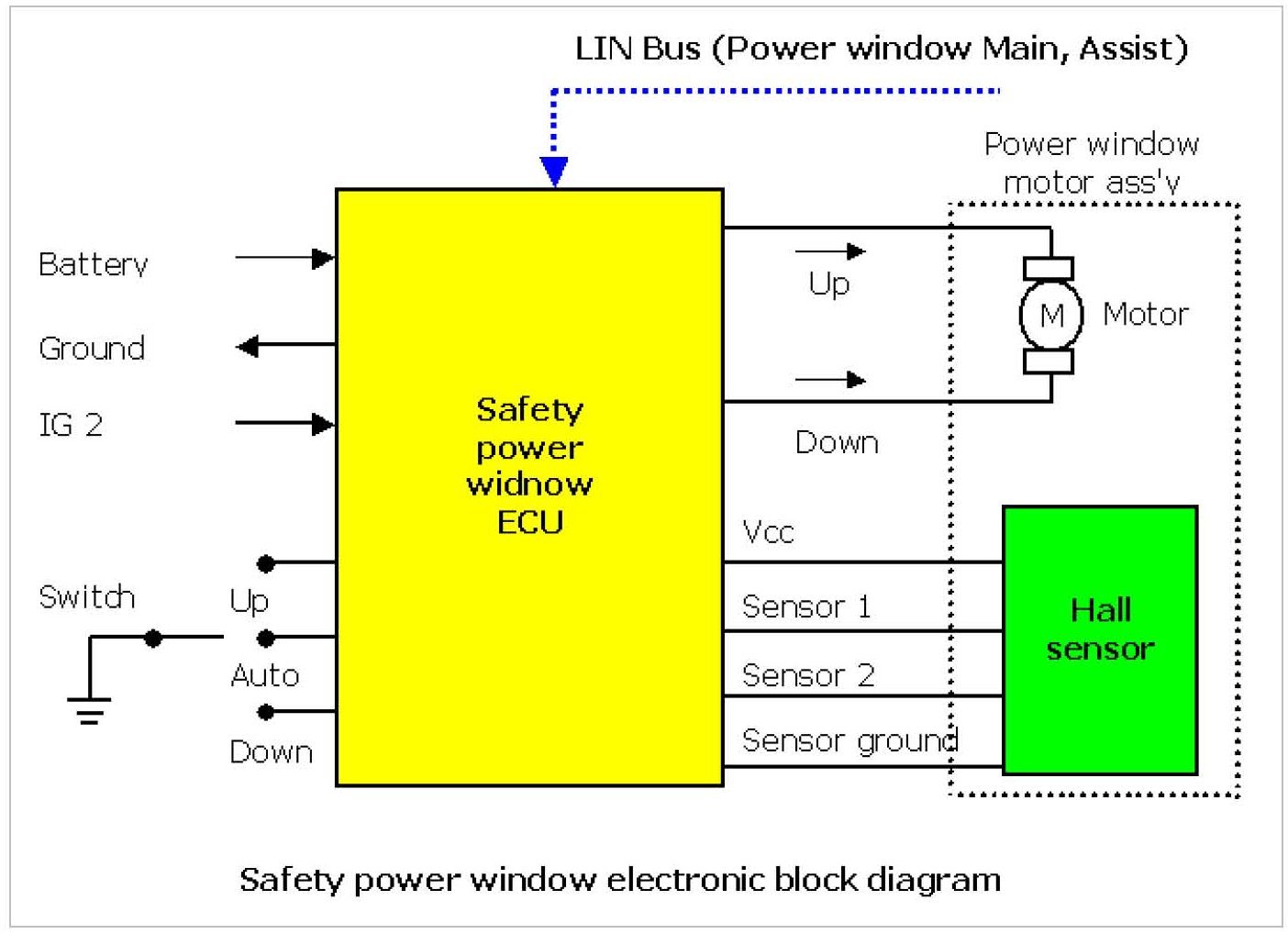

General Description
Low speed control : If low speed is detected while motor is in the protection range, the system is normalized, EEPROM data is valid, and window moves upwards (Auto Up function), moving will be terminated.






DTC Description
The safety power window ECU sets DTC DRV SAFETY P/WDW LOW SPEED ERROR if the ECU detects low motor speed. (The state of operation : upward movement will be stopped)

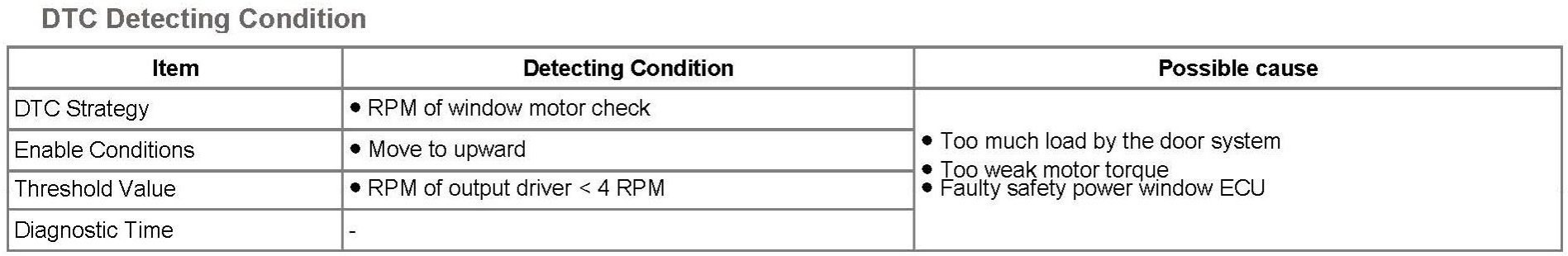

DTC Detecting Condition:

Schematic Diagram:

Component Inspection

Check Door System
1. Check damage of door flame by accident or shock.
2. Check glass-run by deformation or contamination.
3. Is the operation of power window motor OK?

YES - Test with a new front safety power window motor ass'y L/H and check for proper operation. If problem is corrected, replace front safety power window motor ass'y L/H and go to "Verification of Vehicle Repair" procedure. If problem is not corrected, replace front safety power window ECU L/H and go to "Verification of vehicle repair" procedure.

NO - Check a door flame or a glass-run. Repair as necessary and go to "Verification of Vehicle Repair" procedure.

Verification of Vehicle Repair
After a repair, it is essential to verify that the fault has been corrected.
1. Ignition "ON" & Engine "OFF".
2. Connect scantool and clear DTC.
3. Are any DTCs present?

YES - Go to the applicable troubleshooting procedure.

NO - System is performing to specification at this time.
