DTC 23

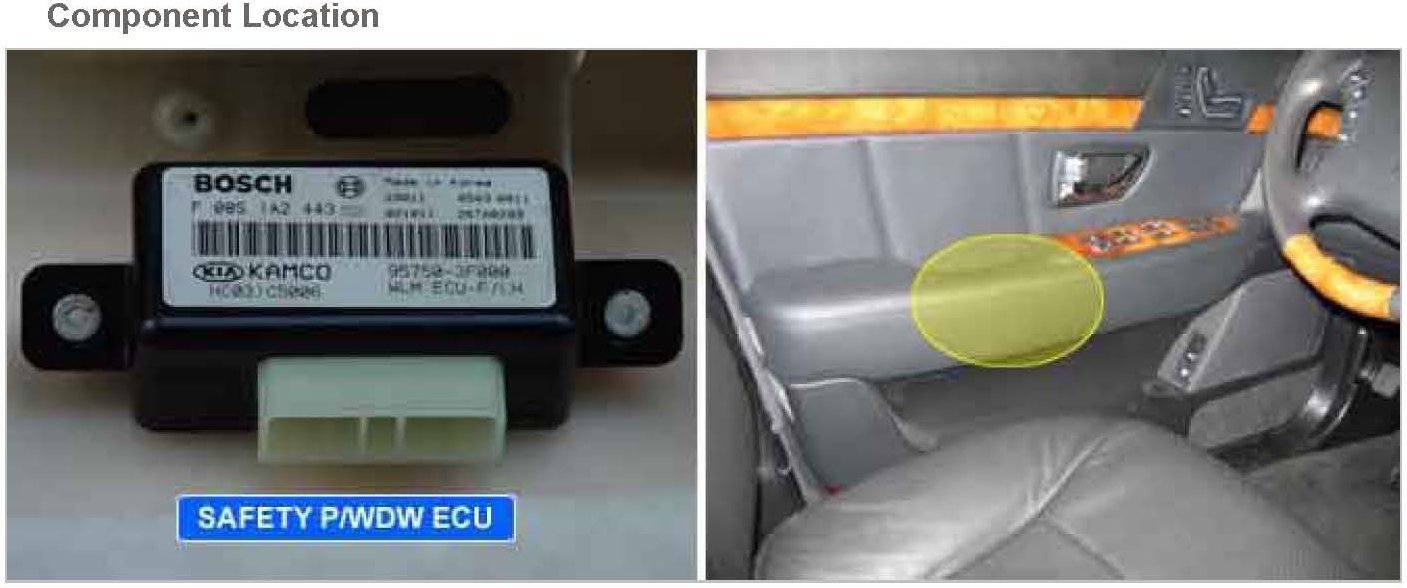

Component Location:

General Description

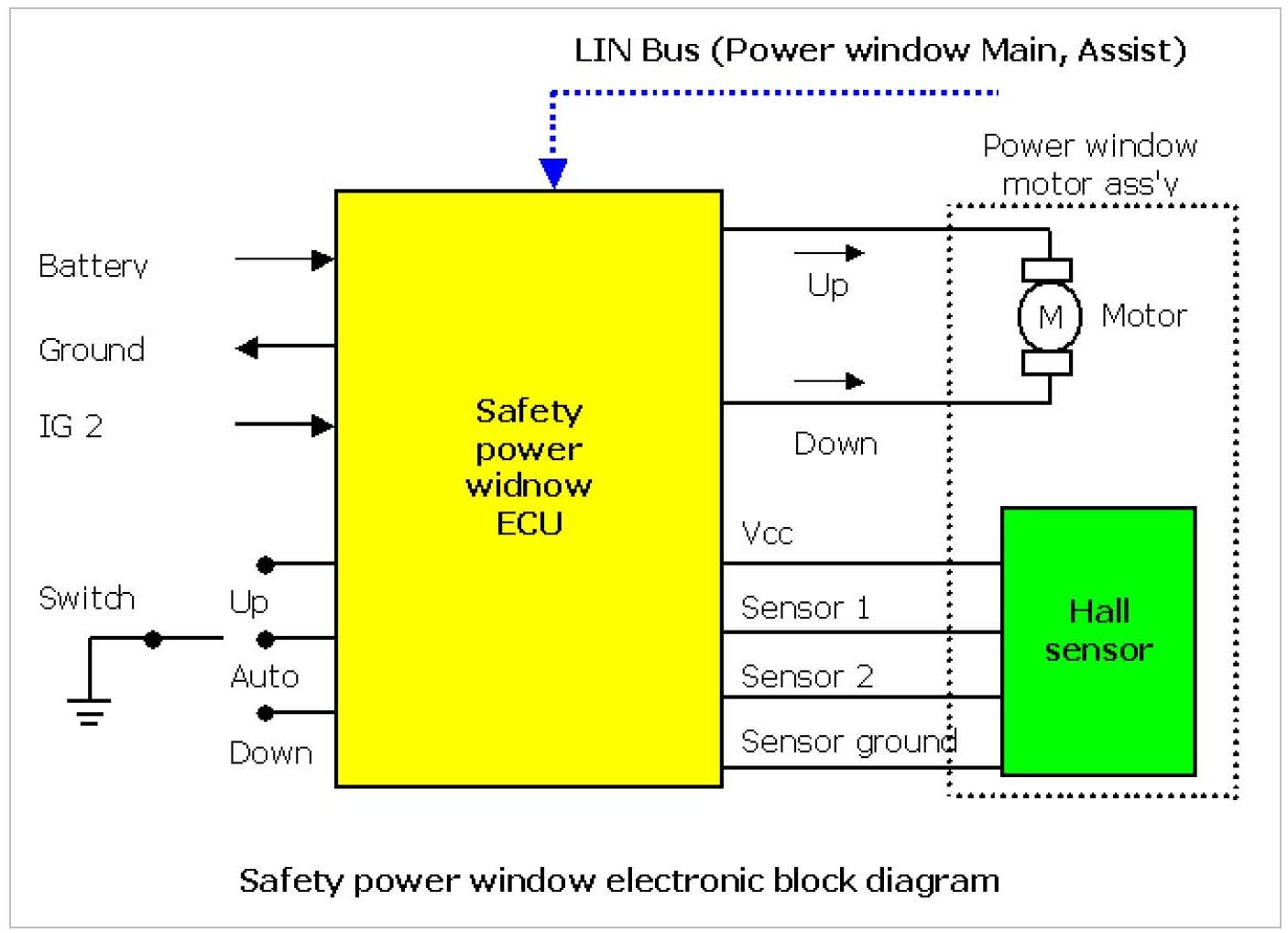

Safety power window ECU Software reads the following inputs.

DTC Description

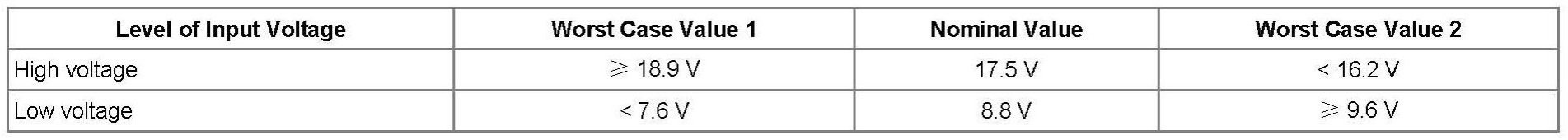

The safety power window ECU sets DTC DRV SAFETY P/WDW INPUT VOLT.LOW if the ECU detects low input battery voltage. (The state of operation : no auto up)

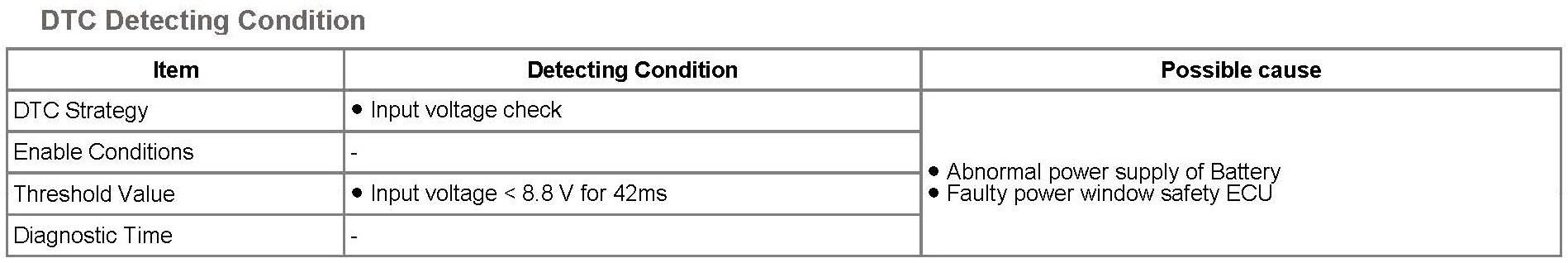

DTC Detecting Condition:

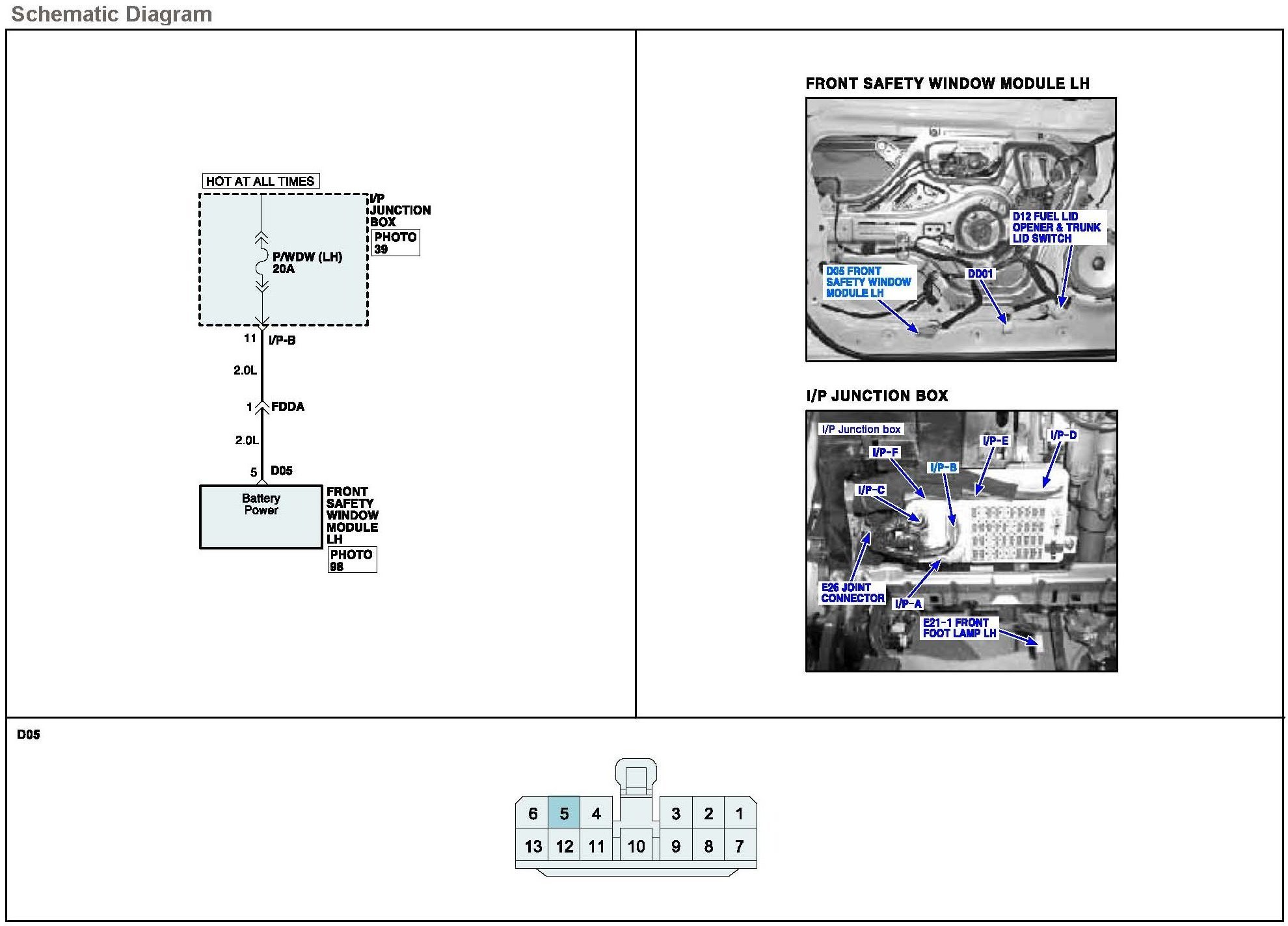

Schematic Diagram:

Terminal and Connector Inspection
1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Check the following conditions:
1. Check for damaged harness and terminals: contact resistance, oxidation, bent or broken terminals.
2. Check for poor connection between ECM and component: backed out terminal, improper mating, broken locks and poor terminal to wire connection

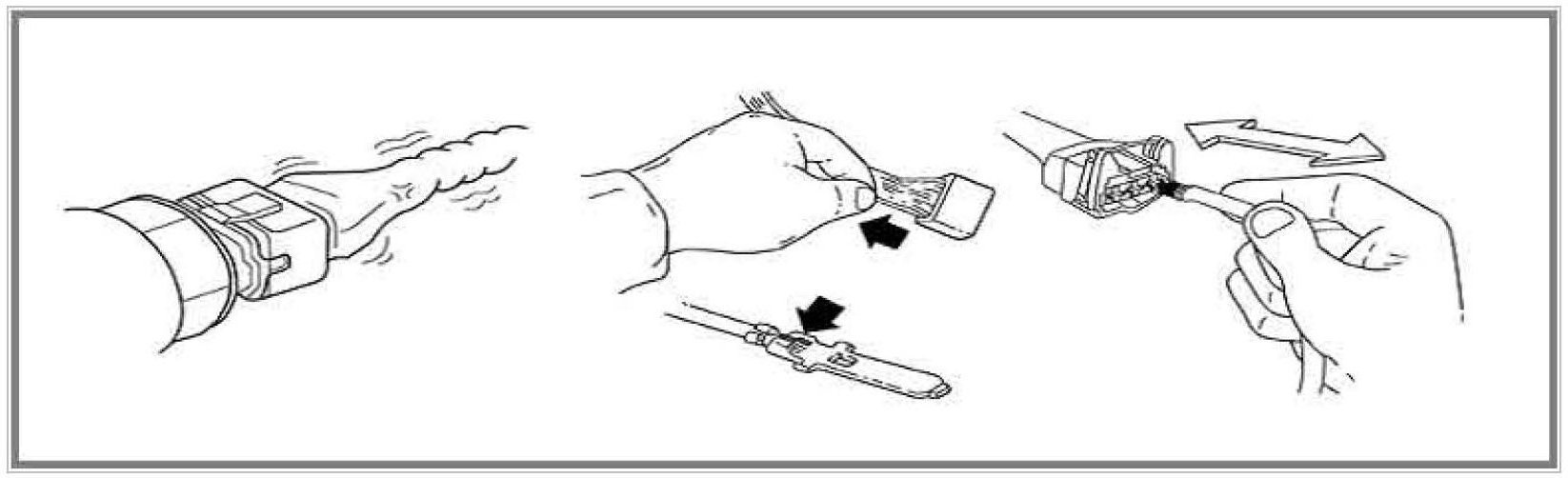

NOTE: Using a suitable male pin to ensure that contact in sockets is good. The pin should remain in position when pulled gently.

3. Has a problem been found?

YES - Repair as necessary and go to "Verification of Vehicle Repair" procedure

NO - Go to "Power Circuit Inspection" procedure

Power Supply Circuit Inspection
1. Ignition "ON" and Engine "OFF"
2. Disconnect front safety power window ECU L/H connector.

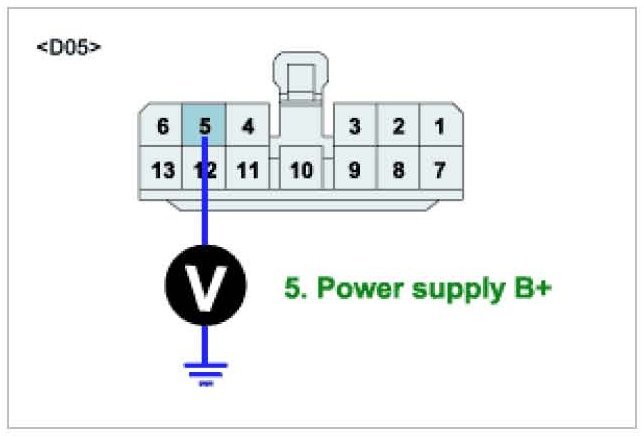

3. Measure voltage between "5" of the front safety power window ECU L/H harness connector and chassis ground.

Specification : Approx. B+

4. Is the measured voltage within specification?

YES - Substitute with a known-good front safety power window ECU L/H and check proper condition. If the problem is corrected, replace front safety power window ECU L/H and then go to "Verification of Vehicle Repair" procedure.

NO - Check for a power supply B+ circuit. Repair as necessary and then go to "Verification of Vehicle Repair" procedure.

Verification of Vehicle Repair
After a repair, it is essential to verify that the fault has been corrected.
1. Ignition "ON" & Engine "OFF"
2. Connect scantool and clear DTC.
3. Are any DTCs present?

YES - Go to the applicable troubleshooting procedure.

NO - System is performing to specification at this time.
