B1205

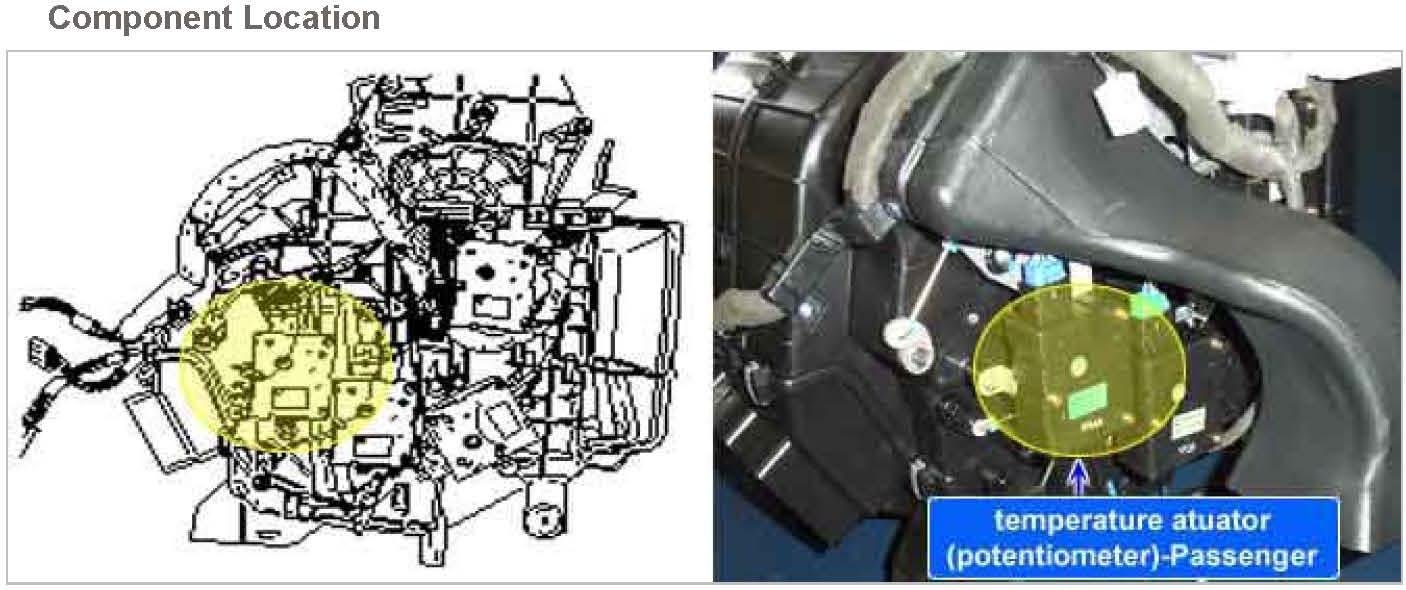

B1205Component Location:
General Description
Temperature control actuator located at heater unit. It contains temp motor that changes temp door position and potentiometer that monitors position of temp door. Temperature control actuator regulates the temperature by the procedure as follows. Signal from control unit adjusts position of temp door by operating temp motor and then temperature will be regulated by the hot/cold air ratio decided by position of temp door. In operation, potentiometer delivers temp door position transformed into voltage value to A/C ECU.
General Description
The ECM sets DTC B1205 if there is a short to power in the passenger air mix actuator signal harness.

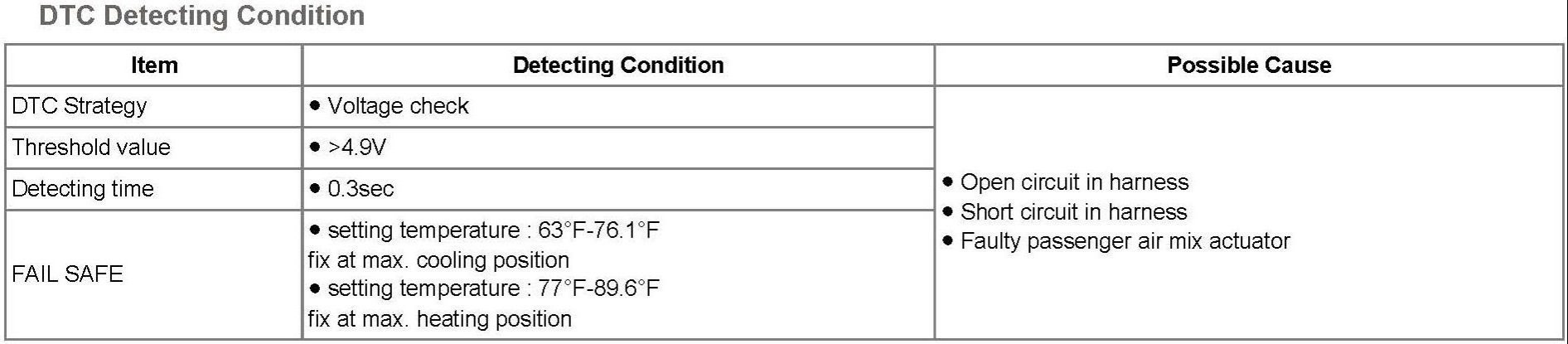

DTC Detecting Condition:

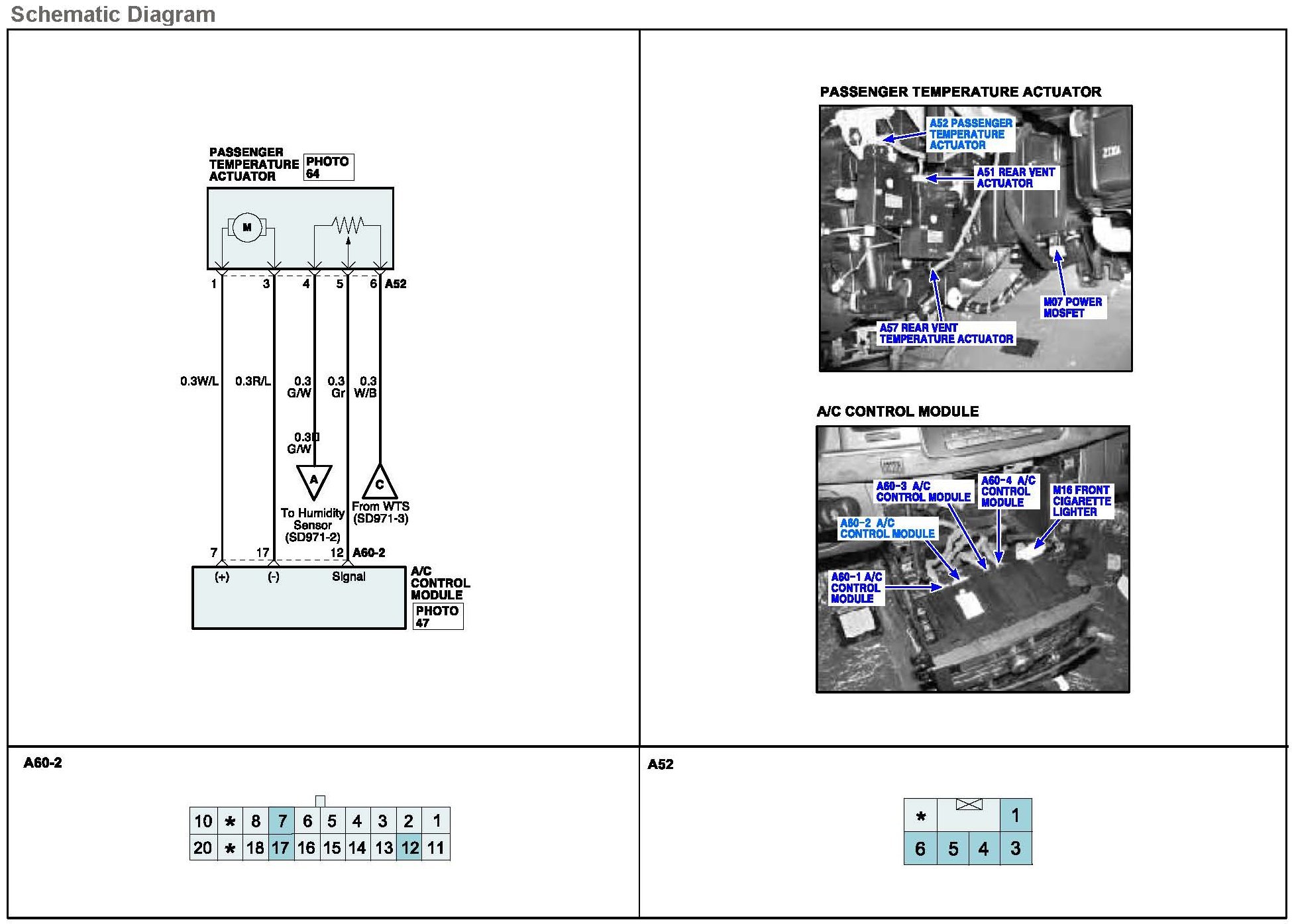

Schematic Diagram:

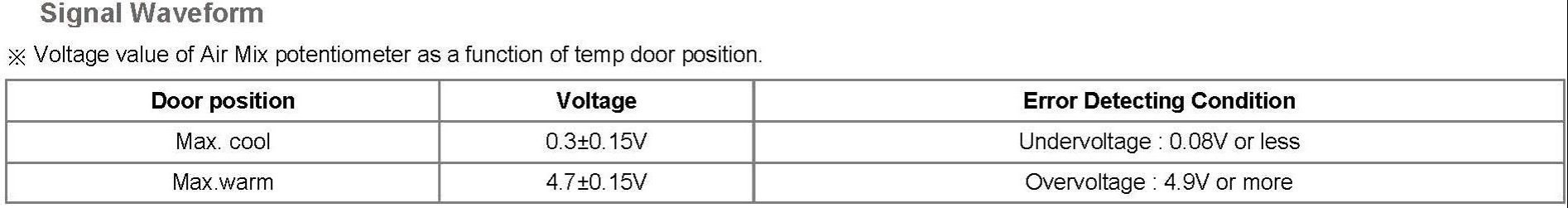

Signal Waveform:

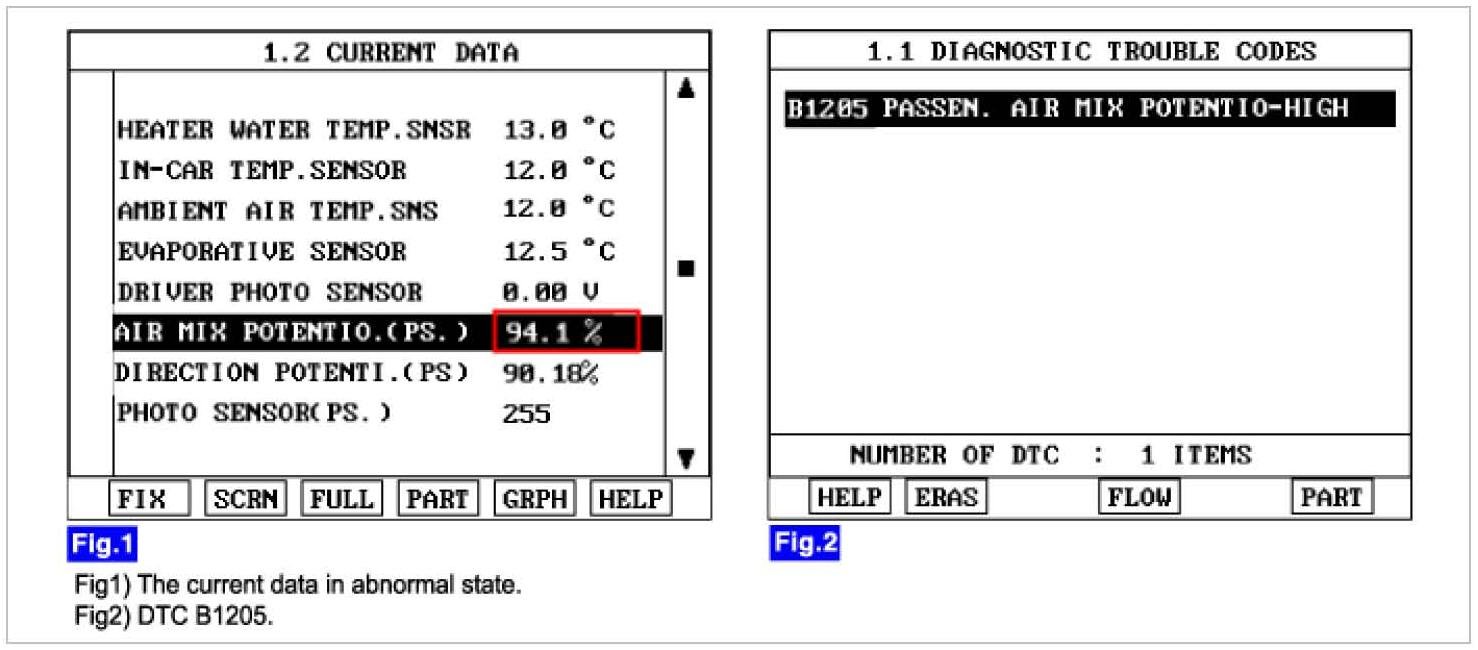

Monitor Scantool Data
1. Connect scantool to Data Link Connector (DLC).
2. Engine "ON".
3. Monitor the "PASSENGER AIR MIX D" Parameter on the Scantool. While operating passenger temp switch.
4. Are the DTC B1205 present and is parameter of "PASSENGER AIR MIX D" fixed ? Parameter of "PASSENGER AIR MIX D" will be fixed at d at 100% (or any value above 90%), or 0% (or any value below 10%), if there is any fault in passenger air mix actuator.
YES - Go to "Inspection & Repair" procedure.
NO - Fault is intermittent caused by poor contact in the sensor's and/or A/C control unit's connector or was repaired and A/C control unit memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
Terminal and Connector Inspection
1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?
YES - Repair as necessary and go to "Verification Vehicle Repair" procedure.
NO - Go to "W/Harness Inspection" procedure.
Signal Circuit Inspection
1. Check for short in harness
1. Ignition "OFF".
2. Disconnect passenger air mix actuator.

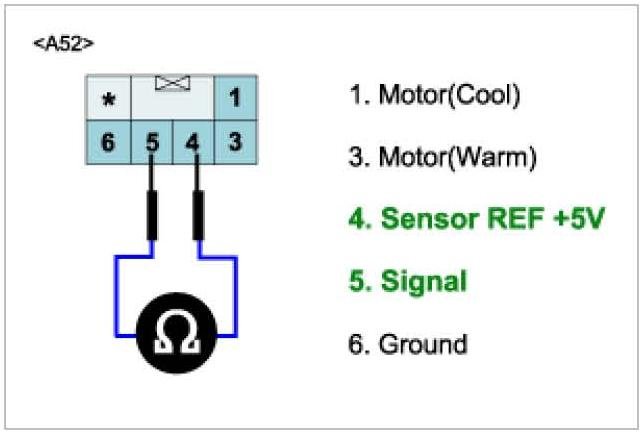

3. Measure resistance between terminal "4" and "5" of passenger air mix actuator.
Specification : Approx. Infinite ohms
4. Is the measured resistance within specifications?
YES - Go to "Ground circuit Inspection" procedure.
NO - Check for short to power harness in signal harness. Repair as necessary and go to "Verification of Vehicle Repair" procedure.
Ground Circuit inspection
1. Check for open in ground harness
1. Ignition "OFF"
2. Disconnect passenger air mix actuator.

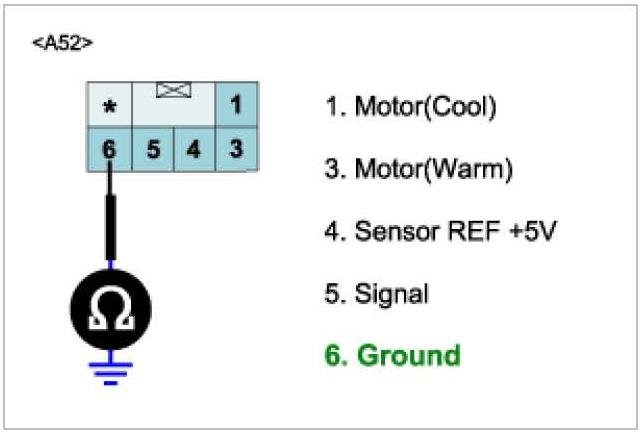

3. Measure resistance between terminal "6" of passenger air mix actuator and chassis ground.
Specification : Approx. 0 ohms
4. Is the measured resistance within specifications?
YES - Go to "Component Inspection" procedure.
NO - Check for open in ground harness. Repair as necessary and go to "Verification of Vehicle Repair" procedure.
Component Inspection
Check passenger air mix actuator.

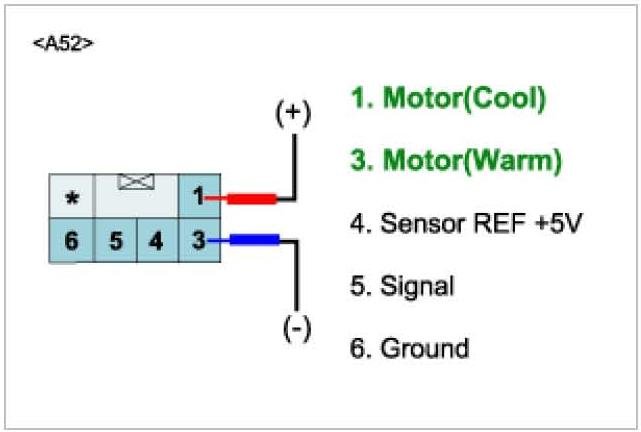

1. Check actuator motor
1. Ignition "OFF".
2. Disconnect passenger air mix actuator.
3. Connect (+) terminal of battery to terminal 1 of passenger air mix actuator and (-) terminal to terminal 3.
4. Verify that the temperature actuator operates to the cool position.
5. Verify that the temperature actuator operates to the warm position with reverse connecting. ((+) to 3 and (-) to 1)
6. Dose the actuator work properly?
YES - Go to "Check potentiometer" procedure.
NO - Substitute with a known-good actuator and check for proper operation. If the problem is corrected, replace actuator and then go to "Verification of Vehicle Repair" procedure.
2. Check actuator potentiometer
1. Ignition "ON".
2. Connect passenger air mix actuator.

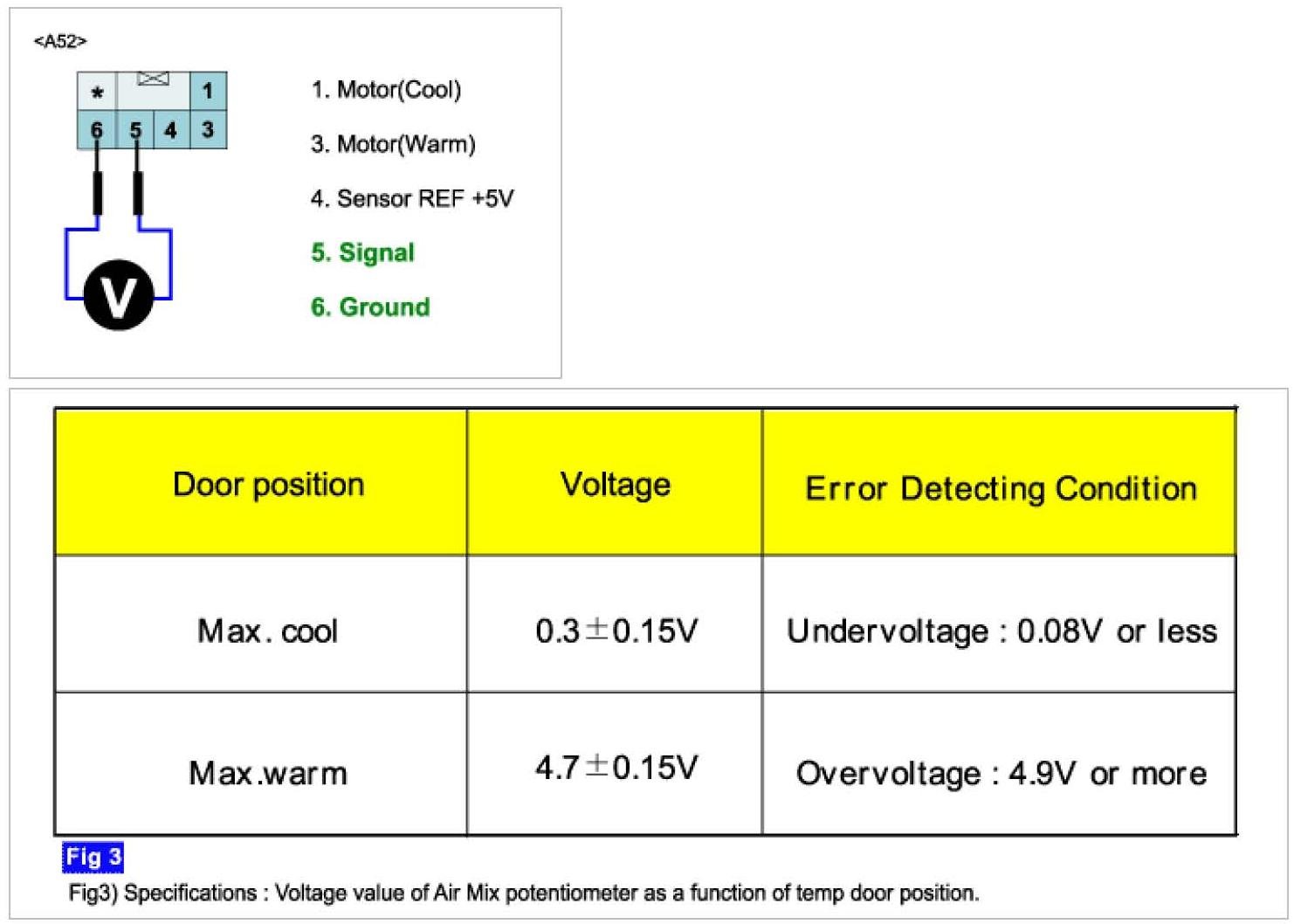

3. Measure voltage between terminal "5" and "6" of passenger air mix actuator while operating the temp switch.
Specification : Refer the specifications in fig 3)
4. Is the measured voltage within specifications in fig 3) ?
YES - Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
NO - Substitute with a known-good actuator and check for proper operation. If the problem is corrected, replace actuator and then go to "Verification of Vehicle Repair" procedure.
Verification of Vehicle Repair
After a repair, it is essential to verify that the fault has been corrected.
1. Connect scantool and select "Diagnostic Trouble Codes (DTCs)" mode and then clear DTC.
2. Operate the vehicle and monitor the DTC on the scantool.
3. Are any DTCs present?
YES - Go to the applicable troubleshooting procedure.
NO - System is performing to specification at this time.
