Power Window Relay: Testing and Inspection

INSPECTION

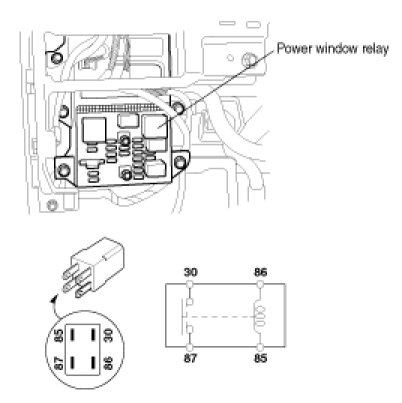

POWER WINDOW RELAY INSPECTION
Check for continuity between the terminals.
1. There should be continuity between the No.30 and No.87 terminals when power and ground are connected to the No.85 and No.86 terminals.
2. There should be no continuity between the No.30 and No.87 terminals when power is disconnected.
