Checking Steering Angle

CHECKING STEERING ANGLE

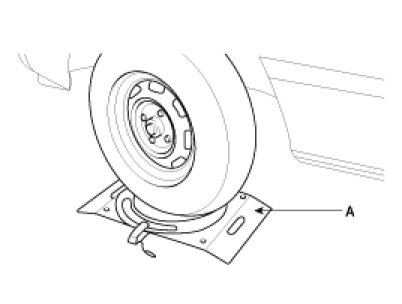

1. Place the front wheel on a turning radius gauge and measure the steering angle.

Standard value
Wheel angle
Inner wheel : 37° ± 0.5°
Outer wheel : 31.8°





2. If the measured value is not within the standard value, adjust the linkage.
