Repair Procedures

REMOVAL

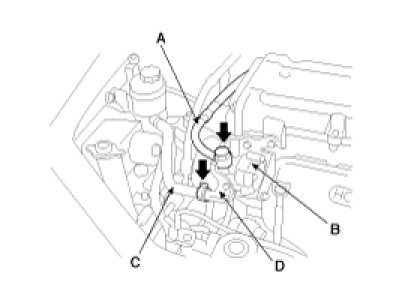

1. Remove the pressure hose(A) from the oil pump(B).
2. Disconnect the suction hose(C) from the suction connector(D) and drain the fluid into a container.




3. Loosen the oil pump mounting bolts to remove the V-belt.

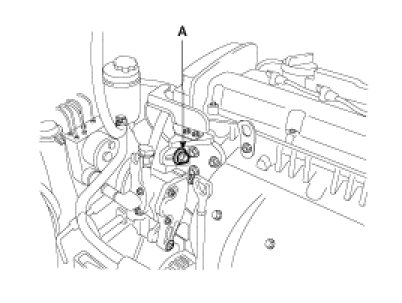

4. Loosen the tension adjusting bolt(A).

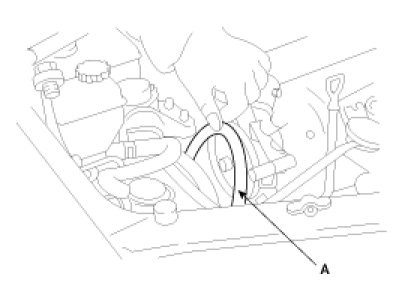

5. Remove the power steering drive belt(A) from the power steering oil pump pulley.




6. Remove the power steering oil pump mounting bolt and the tension adjusting bolt.

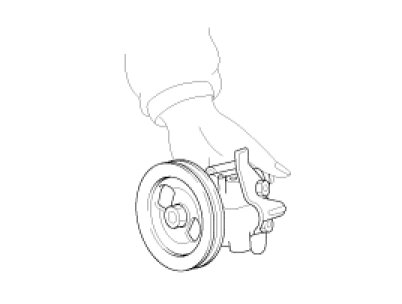

7. Remove the power steering oil pump assembly.

NOTE:
Be careful not to drip fluid from the power steering oil pump.





INSTALLATION

1. After installing the oil pump to the oil pump bracket, install the "V" belt and tighten the bolt(A) adjusting tension to the specified torque.

Oil pump adjusting bolt :
35 - 50 Nm (350 - 500 kg-cm, 25 - 36 lb-ft)

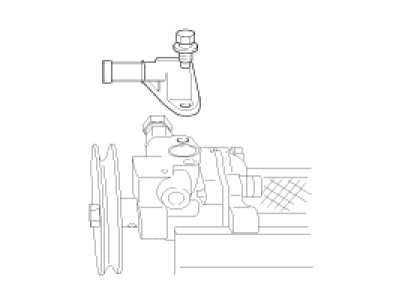

2. Install the suction hose.

CAUTION:
Install the pressure hose to the oil pump.

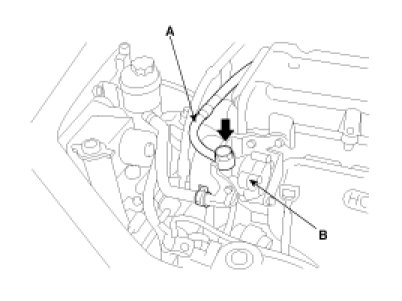

3. Install the pressure hose(A) to the oil pump(B).

NOTE:
Install the pressure hose being careful so that it does not twist and come in contact with other components.




4. Add power steering fluid (PSF-III).
5. Air bleed the system.
6. Check the oil pump pressure.
