Cylinder Bore

Cylinder Bore

Standard diameter 82.00 - 82.03 mm (3.2283 - 3.2295 in)
Piston-to-cylinder clearance 0.02 - 0.04 mm (0.0008 - 0.0016 in)

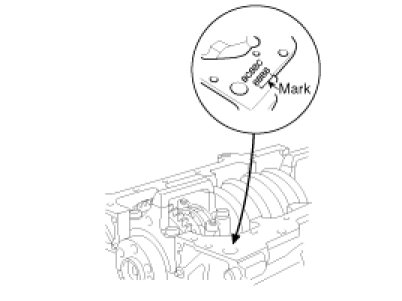

Check the cylinder bore size code on the cylinder block bottom face.

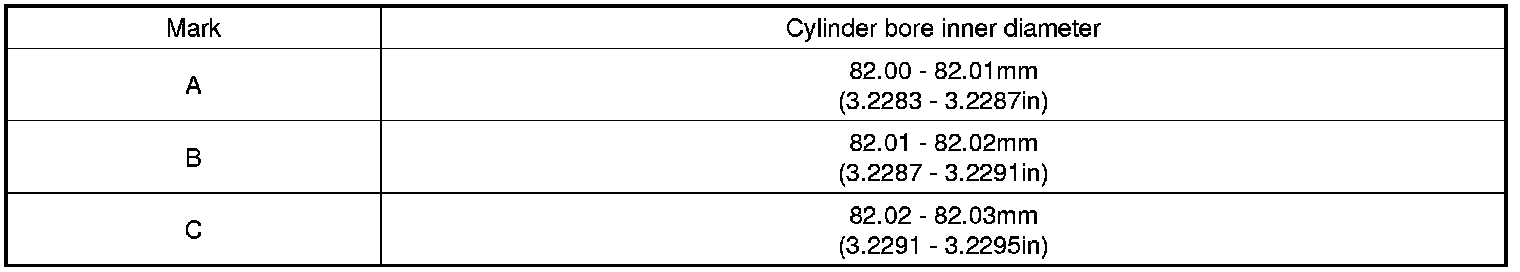

Discrimination of cylinder bore size





Cylinder Block
Flatness of cylinder block gasket surface
Total Less than 0.05 mm (0.0020 in)
Bore to bore Less than 0.03 mm (0.0012 in)
