Overhaul

DISASSEMBLY
If the disassembly procedure is complex, requiring many parts to be disassembled, all parts should be disassembled in a way that will not affect their performance or external appearance. Additionally, these parts should be identified so that reassembly can be done easily and efficiently.

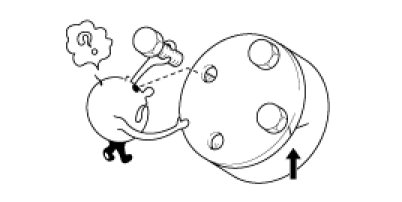

INSPECTION OF PARTS
When removed, each part should be carefully inspected for malfunction, deformations, damage, or other problems.

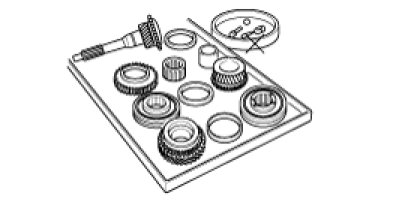

Arrangement of parts
All disassembled parts should be carefully arranged for reassembly. Separate or otherwise identify the parts to be replaced from those that will be reused.

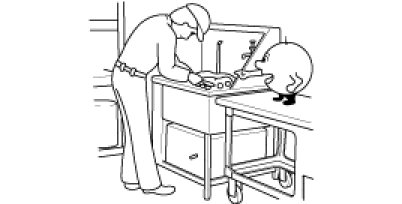

CLEANING PARTS FOR REUSE
All parts that will be reused should be carefully and thoroughly cleaned using appropriate methods.





REASSEMBLY

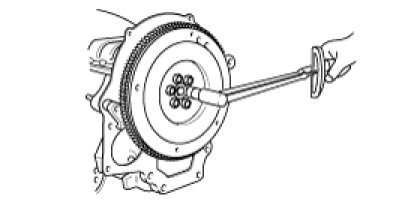

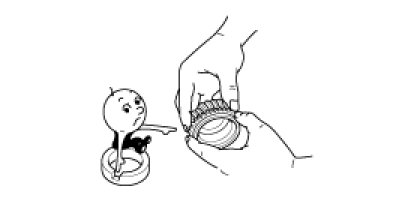

Standard values, such as torques and certain adjustments, must be strictly observed in the reassembly of all parts. If removed, the following parts should be replaced with new ones:
1. Oil seals
2. O-rings
3. Cotter pins
4. Gaskets
5. Lock washers
6. Nylon nuts





DEPENDING ON LOCATION:

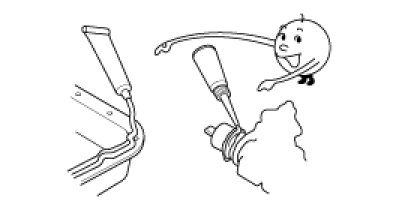

1. Sealant should be applied or new gaskets installed.
2. Oil should be applied to the moving components of parts.
3. Specified oil or grease should be applied at the appropriate locations (such as oil seals) before reassembly.
