Oil Temperature Sensor For ECM: Specifications

SPECIFICATIONS

SENSORS

CVVT OIL TEMPERATURE SENSOR (OTS)
- Type: Thermistor type

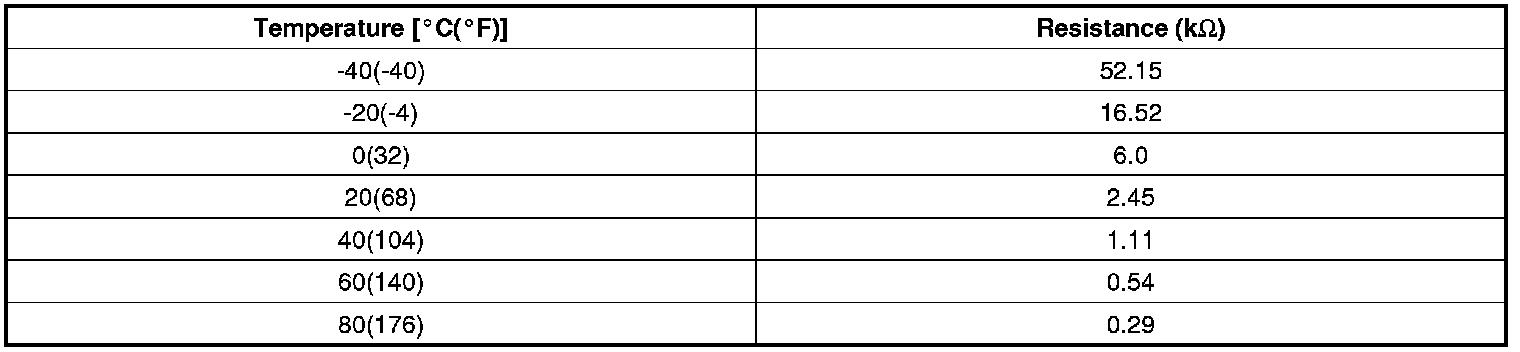

- Specification
