Home >> Kia >> 2007 >> Spectra L4-2.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Door Lock Switch >> Locations >> Photos

Photos

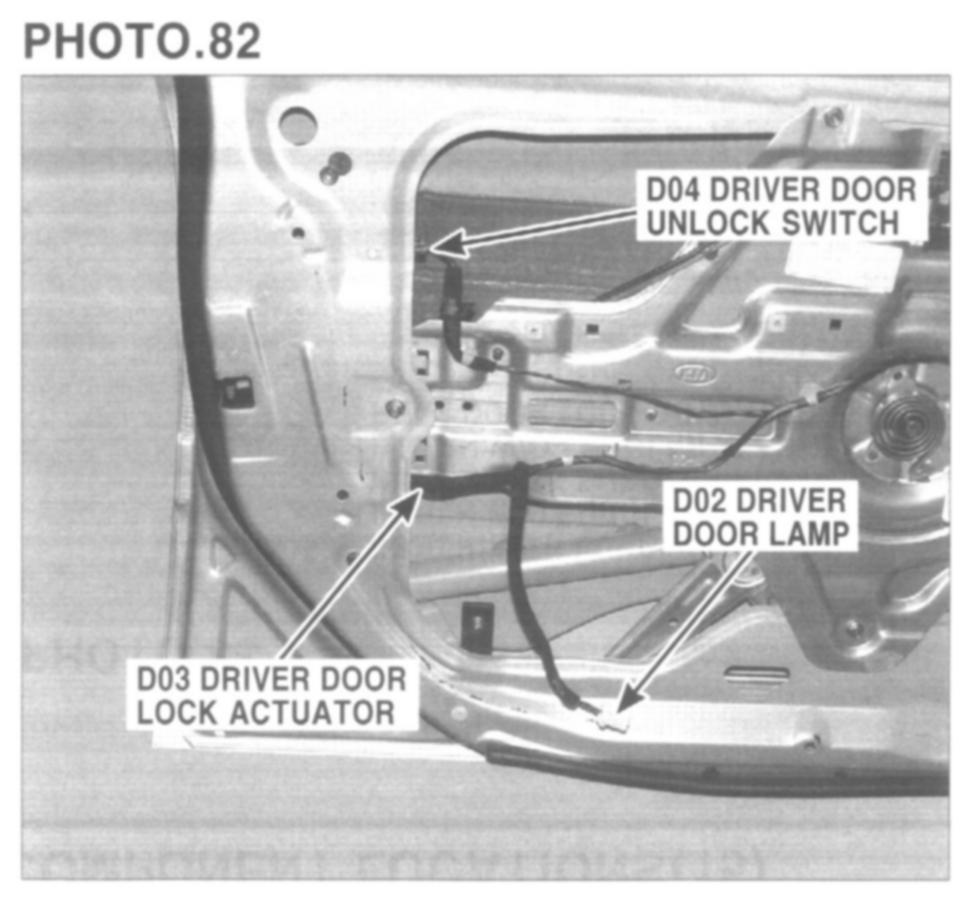

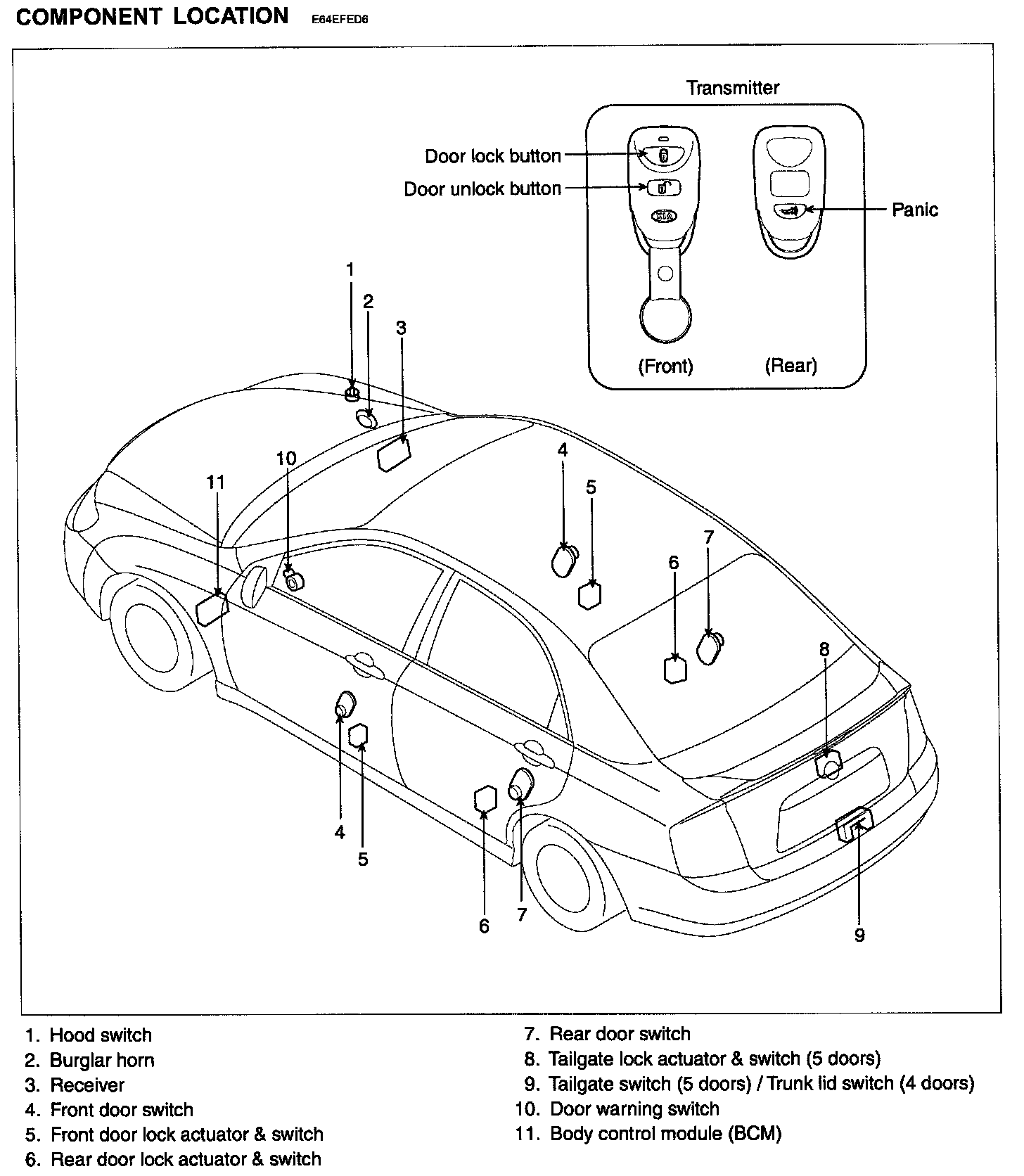

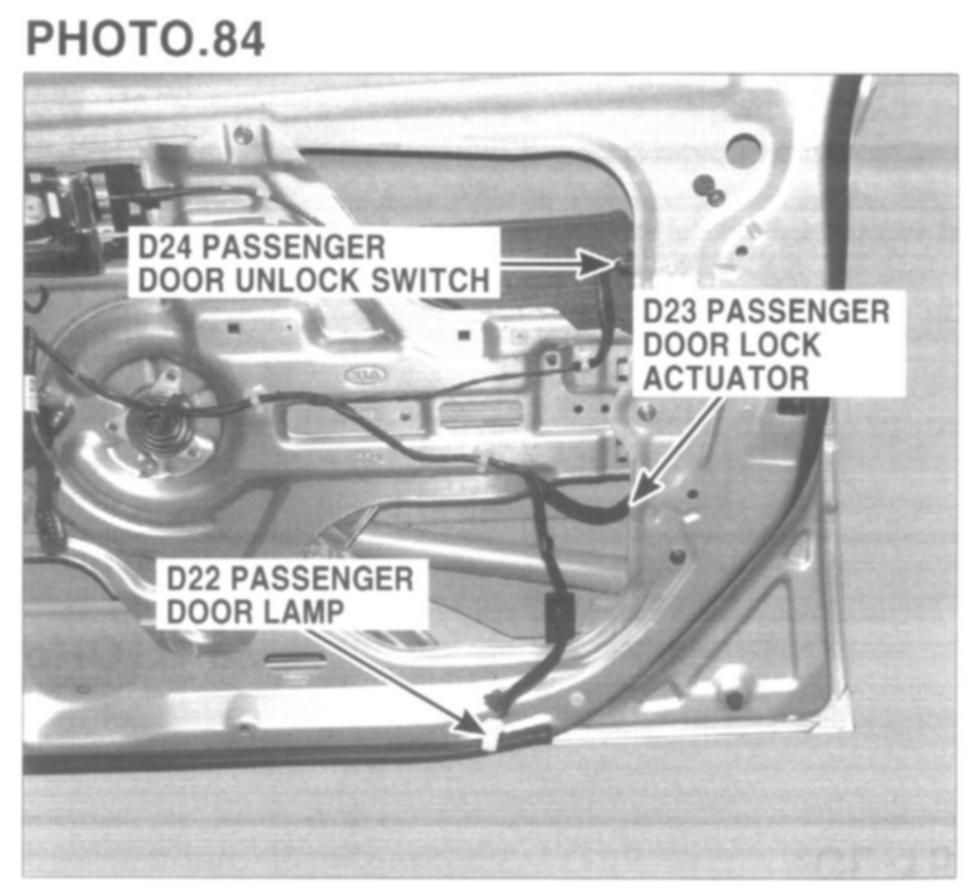

Keyless Entry and Burglar Alarm System - Component Location:
