Home >> Kia >> 2007 >> Spectra L4-2.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Idle Speed/Throttle Actuator - Electronic >> Specifications

Idle Speed/Throttle Actuator - Electronic: Specifications





SPECIFICATIONS

ACTUATORS

IDLE SPEED CONTROL ACTUATOR (ISCA)
- Type: Double coil type

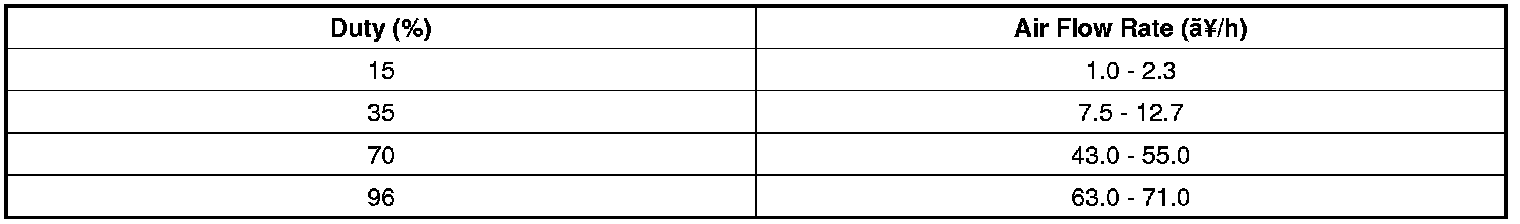

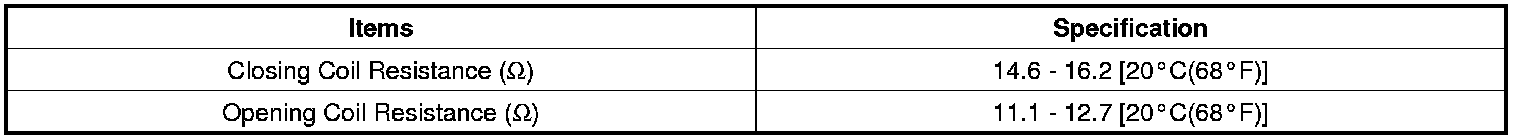

- Specification
