Horn: Service and Repair
REMOVAL
1.
Remove the upper tray after opening the hood .
2.

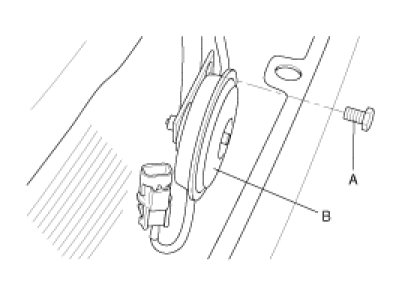

Remove the bolt (A) and disconnect the
horn
connector (B), then remove the horn.
3.
Installation is the reverse of removal.
