Speedometer Head: Testing and Inspection

INSPECTION

1. Adjust the pressure of the tires to the specified level.

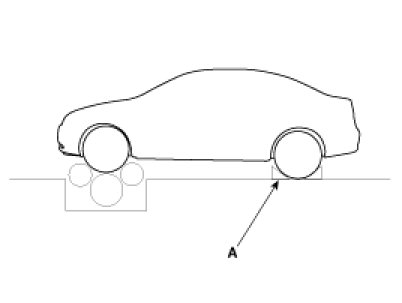

2. Drive the vehicle onto a speedometer tester. Use wheel chocks(A) as appropriate.




3. Check if the speedometer indicator range is within the standard values.

CAUTION:
Do not operate the clutch suddenly or increase/ decrease speed rapidly while testing.

NOTE:
Tire wear and tire over or under inflation will increase the indication error.

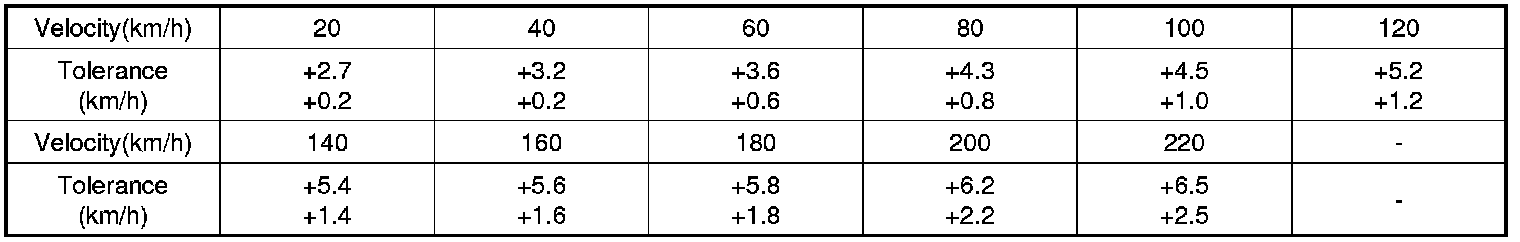

[KM/H-CANADA]

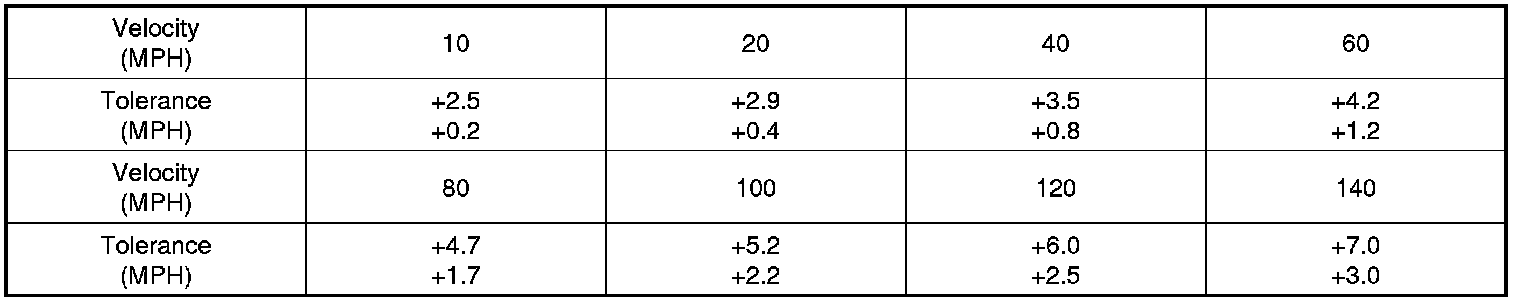

[MPH-USA]
