Repair Procedures

REMOVAL

1. Disconnect the negative (-) battery terminal.

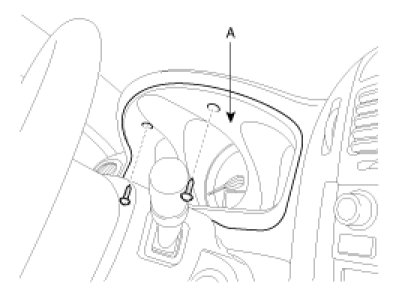

2. Remove the cluster facia panel (A) after loosening 2 screws.

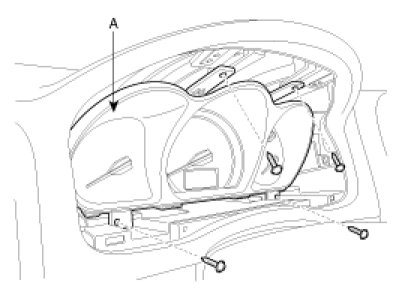

3. Pull out the cluster (A) from the housing after removing 4 screws.

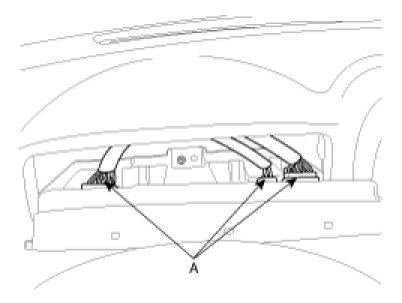

4. Disconnect the cluster connecters (A) and then remove the cluster.






INSTALLATION

1. Connect the cluster connector.
2. Install the cluster assembly.
3. Install the cluster facia panel.
