Mode Control Actuator

INSPECTION

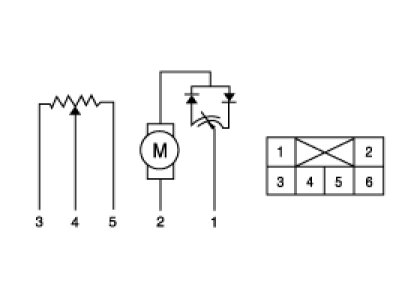

1. Verify that the mode actuator operates to the vent position when connecting 12V to the terminal 1 and grounding terminal 2.
2. Verify that the mode actuator operates to the defrost position when connecting in the reverse.

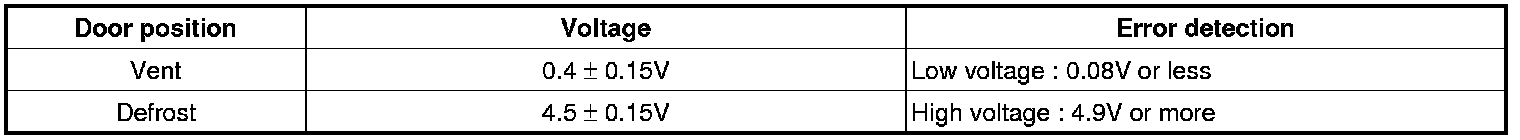

3. Check the voltage between terminals 3 and 4.





It will feed back current position of actuator to controls.
