Repair Procedures

REMOVAL

1. Remove the engine cover.




2. Disconnect the front oxygen sensor connector.
3. Remove the front muffler(A).

Tightening torque :
Nut (B) : 39.2 - 58.8N-m (4.0 - 6.0kg-m, 28.9 - 43.4lb-ft)
Bolt (C) : 29.4 - 39.2N-m (3.0 - 4.0kg-m, 21.7 - 28.9lb-ft)

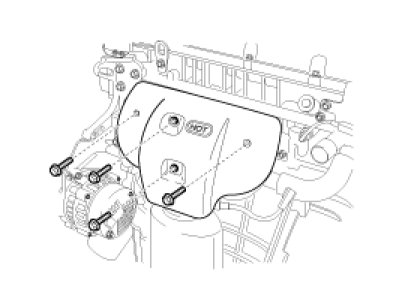

4. Remove the heat protector.

Tightening torque :
16.7 - 21.6N-m (1.7 - 2.2kg-m, 12.3 - 15.9lb-ft)





5. Remove the exhaust manifold and catalytic converter assembly.

Tightening torque :
42.2 - 53.9N-m (4.3 - 5.5kg-m, 31.1 - 39.8lb-ft)





6. Installation is in the reverse order of removal
