Home >> Kia >> 2007 >> Spectra L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> ABS(Anti-Lock Brake System)

ABS(Anti-Lock Brake System)

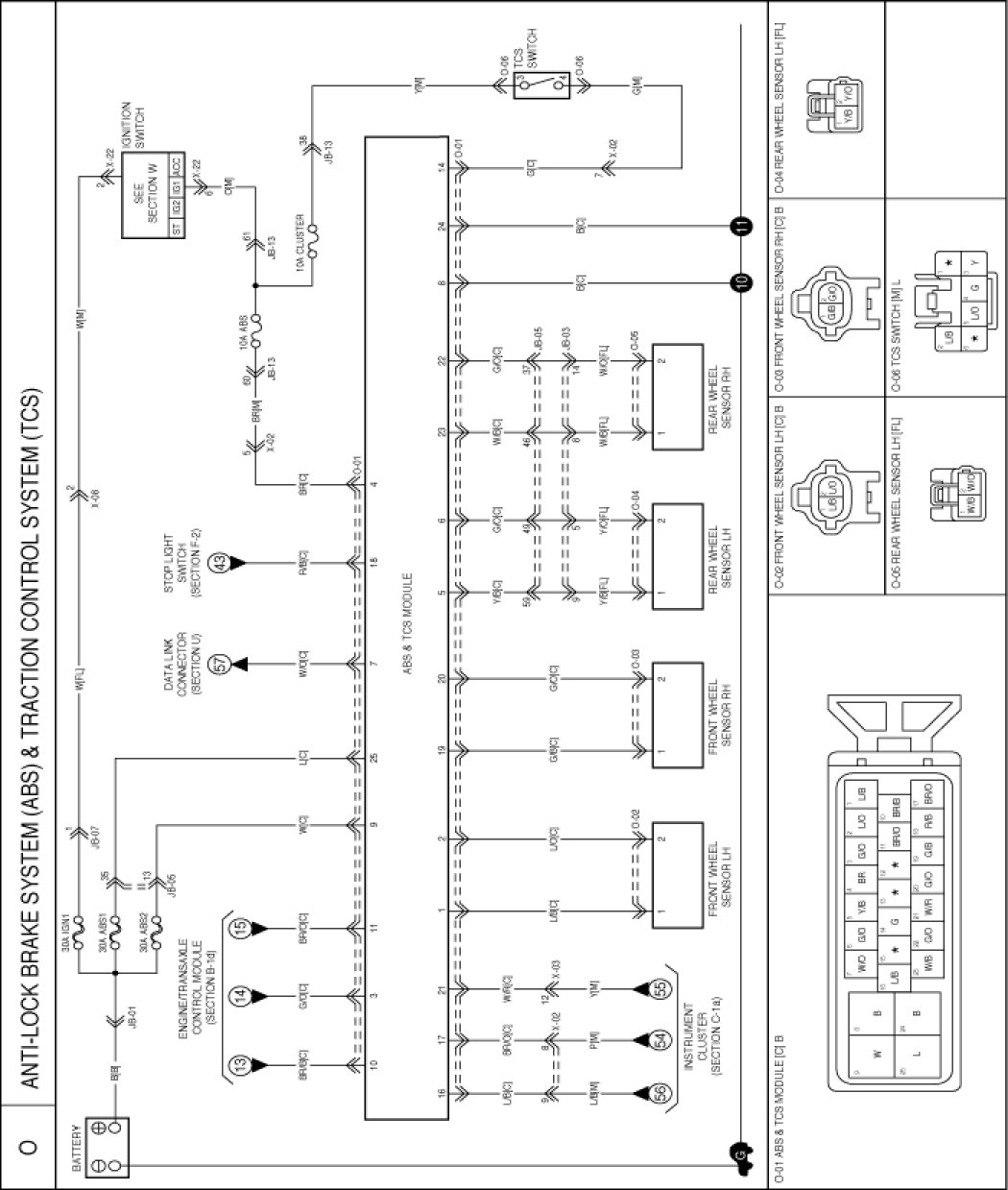

CIRCUIT DIAGRAM
