Disassembly

DISASSEMBLY

1. Remove the reservoir cap and drain the brake fluid into a suitable container.
2. Remove the fluid level sensor.

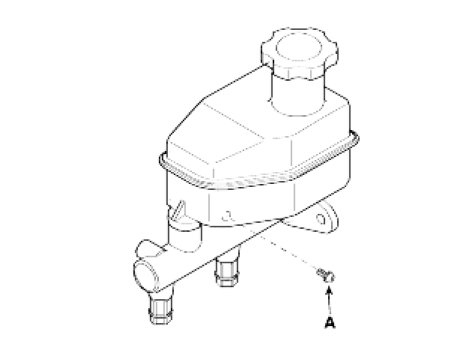

3. Remove the reservoir from the master cylinder after mounting screw (A).

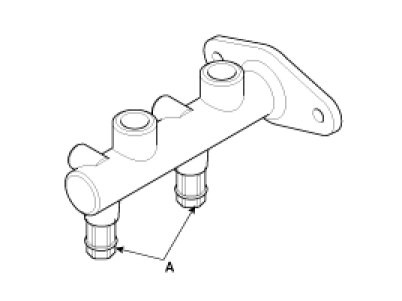

4. Remove the proportioning valves (A) - Conventional brake system.

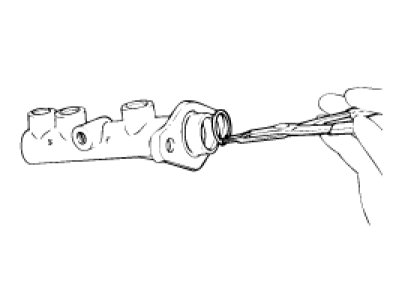

5. Remove the retainer ring by using the snap ring pliers.

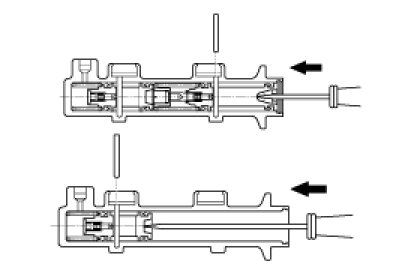

6. Remove the pin with the primary piston pushed completely using a screwdriver. Remove the primary piston assembly.
7. Remove the pin with the secondary piston pushed completely using a screwdriver. Remove the secondary piston assembly.





NOTE:
Do not disassemble the primary and secondary piston assembly.
