Home >> Kia >> 2007 >> Spectra L4-2.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> When Ignition Key Is Turned on (Engine Off), the ABS Warning Lamp Does Not Light Up

When Ignition Key Is Turned on (Engine Off), the ABS Warning Lamp Does Not Light Up





Inspection procedure for trouble symptoms

WHEN IGNITION KEY IS TURNED ON (ENGINE OFF), THE ABS WARNING LAMP DOES NOT LIGHT UP

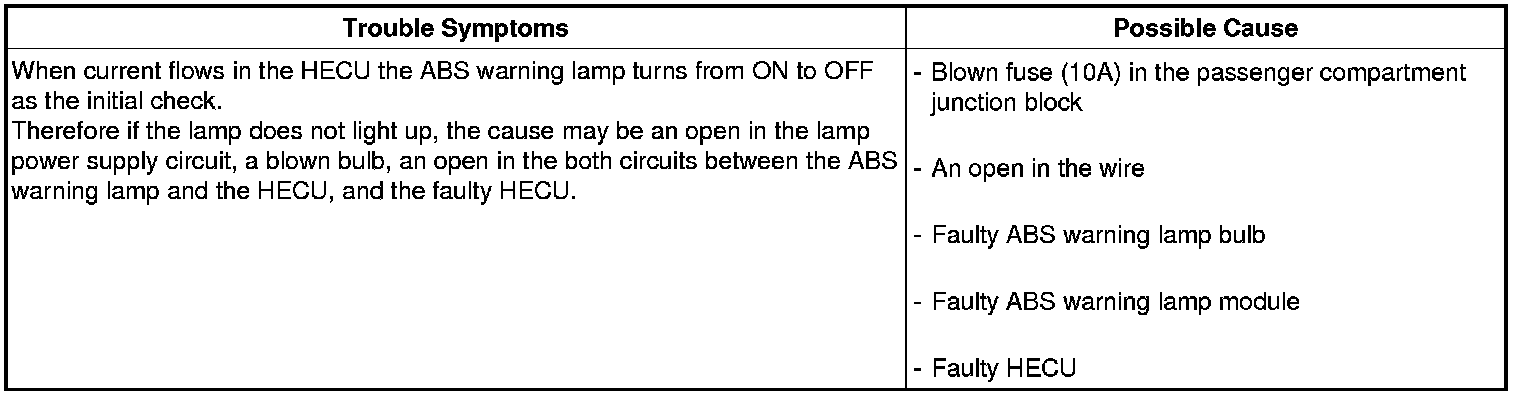

DETECTING CONDITION

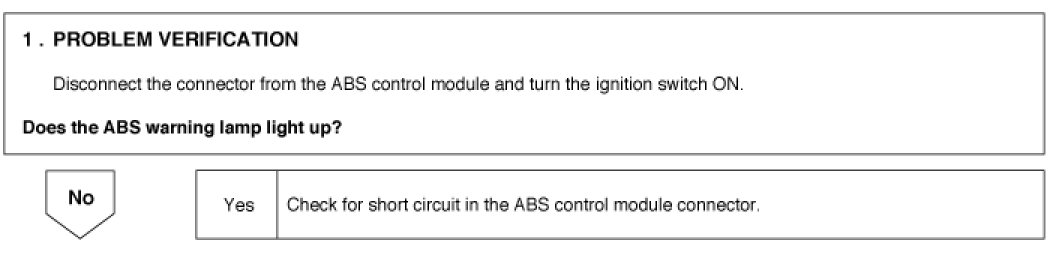

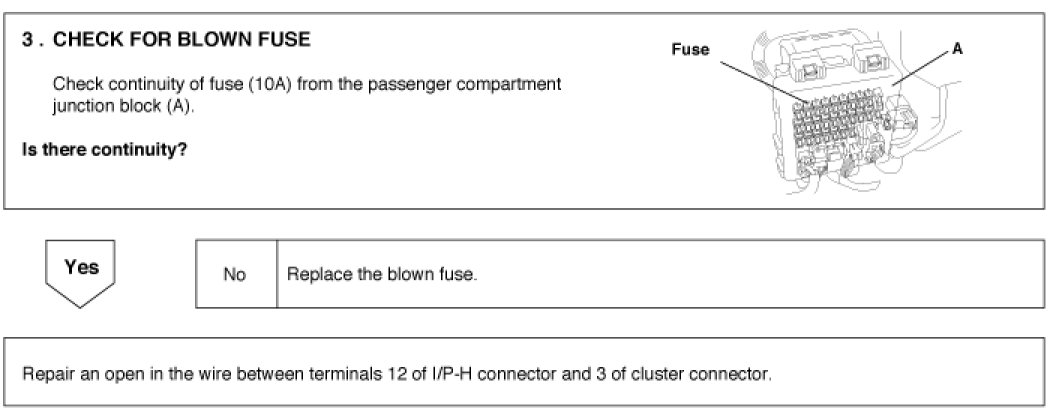

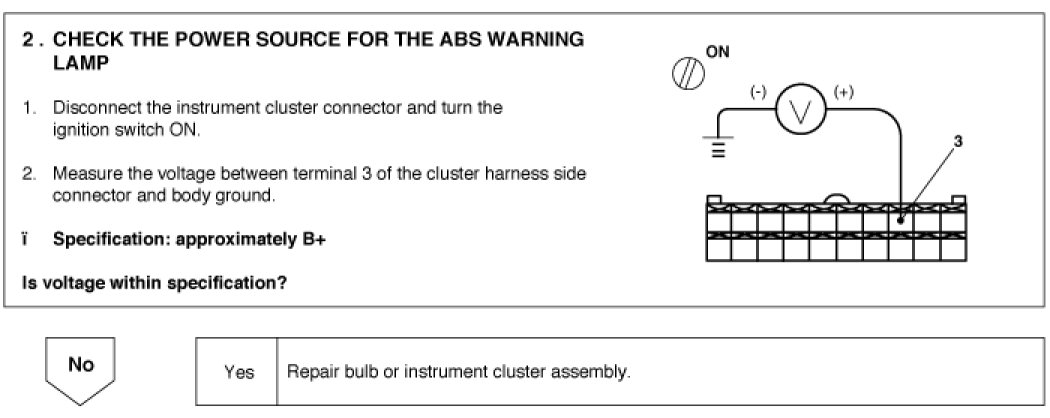

INSPECTION PROCEDURES
