Home >> Kia >> 2007 >> Spectra L4-2.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> ABS Does Not Operate

ABS Does Not Operate





Inspection procedure for trouble symptoms

ABS DOES NOT OPERATE
DETECTING CONDITION

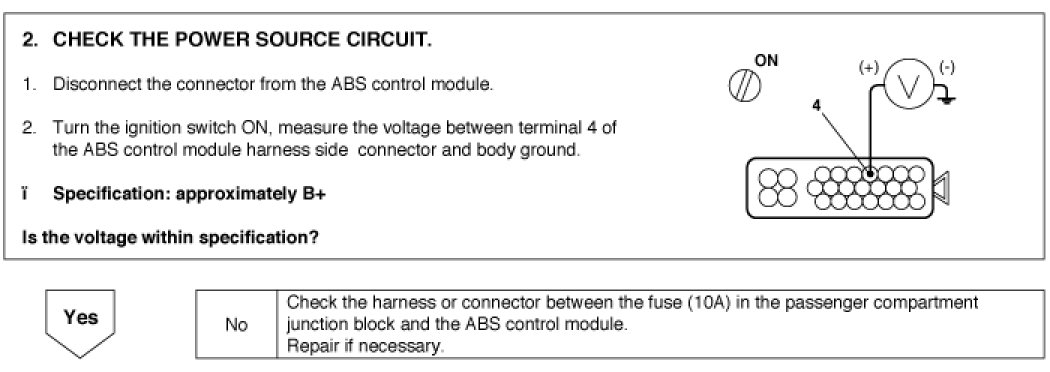

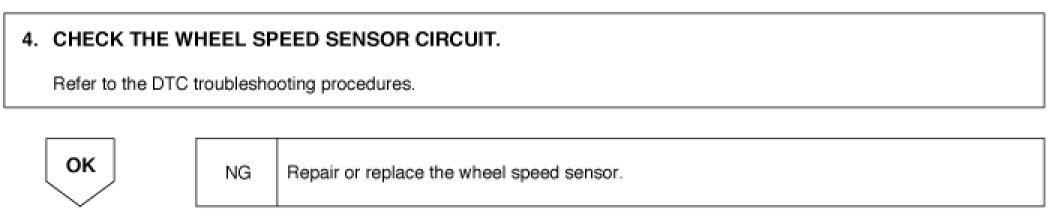

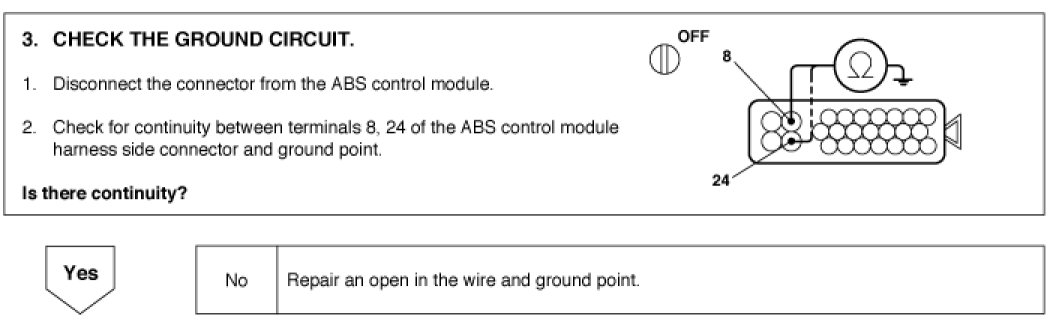

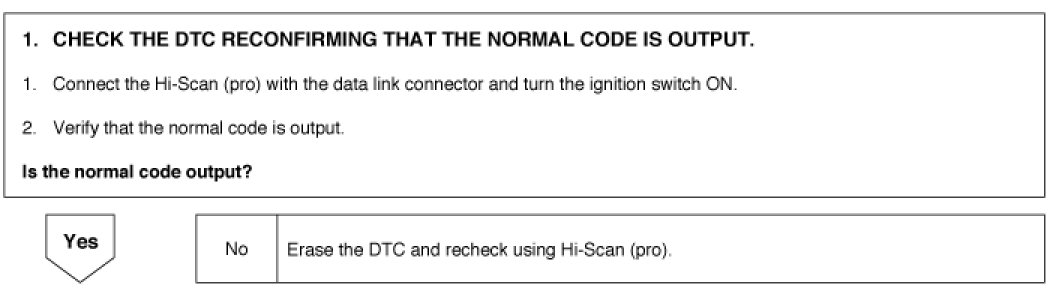

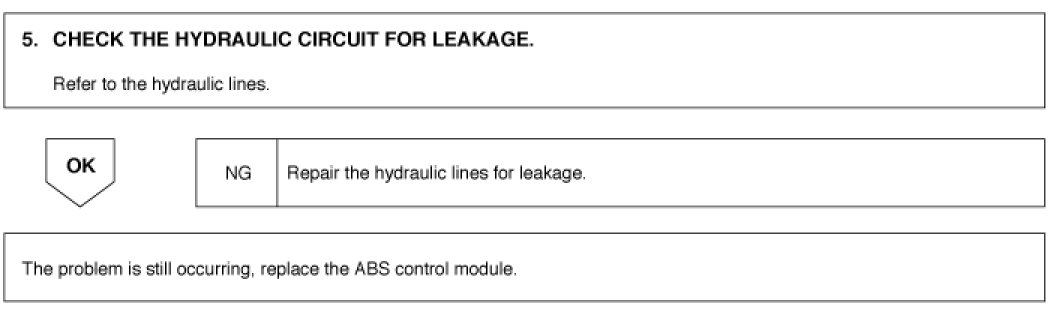

INSPECTION PROCEDURES
