Home >> Kia >> 2007 >> Spectra L4-2.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> HECU Connector Input/Output Specification (ABS & TCS)

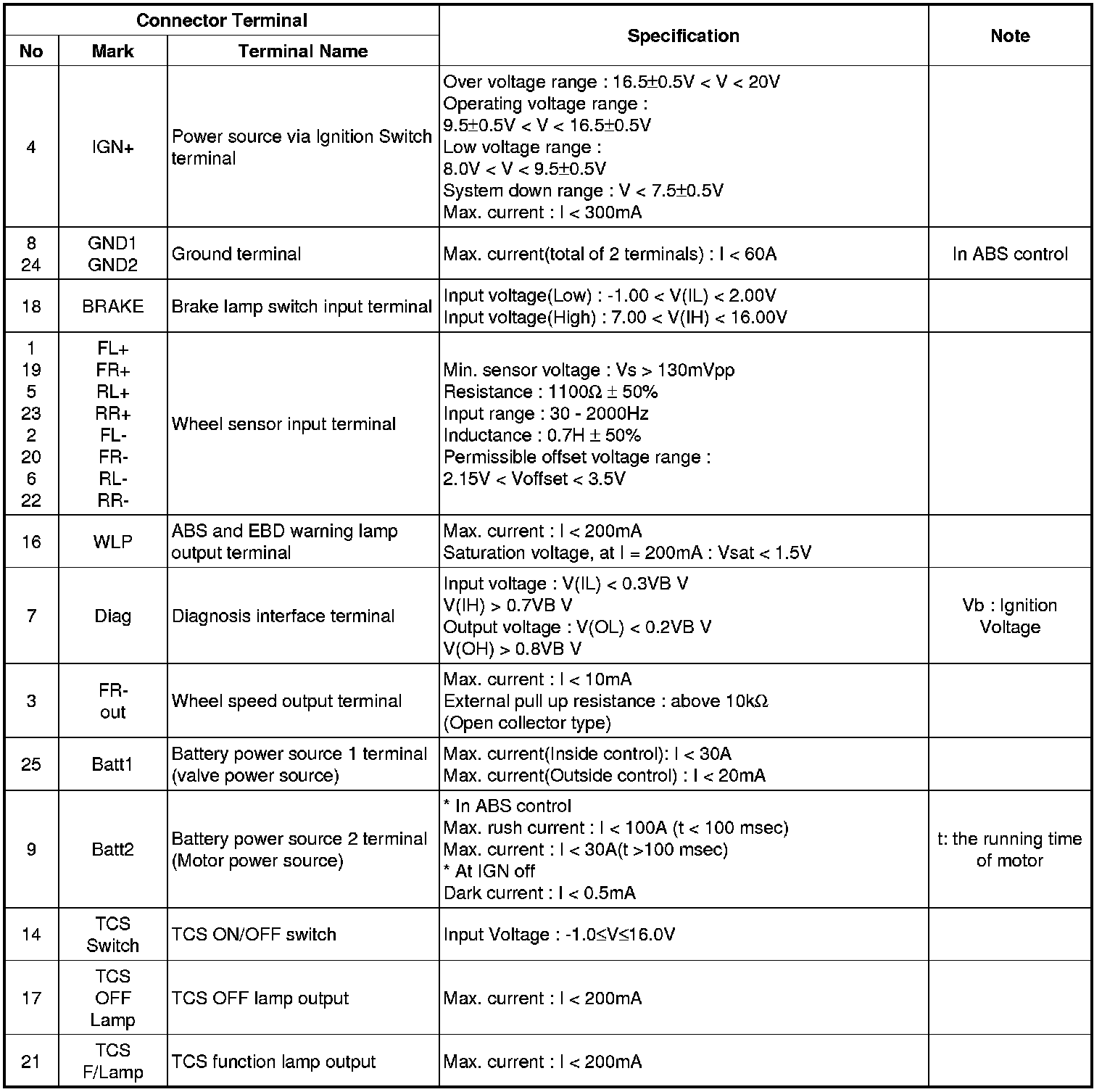

HECU Connector Input/Output Specification (ABS & TCS)





HECU INPUT/OUTPUT SPECIFICATION (ABS&TCS)
